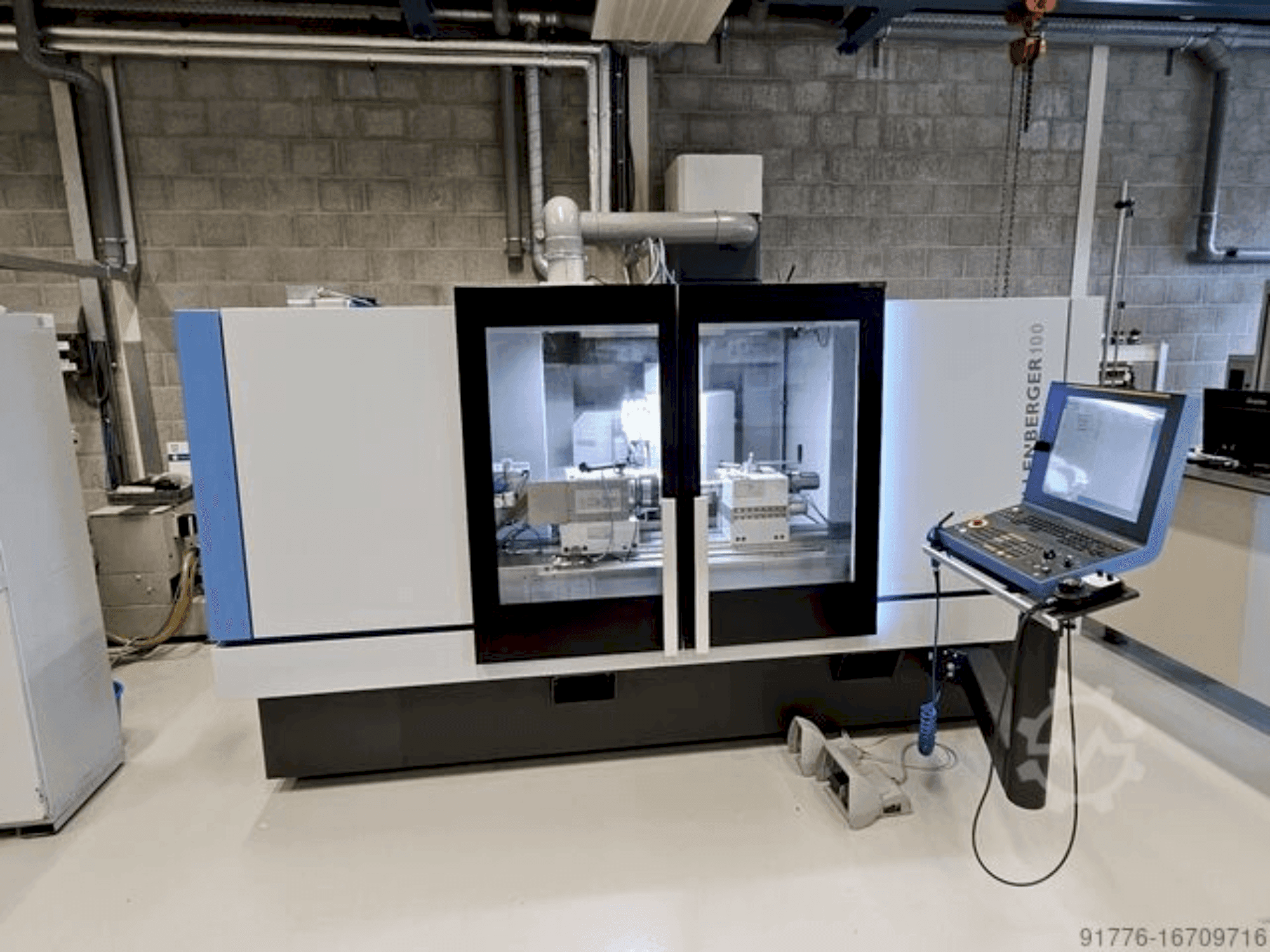

This cylindrical grinding machine was manufactured in 2020. It features a robust KELLENBERGER 100 design with a CNC Control Fanuc 31i-B, advanced graphic-interface, and a wheelhead UR-RS 1-5-6. It supports non-cylindrical contour grinding and has a grinding wheel flange of Ø 203.2 mm. Consider the opportunity to buy this KELLENBERGER 100 cylindrical grinding machine. For more information about this machine, please reach out to us.
Overview
- brand: KELLENBERGER
- year: 2020
- MODEL: 100
- production hours: 1700
- application type: Grinding
- Location: Netherlands
- machine type: Cylindrical Grinding Machine
- control unit brand: FANUC
Technical Information - KELLENBERGER 100
Control Unit
- Control Brand: FANUC
- Control Model: 31i
Technical Specification
- Spindle Speed: 90000 RPM
Additional Information
Additional equipment
- Profibus Interface for Handling System
- Electrical Driving Unit for Automatic Sliding Door
- Two-Stage Foot Switch for Permission
Machine Benefits
Qualitative Machine Benefits
- Kellenberger advanced graphic-interface
- Module for non-cylindrical contour grinding
- Numerically controlled b-axis direct drive
- Wheelheads and equipment: ur-rs 1-5-6 wheelhead
- Reinforced workhead direct drive 150 with c-axis
- Coolant supply through workhead spindle
- Dressing device on upper table
- Form dresser for internal and external grinding
- 8-m multi-grain diamond (free cut)
- Coolant filter units: paper band filter 480 litres / spb 5 full machine enclosure for emulsion prep for mist collector
Technical Machine Benefits
- Grinding wheel flange: diameter 203. 2 mm, cone 63
- Oil-air lubrication
- Swivelling diamond holder: diameter 9. 525 mm
- Single-point profiling diamond: diameter 9. 525 mm
- Form roll Ø100/120x17x40h5 x=5 w=2/2. 5
- Tactile measuring head on wheelhead
- Wheel and workpiece contact sensor on workhead 150
- Measuring control units: movomatic esz 400 or marposs p7 me
- Fluid contact sensor with magnetic base
- Balancing units for two external grinding wheels
Extra Information
Machine still under power Software: Module for Out of Round Grinding X/C Interpolation RED Solution - HMI GRAPHIC Guide for 2D Component Drawings and DXF Data ICON Guide for ISO-Based Program Design APP Out Of - Round for Non-Circular Contours (Rectangle, Polygon, etc.) Tailstock 150 with Pneumatic Sleeve Retraction Sleeve Taper: Morse 4 Sleeve Stroke: 50 mm Peak Force Adjustable 200-700 N Max. Loading Capacity: 150 kg Pneumatic Assistance and Micro-Adjustment for Fine Correction Clamping Devices: Quickchange System from Erowa Heyn 3-Jaw Chuck Collet Adapter Magnetholder
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
