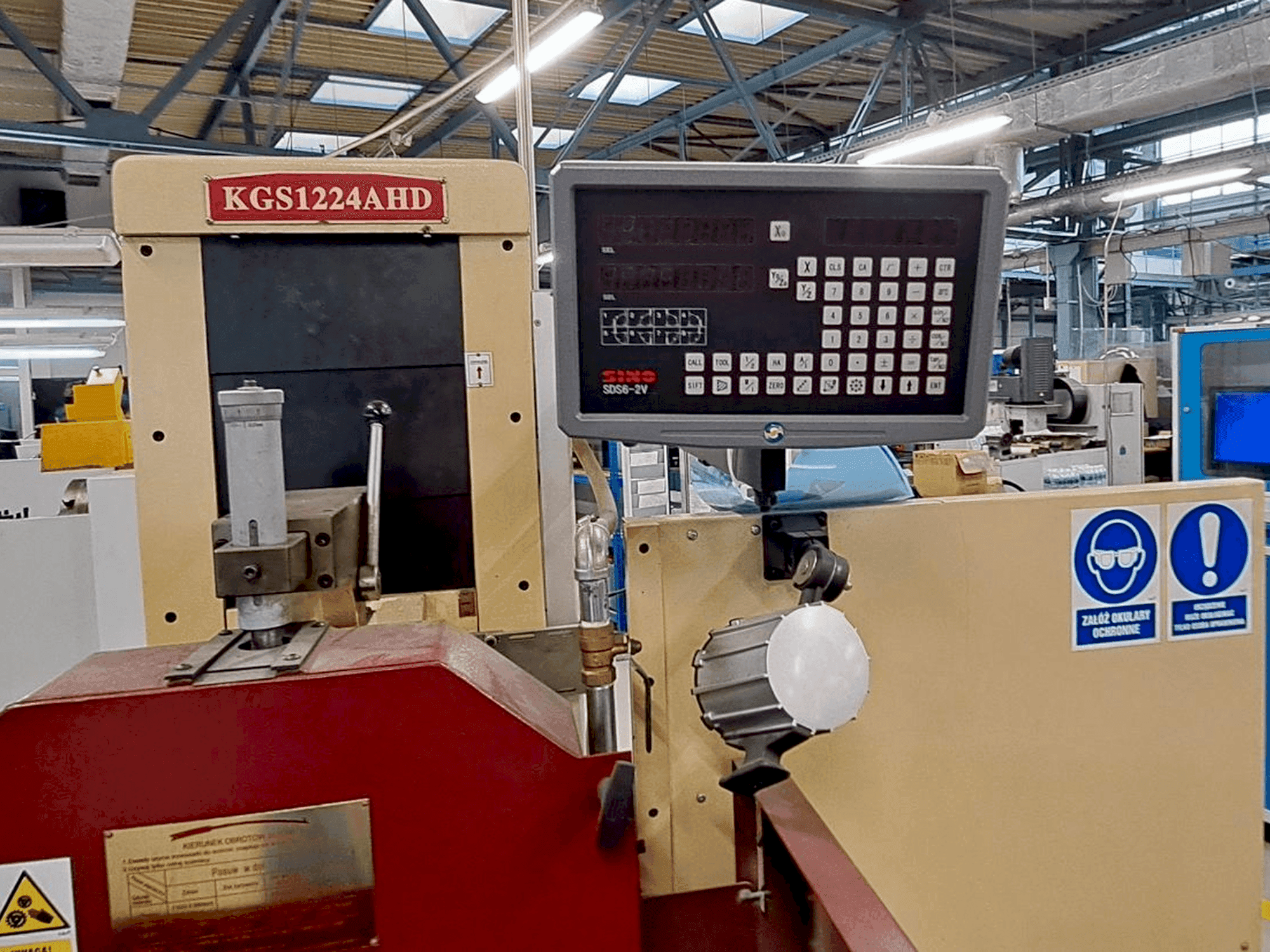

This Kent KGS 1224 AHD surface grinding machine was manufactured in 2014. It features a table size of 300 x 600 mm, with a maximum load capacity of 420 kg. The grinding wheel size is 355 x 40 x 127 mm, and it operates with a main motor power of 4 kW. Ideal for precision grinding, the Kent KGS 1224 AHD machine we have for sale is robust and efficient. Contact us for further details regarding this surface grinding machine.
Overview
- brand: Kent
- year: 2014
- MODEL: KGS 1224 AHD
- application type: Grinding
- Location: Poland
- machine type: Surface Grinding Machine
- availability: Immediately
Technical Information - Kent KGS 1224 AHD
General Data
- Measurements width: 2500 mm
- Measurements depth: 2600 mm
- Machine weight: 1910 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 1450 rpm 1/MIN
- Spindle motor power: 4 kW
Movement
- X-AXIS Movement: 660 mm
- Y-AXIS Movement: 370 mm
Additional Equipment
- - Table size: 300 x 600 mm
- - Distance table-spindle: 540 mm
- - Maximum table load: 420 kg
- - Table speed: 5 - 25 m/min
- - Rapid traverse speed: 790 mm/min
- - Grinding wheel size: 355 x 40 x 127 mm
Additional Information
- Technical Machine Benefits:
- - Floor space occupied: 2600 x 2500 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
