Kitamura - HX500 iaIT-MIL-KIT-2008-00001

Name: Kitamura HX500 ia
Brand: Kitamura
SKU: IT-MIL-KIT-2008-00001
Price: 58000 EUR
Availability: InStock

58,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Kitamura HX500 ia For Sale | gindumac.com

Show in original language

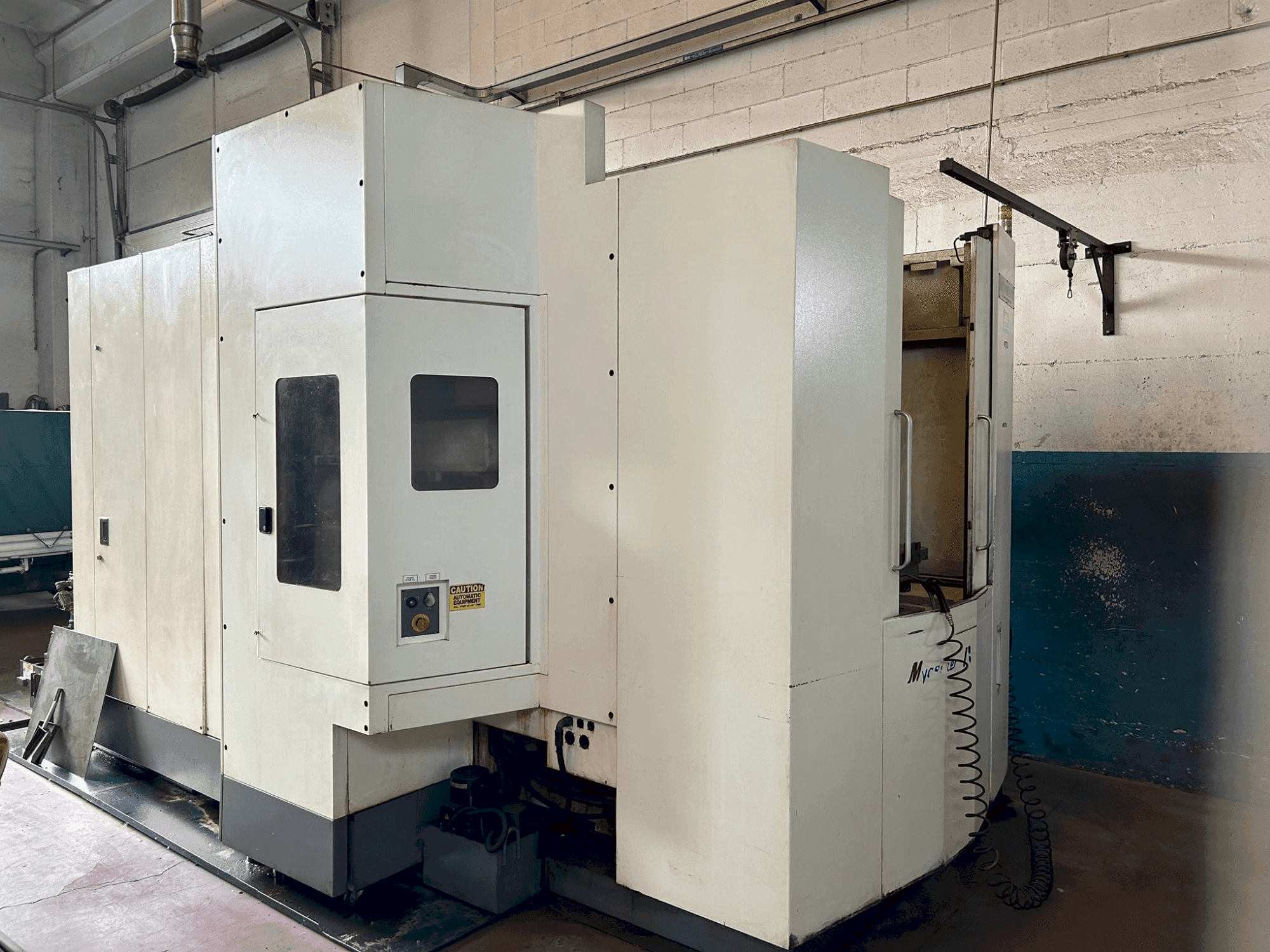

This Kitamura HX500 ia was manufactured in 2008. It features X-Y-Z Axis Travels of 735, 610, and 610 mm, a table size of 500x500 mm, and a spindle speed of 13,000 rpm. The machine includes a BT40 spindle mount, a 50-position tool changer, and a FANUC 16 i MB control system with a 10.4" color LCD. Consider the opportunity to buy this Kitamura HX500 ia horizontal machining centre. Contact us for more information about this machine.

Overview

brand: Kitamura
year: 2008
MODEL: HX500 ia
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Kitamura HX500 ia

Control Unit

Brand: FANUC
Model: 16 i MB

Movement

X-AXIS Movement: 735 MM
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 610 MM
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 610 MM
Z-AXIS Rapid traverse: 50 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of machine (lxwxh): 2600x5500 / weight (kg): 17500
- - Controller: rigid tapping / remote handwheel / internal work light / 3-color machine status light
- - Spindle mount: bt40 / spindle speed: 13000 rpm / spindle power: 18. 5 kw / external spindle coolant system / oil spindle cooling
- - Permitted table weight: 600 kg
- - Table size: 2x 500x500
- - Tool changer: 50 random positions
- - Water gun - air gun / internal washdown / 20 bar high pressure with recirculation tank / dual deck chip conveyor / drilled and cooled screws
- - Ce mark/ transformer
Qualitative Machine Benefits:
- - This machine comes with extensive capabilities and equipment suitable for various machining operations, ensuring efficient and precise performance. With its immediate availability, it's ready for deployment in your production line.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
