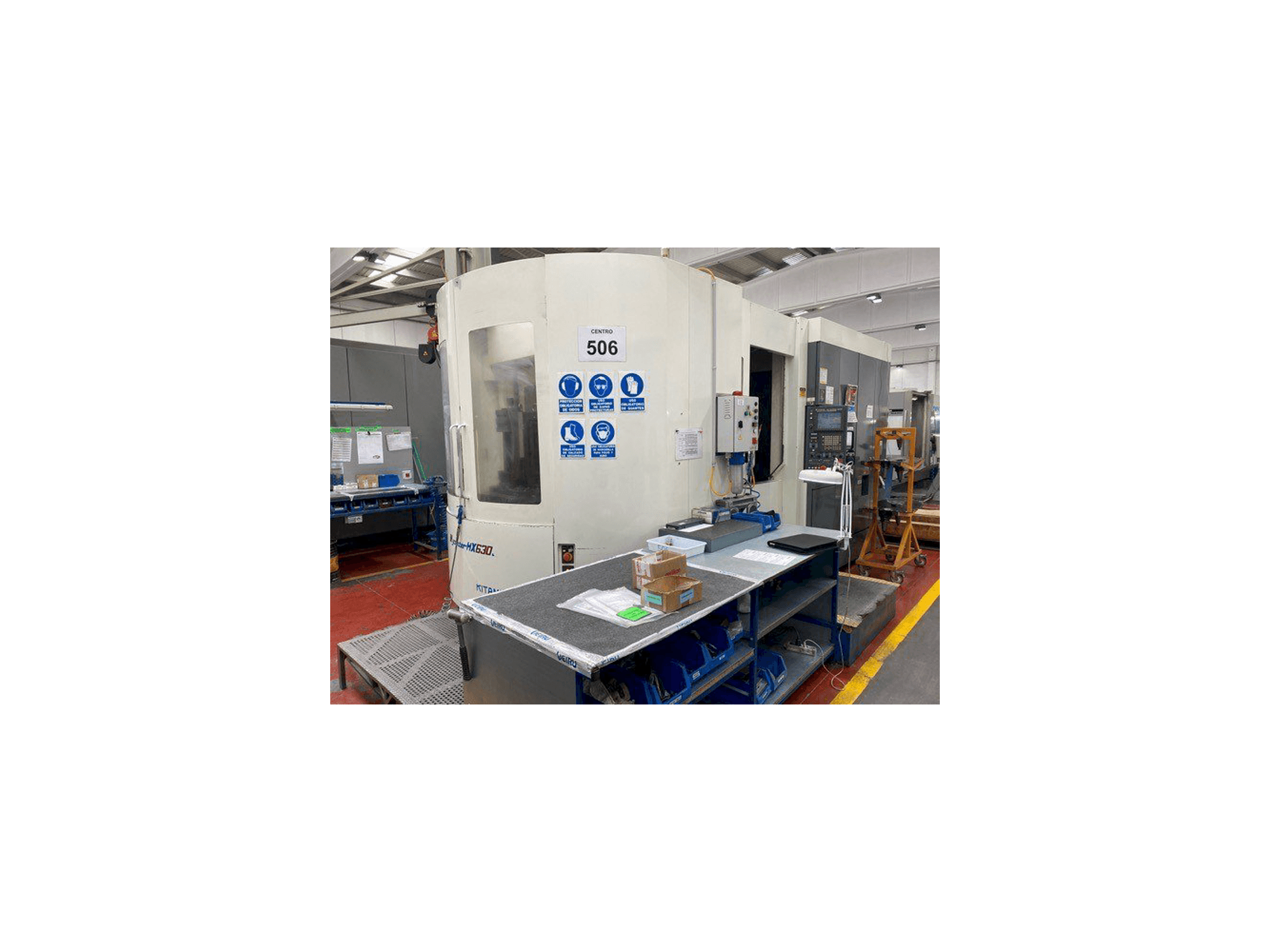

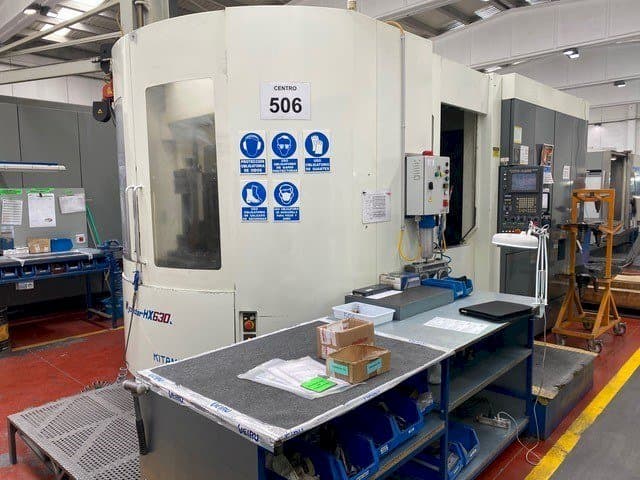

Front view of Kitamura Mycenter HX630L machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Kitamura Mycenter HX630L

Photo Gallery

Kitamura - Mycenter HX630LES-MIL-KIT-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Kitamura Mycenter HX630L Horizontal Machining Center

Show in original language

This Kitamura Mycenter HX630L Horizontal Machining Center was made in the year 2004. It is equipped with a Fanuc Series 16 iMB control unit. It has 12881 of cutting hours. This 4 axis machine incorporates a table of 630 x 630 mm and can perform with a spindle speed up to 12000 rpm. It includes 2 pallets, and present good working conditions.

Overview

brand: Kitamura
year: 2004
MODEL: Mycenter HX630L
production hours: 12881
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Kitamura Mycenter HX630L

General Data

Measurements width: 8317 mm
Measurements depth: 3869 mm
Measurements height: 3499 mm
Machine weight: 21000 kg

Control Unit

Model: Series 16 iMB
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 820 mm

Workpiece

Workpiece drm: 1100 mm
Workpiece weight: 1200 kg

Table

Outer length: 630 mm
Outer width: 630 mm

Tools

Slots in storage: 50
Type of tool holder: BBT 50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 pallets
- - Manual guide interactive programming
- - Rs232, ethernet, pcmcia slots
- - 4th continuous axis 360 000 pos
- - 2 ranges gearbox
- - Double ballscrews
- - Lubricating tank with pumps
- - Coolant through spindle 50 bars
- - Electrical transformer
Qualitative Machine Benefits:
- - Good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
