➤ Used MORI SEIKI NH-5000 40 For Sale | gindumac.com

Show in original language

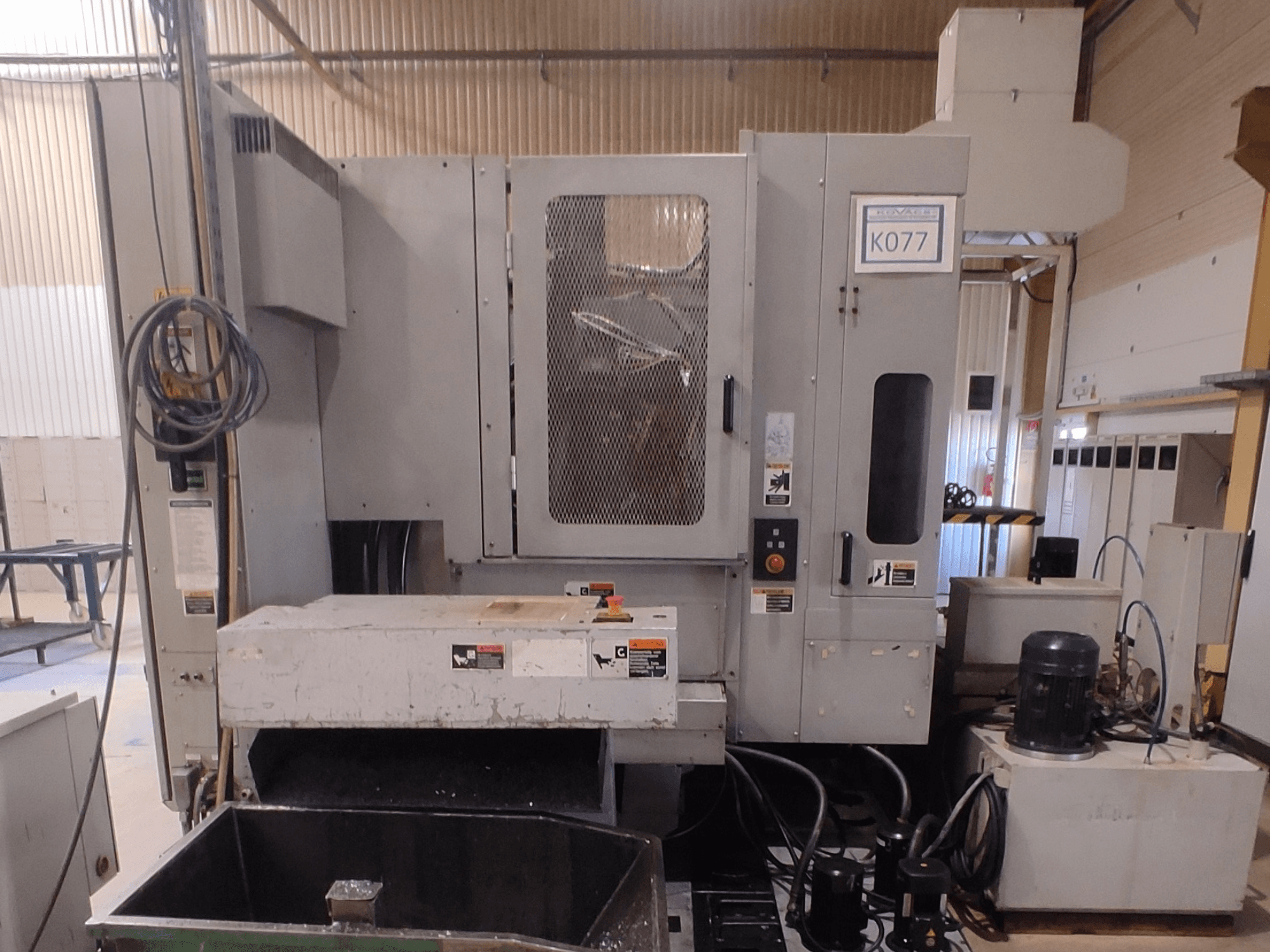

This 4-axis MORI SEIKI NH-5000 40 was manufactured in 2003, featuring a robust horizontal machining centre with a spindle speed up to 20,000 rpm and a power range of 22-30 kW. It includes a versatile tool magazine with a capacity up to 180 tools and a dual-pallet automatic changer to enhance productivity. Pallet size is 500 × 500 mm, supporting a maximum workpiece height of 1,000 mm. Consider the opportunity to buy this MORI SEIKI NH-5000 40 horizontal machining centre. Contact us for more information.

Overview

brand: MORI SEIKI
year: 2003
MODEL: NH-5000 40
application type: Milling
Location: Hungary
machine type: Horizontal Machining Centre

Technical Information - MORI SEIKI NH-5000 40

Dimensions

Machine Weight: 13000 kg

Movement

Number of Axes: 4
X-axis Travel: 730 mm
Y-axis Travel: 730 mm
Z-axis Travel: 880 mm

Technical Specification

Spindle Power: 30 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40

Additional Information

Spindle: BT40 taper; standard speed 12,000 rpm; optional speeds 14,000 / 20,000 rpm; power 22–30 kW (configuration-dependent)
Tool magazine: 40 / 60 / 120 / 180 tools; max tool diameter (adjacent) ≈ 75 mm; max tool length ≈ 400 mm
Pallet: size 500 × 500 mm; max workpiece diameter ≈ 800 mm; max workpiece height ≈ 1,000 mm; max pallet load 400–500 kg; APC: 2‑pallet automatic changer
Feed rates: rapid traverse X/Y/Z 60 m/min; cutting feed 30 m/min
Accuracy: positioning ±0.003 mm; repeatability ±0.002 mm
Weight and dimensions: machine weight 11,000–13,000 kg; approximate footprint 4.0 × 6.0 m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
