KNUTH DL E Heavy 500/1500 Lathe

Show in original language

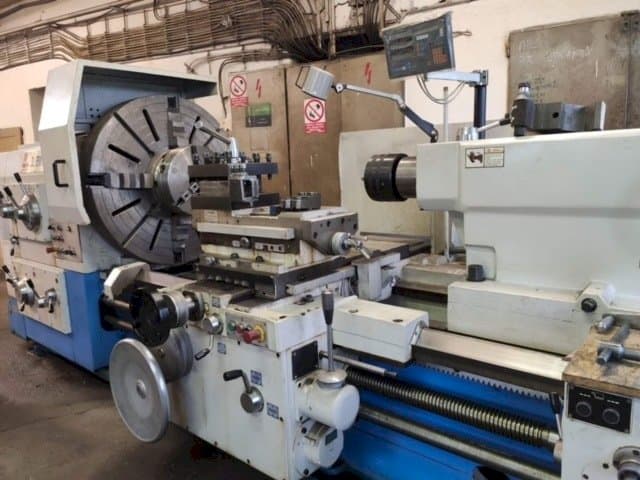

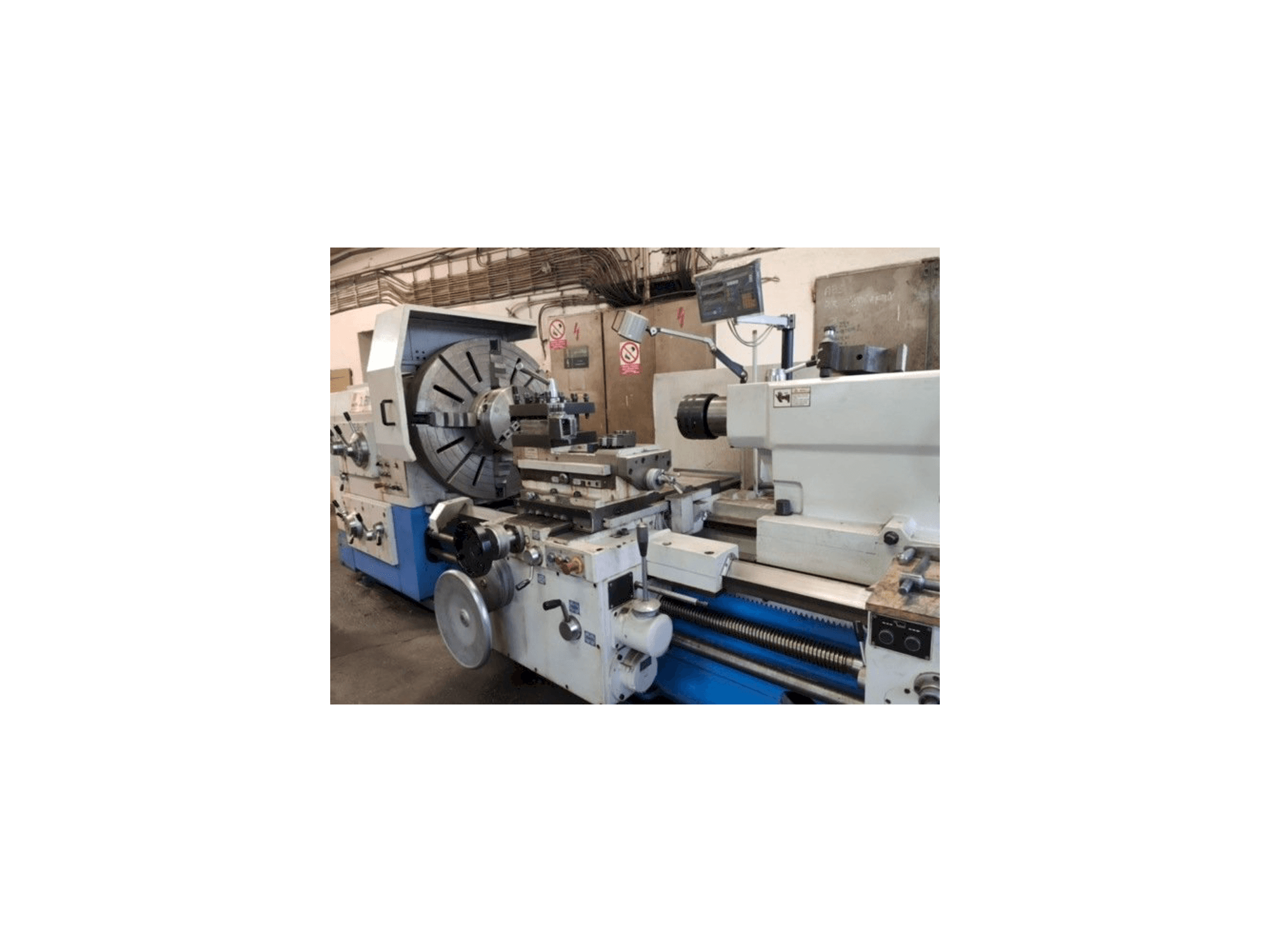

This KNUTH DL E Heavy 500/1500 Lathe was manufactured in the year 2011 in Germany. This 2 axis machine operates with a spindle speed range up to 315 rpm, max turning length 1500 mm, and a spindle bore 130 mm. It presents very good working conditions, low working hours.

Overview

brand: KNUTH
year: 2011
MODEL: DL E Heavy 500/1500
application type: Turning
Location: Czech Republic
machine type: Lathe
availability: Sold
GINDUMAC ID: CZ-TUR-KNU-2011-00001

Technical Information

General Data

Measurements width: 4600 mm
Measurements depth: 1850 mm
Measurements height: 1790 mm
Machine weight: 9350 kg

Main drive

Number of spindles: 1
Spindle speed range: 315 1/MIN

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 1300 mm

Workpiece

Workpiece weight: 6000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning Ø over bed 1000 mm
- - Max. Turning Ø over cross-slide 650 mm
- - Max. Turning length 1500 mm
- - Spindle bore 130 mm
- - Main motor power 25 kw
- - Spindle taper: iso a2-15
- - Tailstock stroke 300 mm
- - Tailstock quill diameter 160 mm, taper metric 80
- - Digital read-out
Qualitative Machine Benefits:
- - Very good condition, low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
