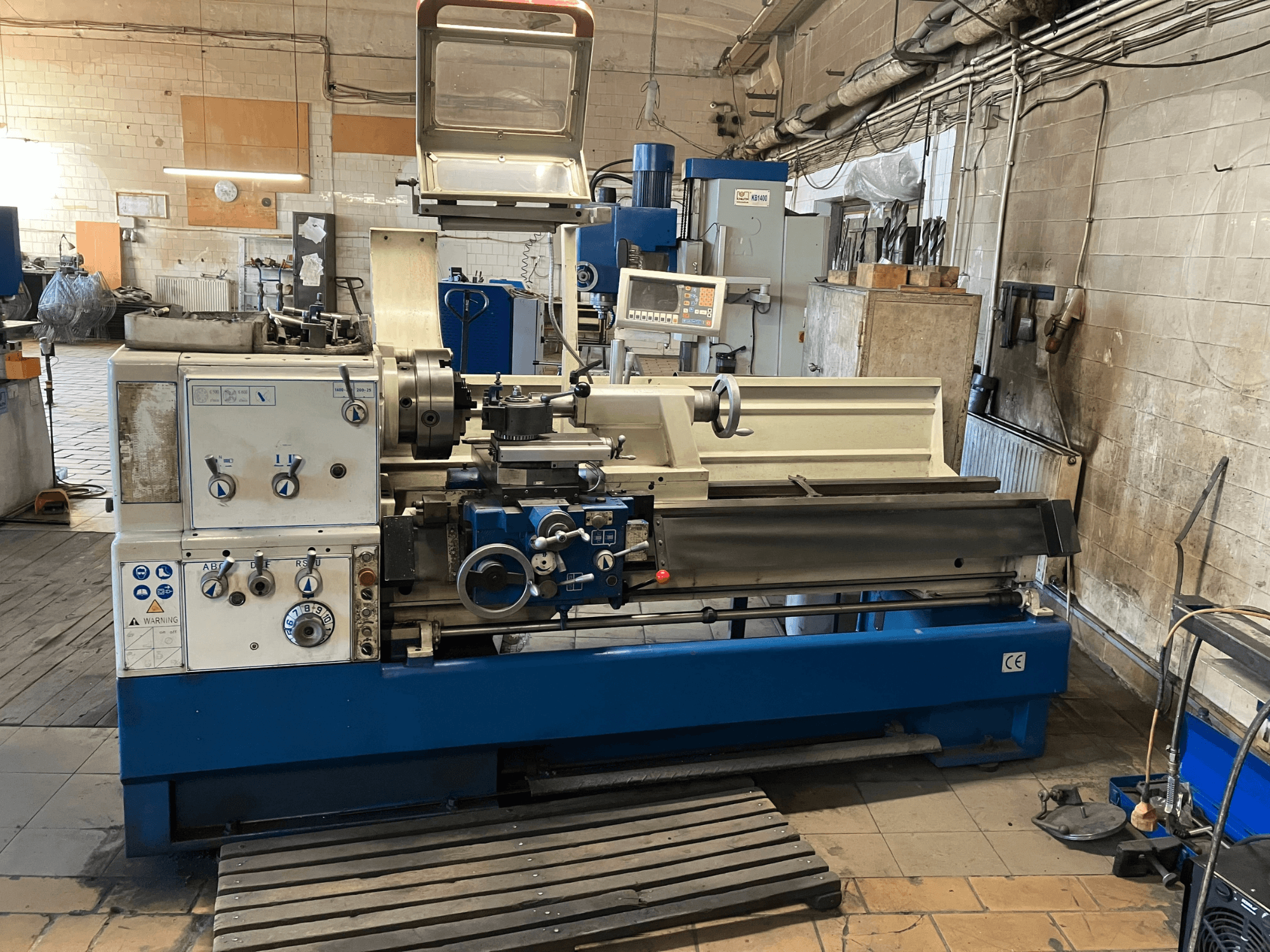

KNUTH - Turnado 280/1500RO-TUR-KNU-2018-00001

Technical specifications

• Distance between centers: 1,420 mm

• Swing over bed: 560 mm

• Swing over cross slide: 360 mm

• Swing in gap: 790 mm

• Gap length: 180 mm

• Bed width: 350 mm

Travels

• Compound slide swivel: ±52°

Spindle

• Spindle nose: Camlock D1-8

• Spindle bore: 80 mm

• Spindle taper: MT7

• Number of spindle speeds: 12

Feed rates

• Longitudinal feed: 0.059–1.646 mm/rev

• Cross feed: 0.020–0.573 mm/rev

Thread cutting

• Metric threads: 0.2–14 mm (47 ranges)

• Module threads: 0.1–7 mm (39 ranges)

• Whitworth threads: 2–112 TPI (60 ranges)

• Diametral pitch threads: 4–112 DP (50 ranges)

Tailstock

• Tailstock taper: MT5

• Tailstock quill diameter: 76 mm

• Tailstock quill stroke: 180 mm

• Tailstock offset adjustment: ±12 mm

Machine data

• Main motor power: 7.8 kW

• Voltage: 400 V

• Frequency: 50/60 Hz

Additional equipment

• 3-axis Digital Readout (DRO)

• Quick Change Tool Post

• Chip conveyor

• Extensive standard tooling package
