- ➤ Used KNUTH X-Mill 640 For Sale | gindumac.com

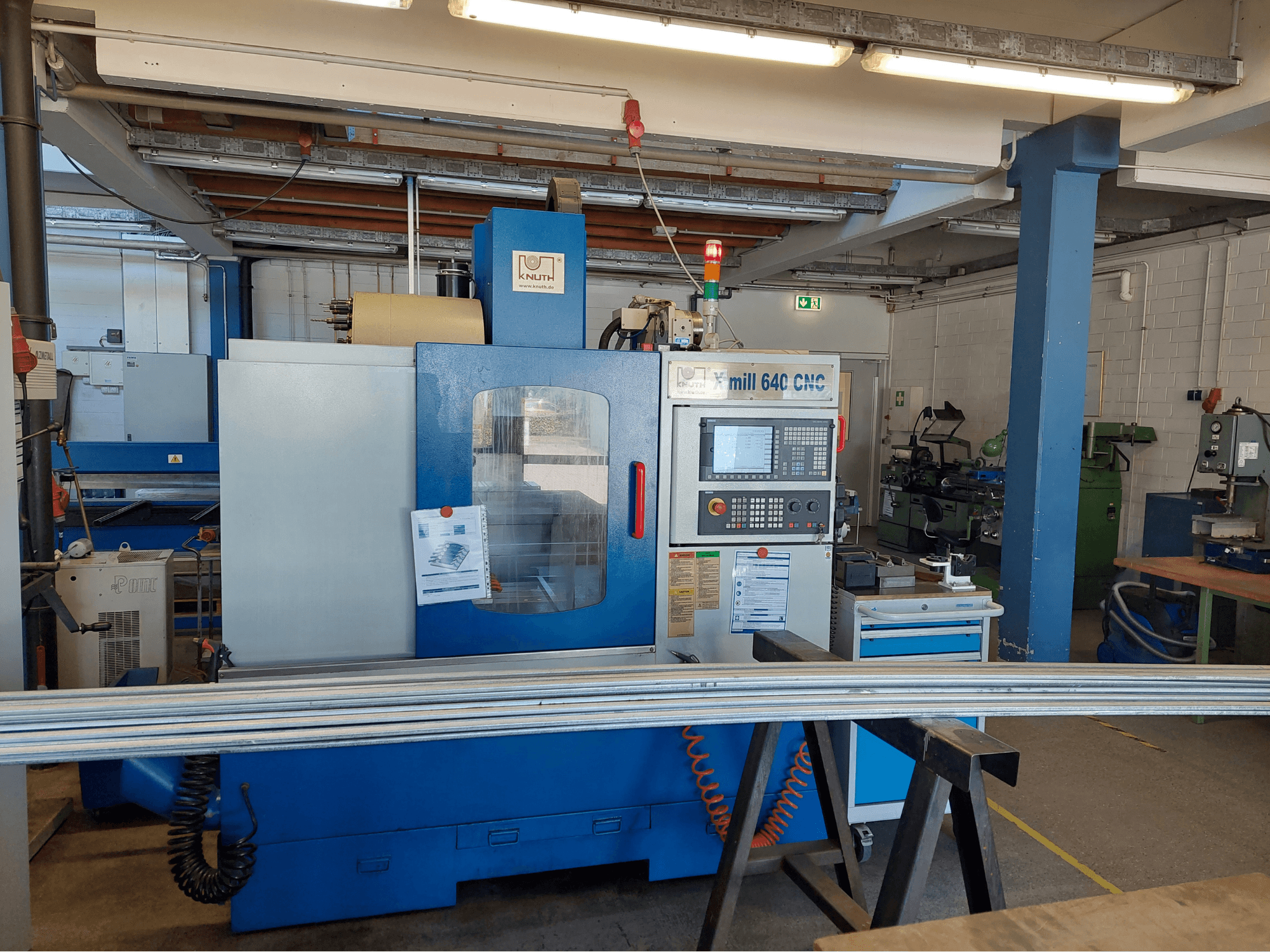

This 3-axis KNUTH X-Mill 640 was manufactured in 2015. It features a travel of 640 mm on the X-axis, 400 mm on the Y-axis, and 500 mm on the Z-axis. The machine is equipped with a Siemens 828D control unit and a 16-fold double-arm tool changer. If you are looking to get high-quality machining capabilities, consider the KNUTH X-Mill 640 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: KNUTH
- year: 2015
- MODEL: X-Mill 640
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - KNUTH X-Mill 640
Control Unit
- Control Brand: SIEMENS
- Control Model: 828D
Dimensions
- Machine Height: 2300 mm
- Machine Length: 2300 mm
- Machine Weight: 4200 kg
- Machine Width: 1800 mm
- Table Length: 360 mm
- Table Load: 300 kg
- Table Width: 750 mm
Movement
- Number of Axes: 3
- X-axis Travel: 640 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 8000 RPM
- Taper Size: BT 40
Additional Information
- Table Height from Floor: 850 mm
- T-Slots (Number / Width / Distance): 3 / 18 mm / 100 mm
- Spindle Speed: 60 - 8000 rpm
- Distance Spindle to Vertical Guide Way: 430 mm
- Main Motor Power: 7.5 / 11 kW
- Total Power: 10.00 kW
- Feed Rate: 5 - 5000 mm/min
- Rapid Feed Rate: 15000 mm/min
- Positioning Accuracy: 0.01 mm
- Repeatability: 0.005 mm
- Machine Weight: 2500 kg (Manual lifting specification) / 4200 kg
- Operating Voltage: 400 V / 440 V, 3-Phase, 50/60 Hz
- Operating Temperature: 0°C ~ 45°C
- Pneumatic Operating Pressure: >= 0.6 MPa (6 kg/cm²)
- Operating Setup Time: 186,488
- Tool Changer: 16-fold double-arm tool changer
- Standard & Included Accessories: Siemens 828D control, electronic handwheel, spiral chip conveyor, servo drives for all 3 axes, 16-position tool changer, pneumatic tool clamping, air conditioning, fully enclosed work area, work light, Ethernet, USB interface, sloping chip tray, automatic central lubrication, spindle oil cooling, operating tools, operating instructions, X.div CNC rotary table 170 mm with manual tailstock for Siemens control, 6" manual chuck for X.div, BT40/B16 and BT40/B18 drill chuck mounts, MAS BT40-ER40-80 collet chuck, 15-piece ER40 collet set (3-26 mm), BT40 combination mandrels (Ø22, Ø27, Ø32 mm), WELDON BT40 milling chucks (Ø6, Ø8, Ø10, Ø12, Ø16, Ø20 mm)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
