➤ Used KNUTH X-MILL 1500 CNC For Sale | gindumac.com

Show in original language

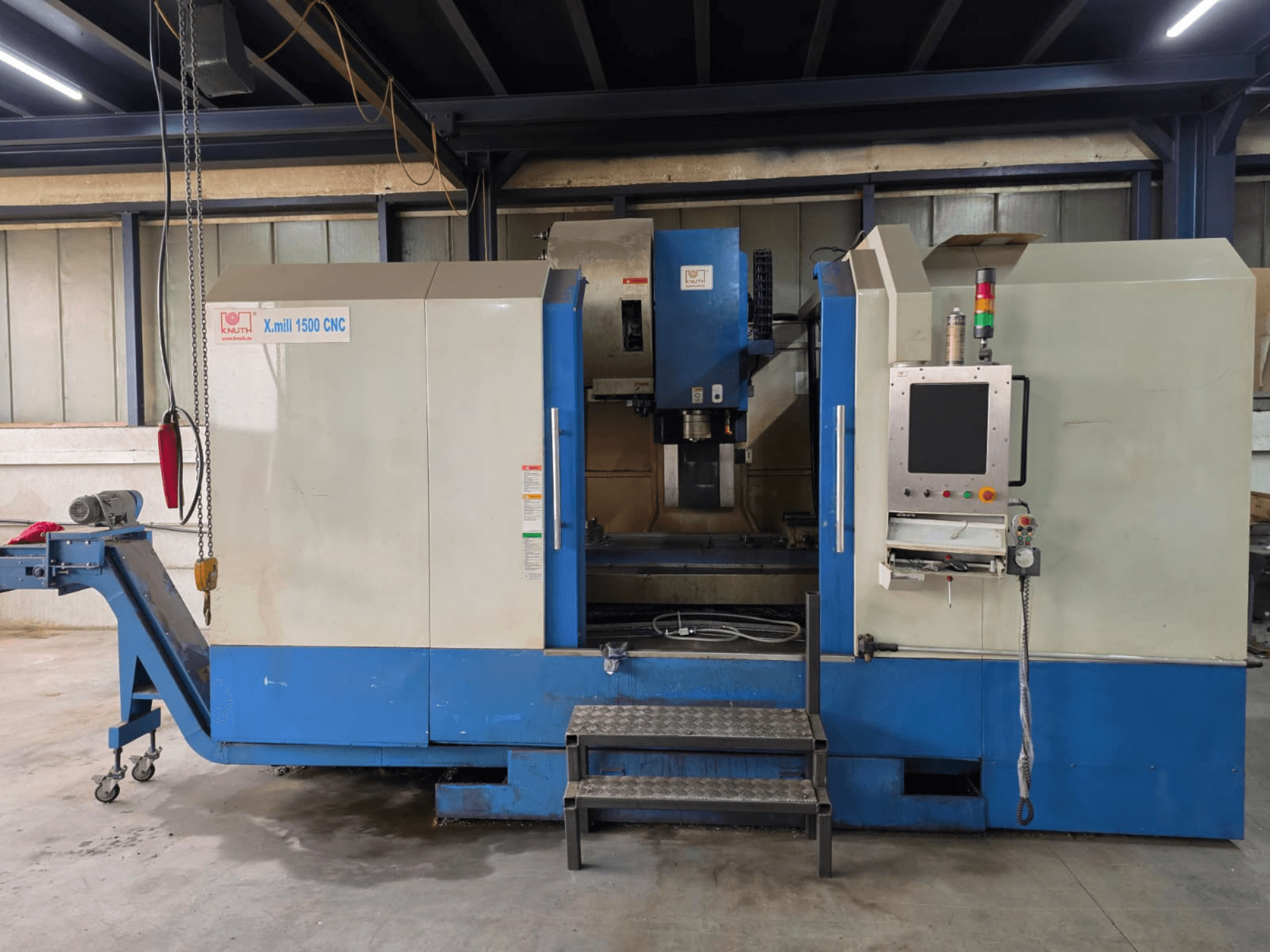

This 3-axis KNUTH X-MILL 1500 CNC was manufactured in 2011. It features an impressive X-axis travel of 1500 mm, Y-axis travel of 800 mm, and Z-axis travel of 700 mm. The machine includes a robust table size of 1700 x 800 mm with a load capacity of 1500 kg. If you are looking to get high-quality machining capabilities, consider the KNUTH X-MILL 1500 CNC vertical machining centre we have for sale. Contact us for further details.

Overview

brand: KNUTH
year: 2011
MODEL: X-MILL 1500 CNC
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - KNUTH X-MILL 1500 CNC

Dimensions

Machine Height: 3067 mm
Machine Length: 4270 mm
Machine Weight: 14000 kg
Machine Width: 3413 mm
Table Length: 1700 mm
Table Load: 1500 kg
Table Width: 800 mm

Movement

Number of Axes: 3
X-axis Travel: 1500 mm
Y-axis Travel: 800 mm
Z-axis Travel: 700 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 8000 RPM
Taper Size: BT 50

Additional Information

- Number of T-slots: 5

- T-slot Width: 22 mm

- T-slot Spacing: 135 mm

- Spindle Nose to Table Surface Distance: 170-870 mm

- Throat Depth: 800 mm

- Spindle Speed Range: 60-8000 rpm

- Spindle Taper: MAS BT 50

- X-axis Rapid Feed Rate: 15000 mm/min

- Y-axis Rapid Feed Rate: 15000 mm/min

- Z-axis Rapid Feed Rate: 10000 mm/min

- Working Feed Rate: 5-5000 mm/min

- Tool Changer Capacity: 24 positions

- Positioning Accuracy: ±0.01 mm / ±0.00039"

- Repeatability Accuracy: ±0.005 mm / ±0.0002"

- Main Drive Motor Power (continuous / 30 min): 15 / 18.5 kW (15 / 25 Hp)

- Total Power: 18.5 kW

- Voltage: 400 Volt

- Frequency: 50 Hz / 3 Phases

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
