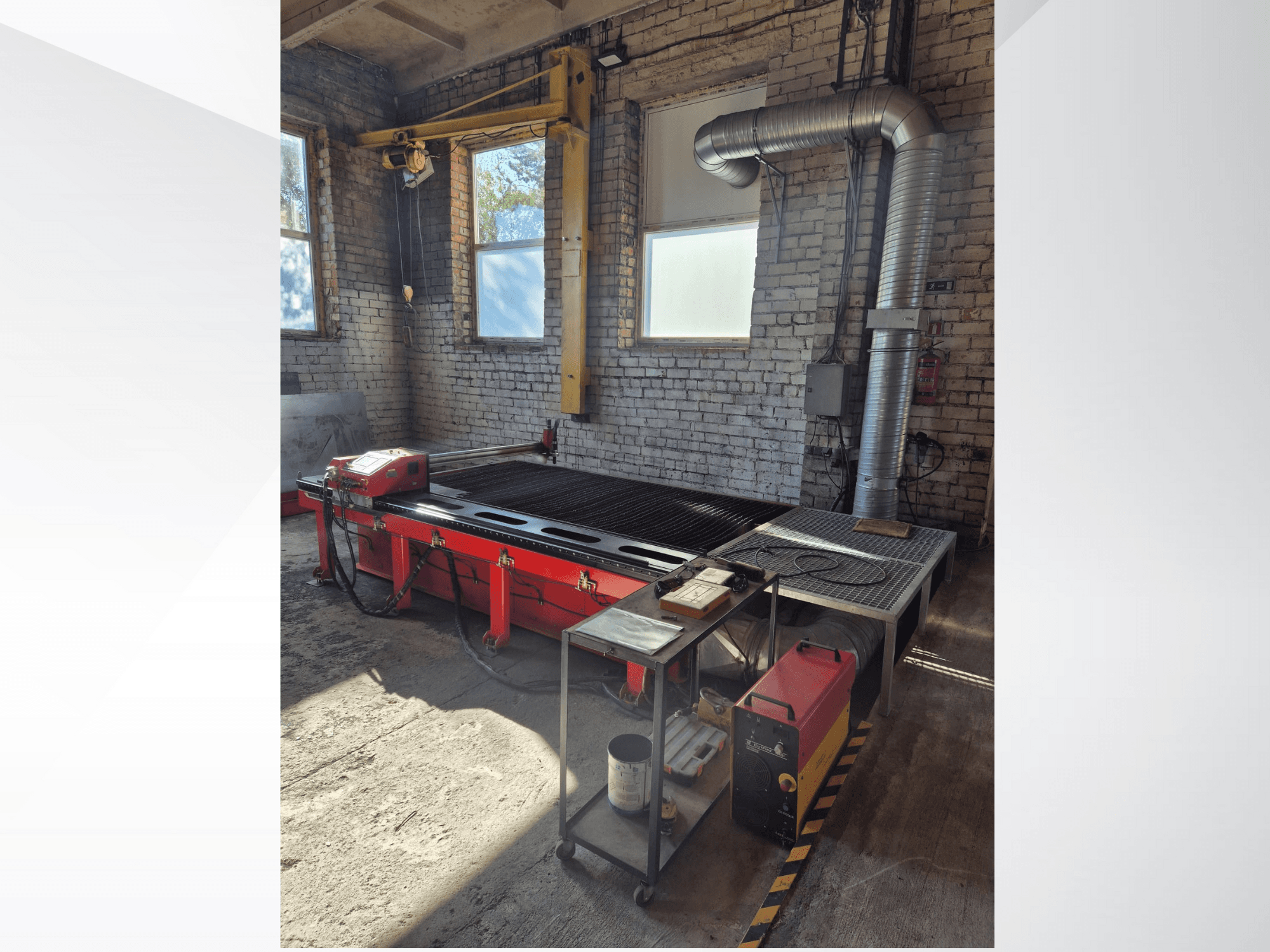

KOIKE - PNC-12 EXTREMELV-CUT-KOI-2015-00001

Additional information

• Axes: 2

• Effective Cutting Area: 1500 x 3000 mm

• Maximum Cutting Thickness: up to 50 mm

• Rapid Travel Speed: 4000 mm/min

• Maximum Cutting Speed: 3000 mm/min

• Control: KOIKE D420

• Control Functions: Rotation, mirror, nesting, recovery, piercing point selection

• CNC Display: 7” color, multilingual

• Data Input: USB / MDI

• Program Format: EIA

• Software: KOIKE PNC-CAM Expert V2E + FastCAM license

• Preinstalled Cutting Patterns: 47 shapes

• CAD Import: DXF, DWG

• Auto Nesting / Sequencing: Yes

• Motors: Stepping motors (X/Y), DC motor for torch lifter

• Input Voltage: 1~ 200–240V, 50/60 Hz

• X/Y Drive: Rack and Pinion, linear guides

• Torch Holder: Ø35 mm

• Initial Torch Height Control: Yes

• Torch Collision Protection: Yes

• Arc Voltage Height Control: Yes (1:1 or 50:1)

• Plasma Source: Kjellberg CutFire 100i (100A)

• Mains Voltage: 3~ 400V ±10%, 50 Hz

• Power Consumption: 16.6 kVA (100% duty cycle)

• Cutting Current: 35–100 A

• Duty Cycle: 100% at 100 A

• Cutting Range: 1–20 mm (recommended), max. 40 mm

• Piercing Thickness: up to 20 mm

• Open Circuit Voltage: 330 V DC

• Efficiency: 0.92

• Power Factor: 0.97

• Cooling: Air cooled (built-in fan), torch gas cooled

• Gas Supply: Air, 5.5 bar, 220 Nl/min

• Protection Class: IP21

• Weight: 50 kg

• Dimensions: 710 x 280 x 590 mm

• Plasma Source

• Control Unit

• Laptop with FastCAM license

• Plasma Table 3000 x 1500 mm (4 suction chambers)

• Ventilation Unit with Outlets

• Hoist – 500 kg Lifting Capacity

• Piston Compressor 5.5 kW, 270 L, 10 bar

• Air Dryer 1500 L/min

• Lifting Magnet and Sheet Gripper

• Nozzles, Electrodes, and Spare Parts
