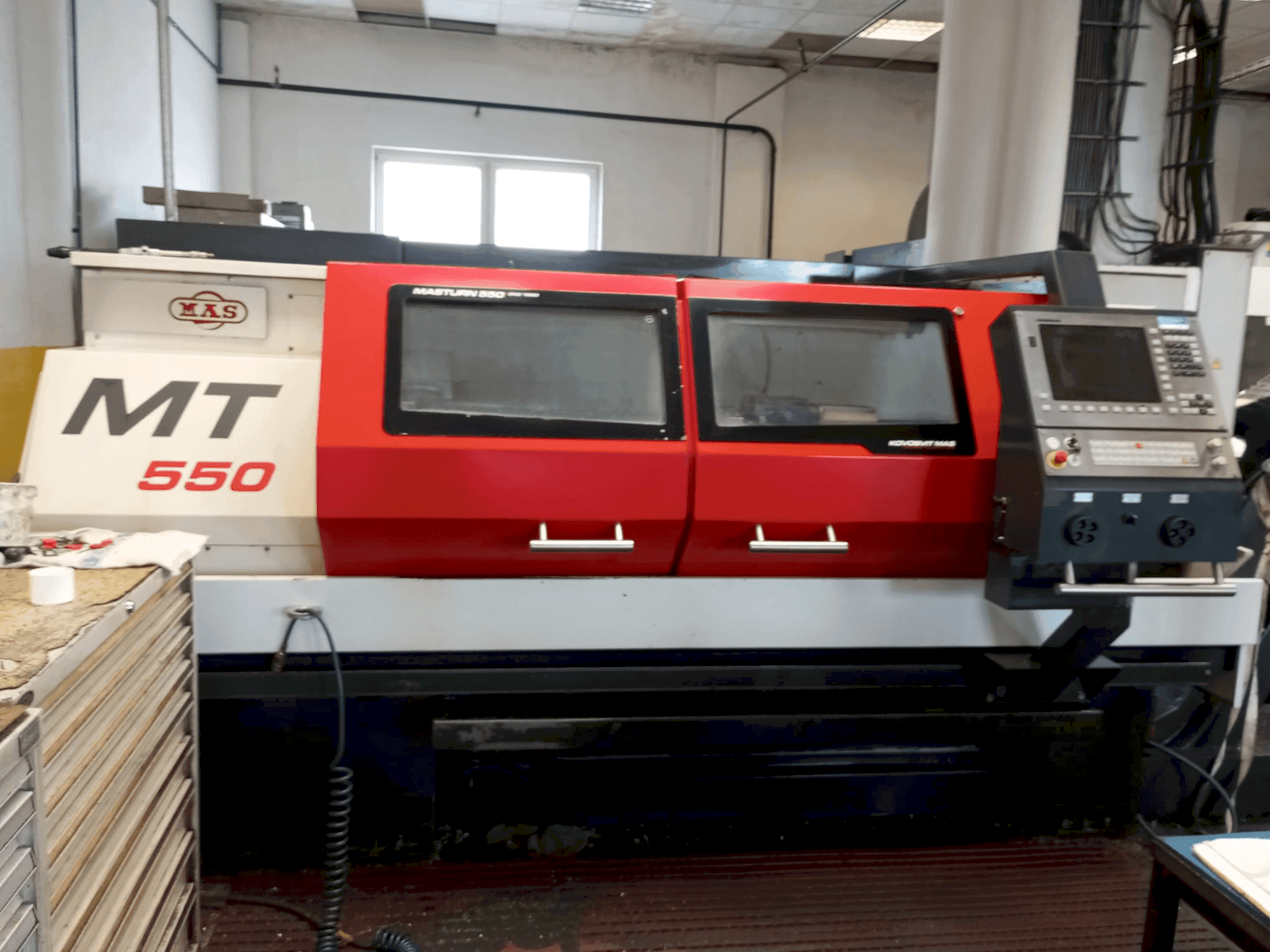

KOVOSVIT MAS MASTURN 550i CNC 1500

Photo Gallery

KOVOSVIT MAS - MASTURN 550i CNC 1500CZ-TUR-KOV-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KOVOSVIT MAS MASTURN 550i CNC 1500 | Lathe For sale

Show in original language

This KOVOSVIT MAS MASTURN 550i CNC 1500 lathe was manufactured in 2015. It features a maximum machining diameter of 500 mm and a turning diameter over bed of 550 mm. Equipped with a HEIDENHAIN MANUAL plus 620 control, it offers a spindle speed range up to 3000 rpm and a turret head with 8 positions. Ideal for precision machining, the KOVOSVIT MAS MASTURN 550i CNC 1500 represents a robust addition to any workshop. Contact us for further details.

Overview

brand: KOVOSVIT MAS
year: 2015
MODEL: MASTURN 550i CNC 1500
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MASTURN 550i CNC 1500

Control Unit

Control Brand: HEIDENHAIN
Control Model: MANUAL plus 620

Movement

X-axis Travel: 285 mm
Z-axis Travel: 1590 mm

Technical Specification

Spindle Power: 1 kW
Spindle Speed: 3000 RPM

Additional Information

Additional equipment

Quill cone: MORSE 5

Machine Benefits

Technical Machine Benefits

Max. Machining diameter: 500 mm
Distance between the tips: 1600 mm
Tailstock quill diameter: 90 mm
Quill stroke: 160 mm
Working feed: 0 - 10,000 mm/min
Total machine input: 30 kva
Turret head 8 positions (vdi 30)
Rapid feed: 10 m/min

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
