HAAS - SL-30THECZ-TUR-HAA-2007-00005

Name: HAAS SL-30THE
Brand: HAAS
SKU: CZ-TUR-HAA-2007-00005
Price: 23000 EUR
Availability: InStock

23,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS SL-30THE For Sale | gindumac.com

Show in original language

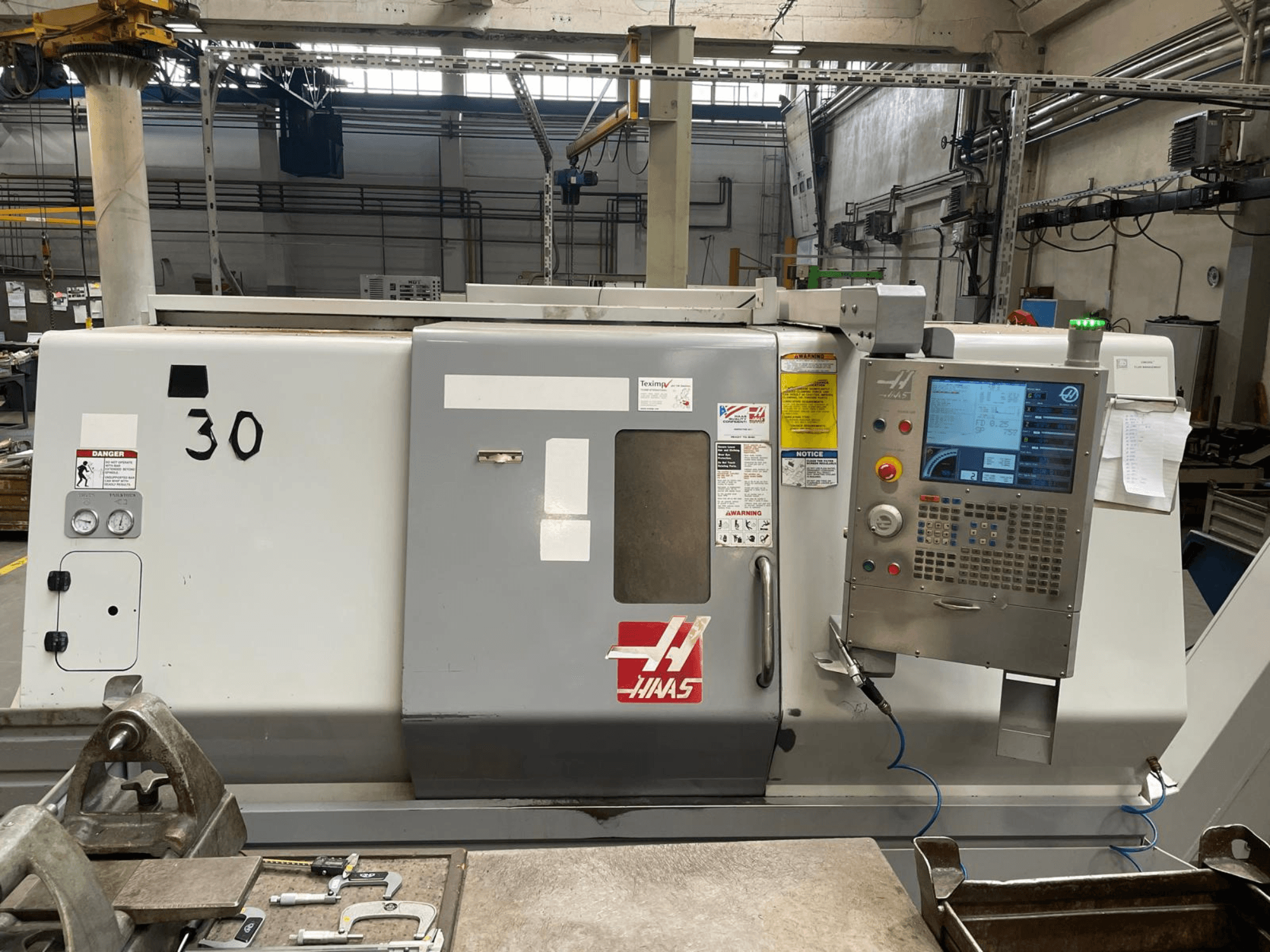

Horizontal turning machine manufactured in 2007. This HAAS SL-30THE features a maximum cutting diameter of 432 mm and a cutting length of 864 mm. It includes a spindle bore of 88.9 mm and a maximum speed of 3400 rpm. If you are looking to get high-quality turning capabilities, consider the HAAS SL-30THE machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2007
MODEL: SL-30THE
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine

Technical Information - HAAS SL-30THE

Dimensions

Machine Weight: 6804 kg

Movement

Number of Axes: 2
X-axis Travel: 287 mm
Z-axis Travel: 864 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 22.4 kW
Spindle Speed: 3400 RPM
Tool Stations: 12

Additional Information

Max. swing over front cover: 762 mm
Max. swing over cross slide: 381 mm
Max. cutting diameter: 432 mm
Max. cutting length: 864 mm
Spindle bore: 88.9 mm
Max. torque: 407 Nm @ 700 rpm
Spindle nose (Standard): A2-6
Feedrate rapids X axis: 18.0 m/min
Feedrate rapids Z axis: 18.0 m/min
Outside/inside turning tool size: 25 mm
Bore size for turning tools: 50 mm
Tool change time (adjacent tool): 1 second
Tool change time (opposite tool): 3 seconds
Electrical supply / Power requirement: 28 kVA
Voltage: 380 V 3-phase
Air requirement: 113 l/min @ 6.9 bar
Coolant tank capacity: 189 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
