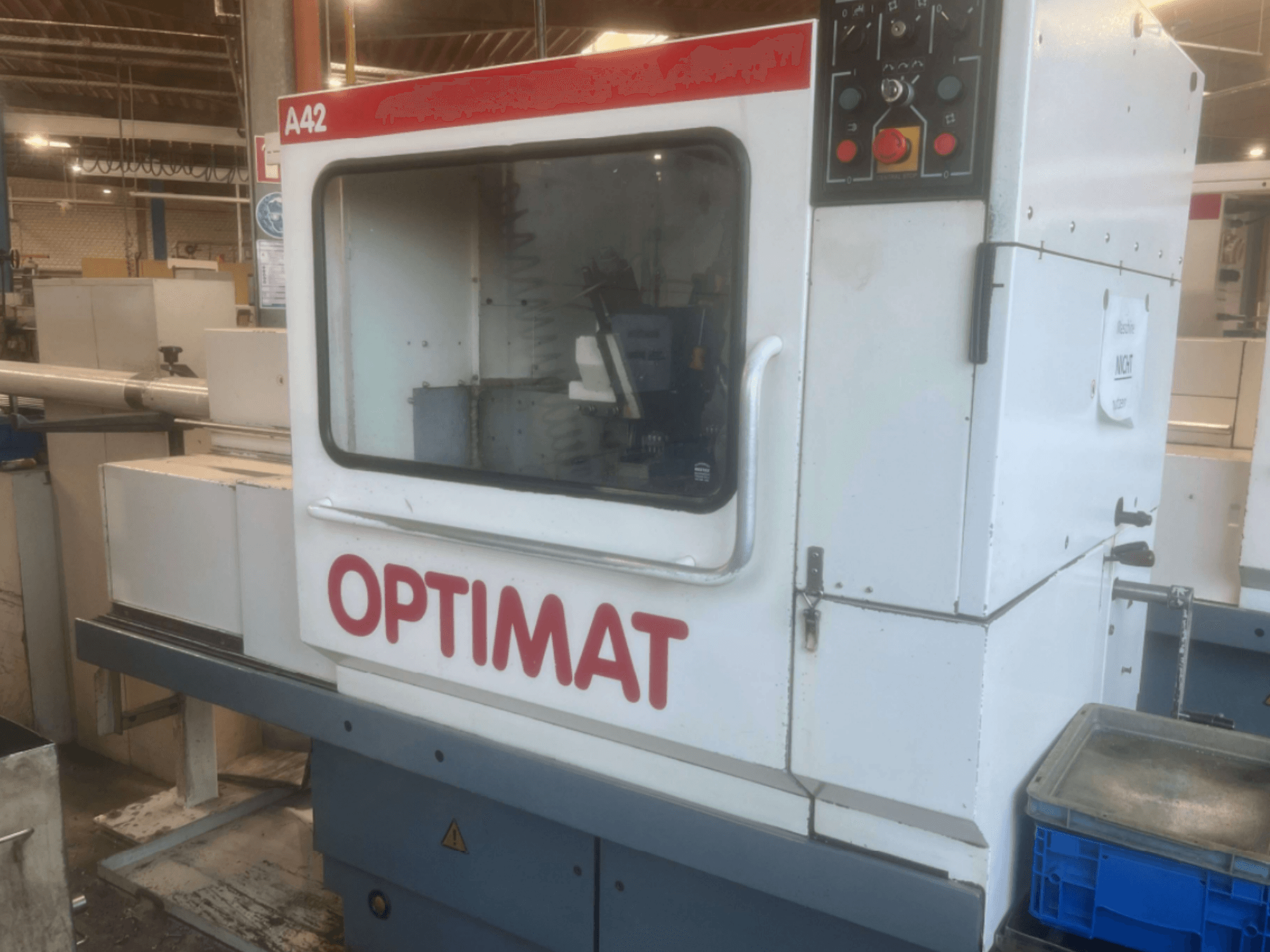

Horizontal turning machine manufactured in 2002. This KOVOSVIT MAS Optimat A42 features a robust design with a weight of 2505 kg and a total power consumption of 12 kVA. It is equipped with a manual guide bar/tube loading support system for enhanced functionality. If you are looking to get high-quality turning capabilities, consider the KOVOSVIT MAS Optimat A42 machine we have for sale. Contact us for further details.
Overview
- brand: KOVOSVIT MAS
- year: 2002
- MODEL: Optimat A42
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - KOVOSVIT MAS Optimat A42
Dimensions
- Machine Weight: 2505 kg
Movement
- Number of Axes: 2
- X-axis Travel: 110 mm
- Z-axis Travel: 310 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Speed: 2818 RPM
- Tool Stations: 6
Additional Information
- Main Phase Voltage: 3x 400 V ~
- Rated Current: 26 A
- Total Power Consumption: 12 kVA
- Frequency: 50 Hz
- Control Circuit Voltage (AC): 110 V ~
- Control Circuit Voltage (DC): 24 V =
- Machine Lighting Voltage: 220 V
- Machine Lighting Wattage: 2x 20 W
- Control: Curve
- Spindle diameter: 42 (50) mm
- Spindle speed: 85 – 2,818
- Number of tools: 4 side-cutting tools
- 6 tool stations on the turret
- Schematic / Diagram Reference: SCH 338 / 40004 - 34
- Bar Feed Equipment: Fitted with manual guide bar/tube loading support system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
