Krauss Maffei - KME 45 XSDE-EXT-KRA-2014-00001

Name: Krauss Maffei KME 45 XS
Brand: Krauss Maffei
SKU: DE-EXT-KRA-2014-00001
Price: 18000 EUR
Availability: InStock

18,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Krauss Maffei KME 45 XS For Sale | gindumac.com

Show in original language

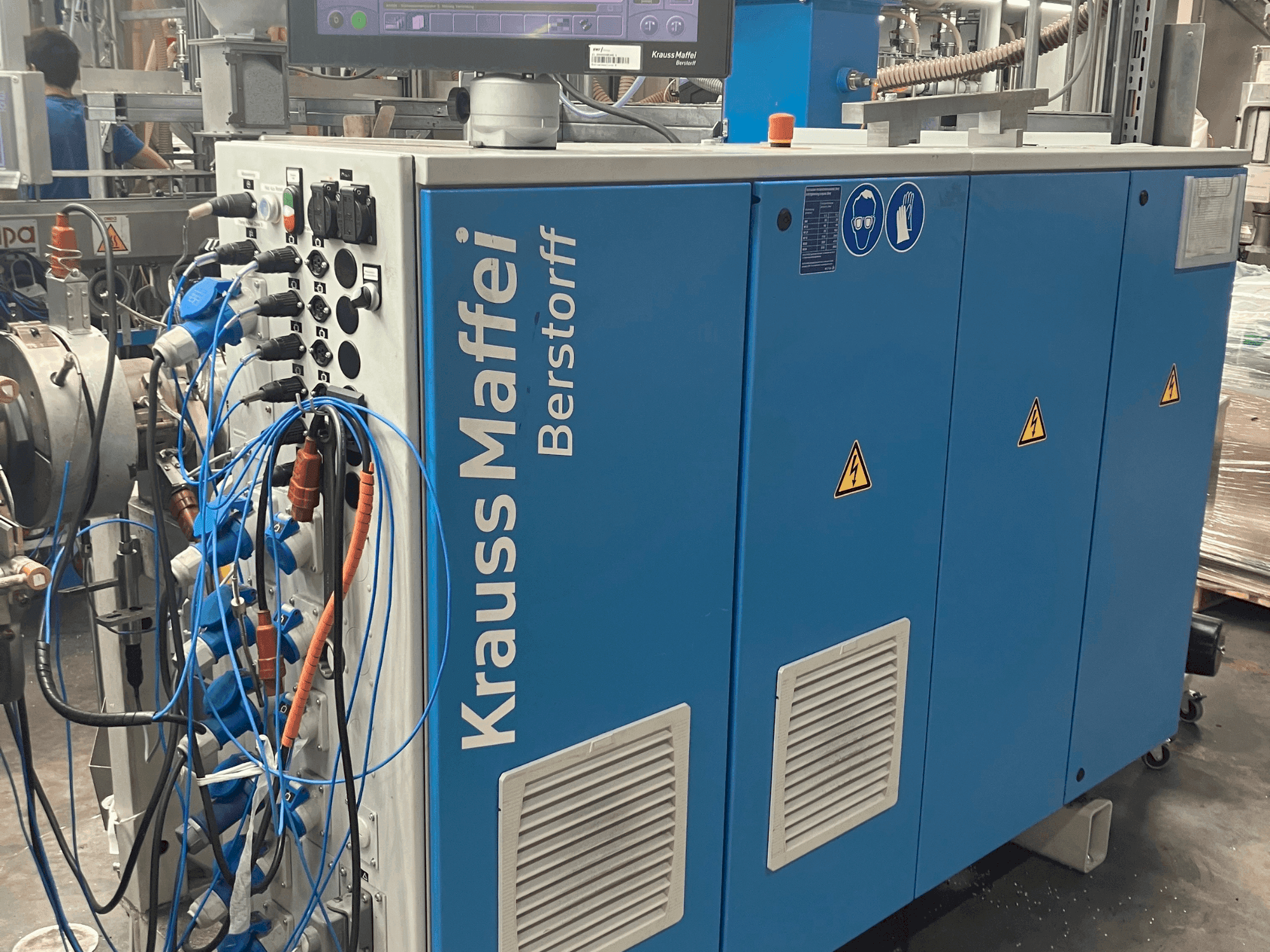

This Krauss Maffei KME 45 XS was manufactured in 2014. It features a screw diameter of 45 mm and a length of 1350 mm, operating between 20-200 rpm. The machine includes five heating/cooling zones and a hopper volume of 0.1 m³. Ideal for those looking to enhance their extrusion capabilities. Contact us for more information about this machine.

Overview

brand: Krauss Maffei
year: 2014
MODEL: KME 45 XS
application type: Extrusion
Location: Germany
machine type: Single Screw Extruder

Technical Information - Krauss Maffei KME 45 XS

General Data

Measurements width: 1125 mm
Measurements depth: 2120 mm
Measurements height: 1960 mm
Machine weight: 1100 kg

Main drive

Spindle speed range: 2486 1/MIN

Injection Unit

Screw diameter: 45 mm

Additional Information

Additional Equipment

Extrusion height: 1000 mm
Hopper volume: 0.1 m³

Extra information

Gear ratio: 1:12.4
Screw Length: 1350 mm
Injection Unit Min./max. speed: 20 – 200 rpm
Number of heating/cooling zones: 5
Max. air flow with fan cooling: 3150 m³/h
Max. installed heating capacity of the cylinder: 10 kW
Extruder cooling water requirement: approx. 0.6 m³/h
Pipe extrusion: 4 zones × 10 kW
Profile extrusion: 5 zones × 3.6 kW
Pipe extrusion: 90 kW
Profile extrusion: 76 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
