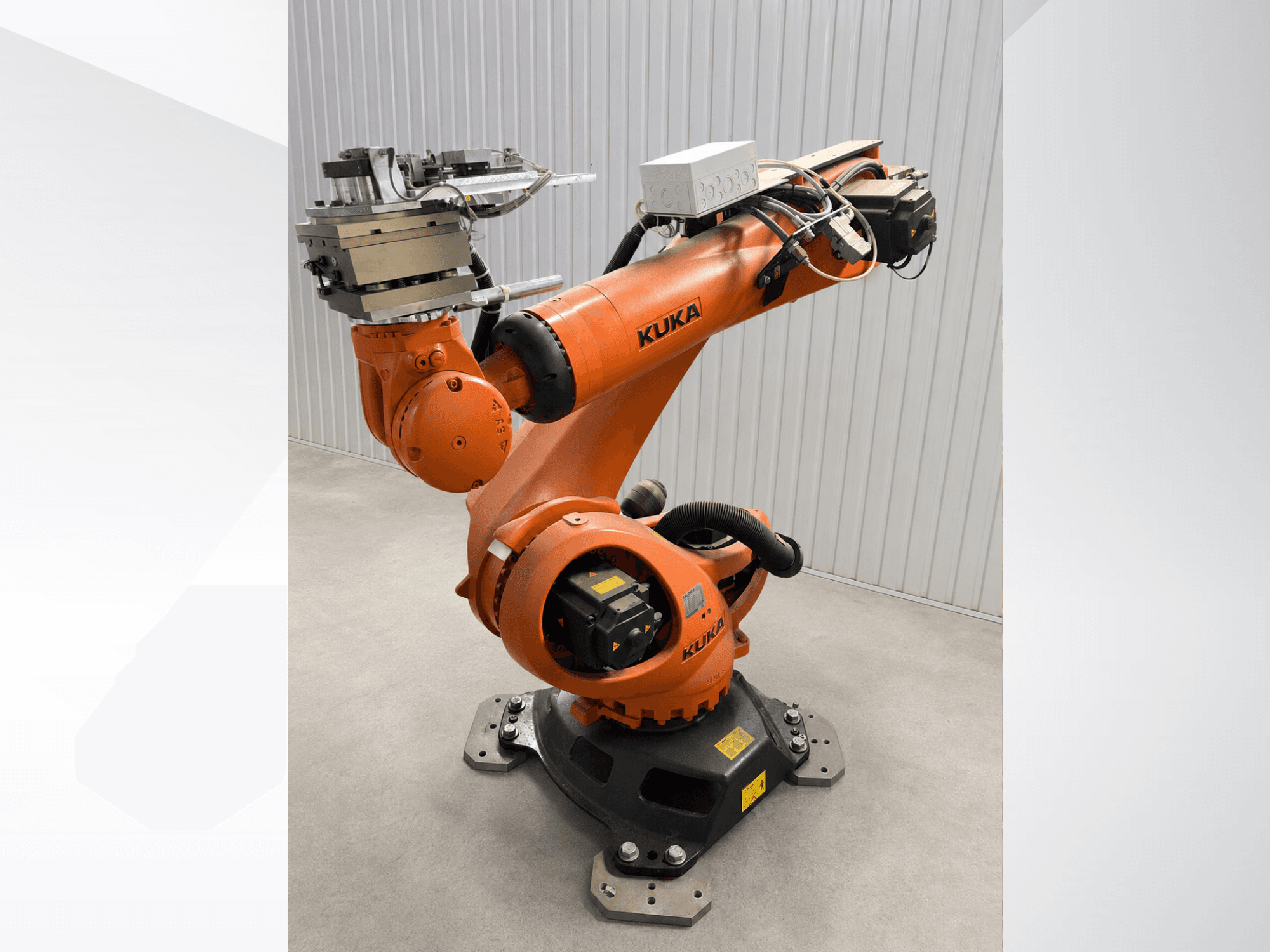

This 6-axis KUKA KR 90 R3100 extra was manufactured in 2013. It features a load capacity of 90 kg and a range of 3096 mm, making it suitable for various applications. The machine includes a KUKA KRC4 control cabinet and a smartPAD teach pendant for enhanced usability. If you are looking to get high-quality robotic capabilities, consider the KUKA KR 90 R3100 extra robot arm we have for sale. Contact us for further details.

Overview

  • brand: KUKA
  • year: 2013
  • MODEL: KR 90 R3100 extra (2013)
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm

Technical Information - KUKA KR 90 R3100 extra (2013)

Dimensions

  • Machine Weight: 1092 kg

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 90 kg
  • Max. Reach: 3096 mm

Additional Information

- Controller Model: KRC4

- Year of Manufacture (Robot): 2013

- Year of Manufacture (Controller): 2013

- Robot Weight: 1092 kg

- Controller Weight: 150 kg

- Load Capacity: 90 kg

- Range: 3096 mm

- Supply Voltage: 3x400V

- Frequency: 50/60Hz

- Full-Load Current: 20A

- Mains Fuse: 25A

- Included Accessories / Components:

- KUKA KRC4 Control Cabinet

- KUKA smartPAD Teach Pendant

- Base mounting plate with leveling bolts

- Upper arm extension fixture / junction box assembly

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
