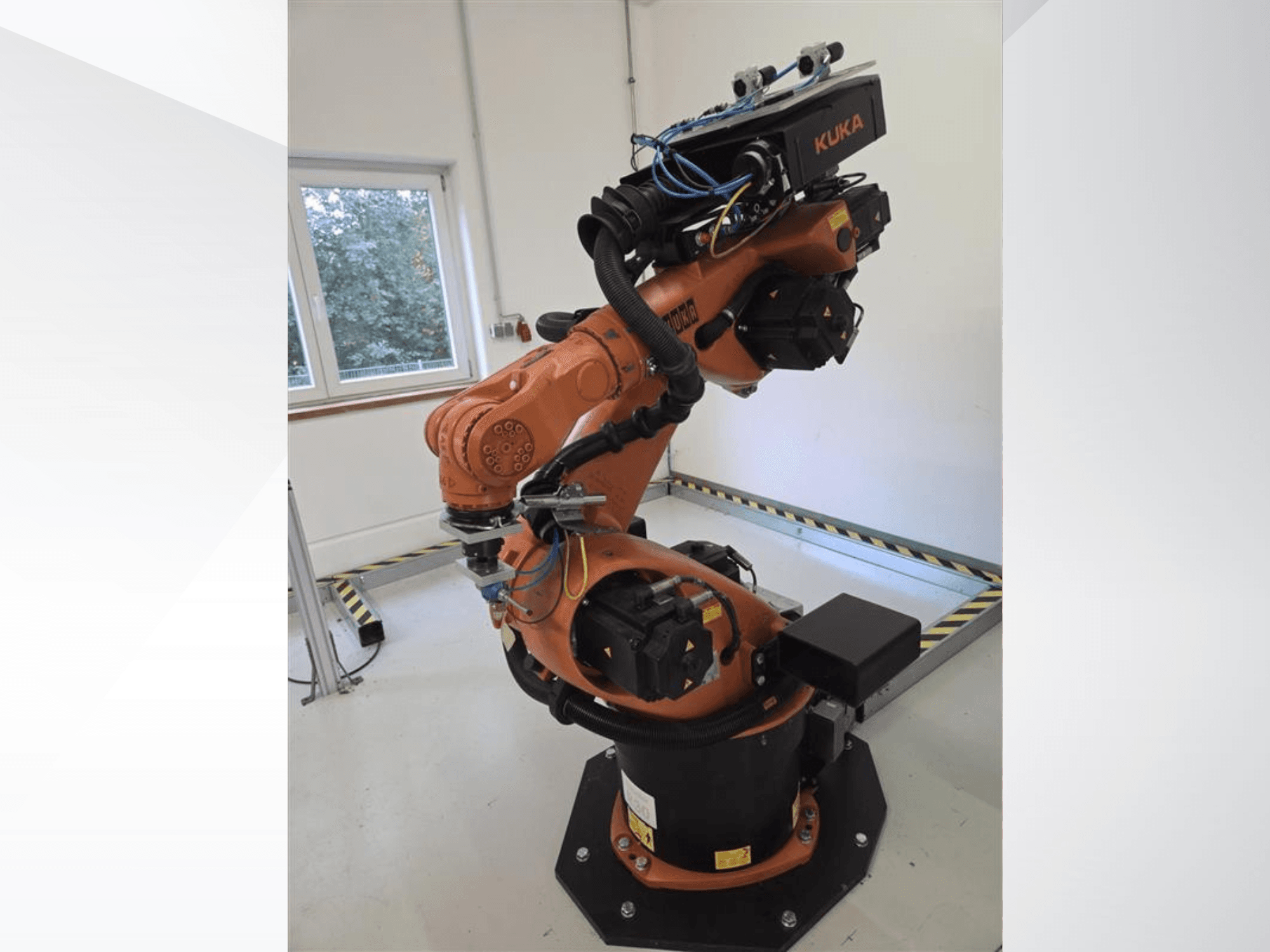

KUKA - KR60 HADE-ROB-KUK-2013-00007

- Mounting Position: Floor (FLR / FLOOR)

- Control Cabinet Model: KRC4

- Cabinet Weight: 166 kg

- Supply Voltage: 3x 400V

- Frequency: 50/60 Hz

- Full-Load Current: 22 A

- Mains Fuse: 25 A

- Robot Dimensions (LxWxH): approx. 1600 x 1200 x 2000 mm

- Cabinet Dimensions (LxWxH): approx. 900 x 600 x mm

- Software / Firmware Version: KR C V8.2.28 HF5

- HMI Version: 8.2.0.6 B162

- Basic System Version: KS V8.2.162_HF3 (Release: 26 Feb 2015)

- OS: Windows XPe V3.0.1 Build 19 (2012-01-27)

- Controller Hardware: Intel Pentium CPU G850 @ 2.90GHz, RAM: 1657 MB, Storage: 19998 MB

- Installed Software Options:

- DAI_HmiLock V1.0.2

- DAI_POWERTRAIN V1.4.3

- Daimler.RemoteService V1.0.1

- DiagnoseSafety V2.0.1

- Gripper-&SpotTech V3.2.0

- KUKA.EKSUSBLogon.PT V1.0.2

- KUKA.PrismaInterface V1.1.2

- KUKA.WinXPSystemSettings V1.0.0

- LoadDataDetermination V6.2.3

- MaintenanceMSG V1.0.0

- Profinet KRC-Nexxt V2.2.11

- RobotSetupManager V1.0.1

- RSM_Erweiterung V1.1.1

- SafeOperation V3.1.3

- UserTech V3.1.4

- Peripherals & Accessories:

- KUKA smartPAD teach pendant (with connecting cable)

- Full connecting cable set

- Base mounting adapter plate (black octagonal steel floor plate)

- Safety position switch unit: SN02X12-732L-MC2122 with ProfiSafe switch fork / bracket
