Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
LK - HC90SE-MEA-LK-1997-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- LK HC90 Measuring machine

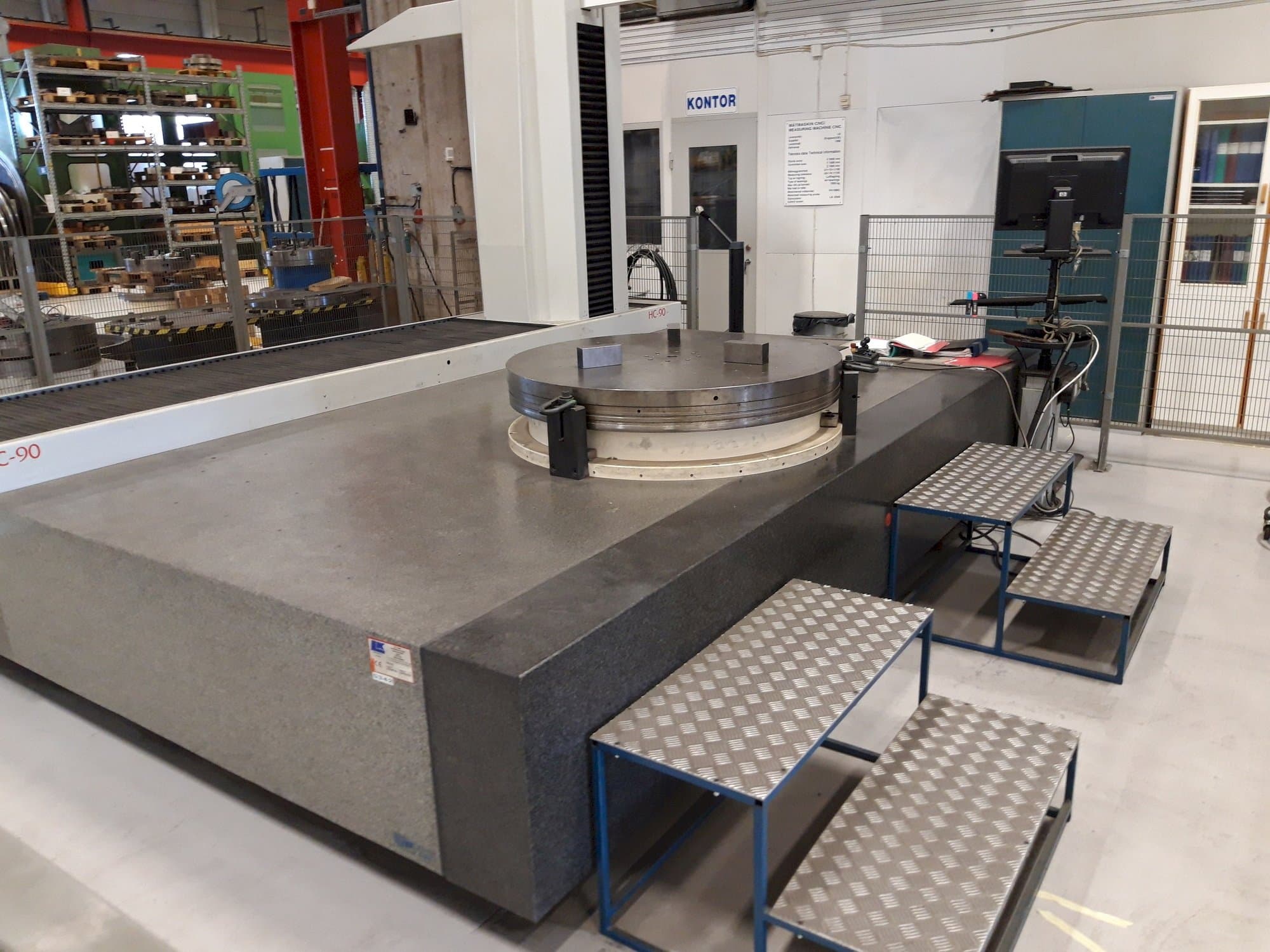

This LK HC90 Measuring machine was manufactured in the year 1997 in United Kingdom. It has 5 axis.
Overview
- brand: LK
- year: 1997
- MODEL: HC90
- application type: Measuring
- Location: Sweden
- machine type: Coordinate Measuring Machine (CMM)
- availability: Sold
Technical Information - LK HC90
Main drive
- Number of axis: 5
Additional Information
- Technical Machine Benefits:
- - Infinite positioning
- - ±184° articulation in both axis
- - 5-axis moves - cmm and probe head
- - Touch probe and laser scanner
- - Range of extension arms
- - Over travel protection
- - Passive change rack
- - Improved flexibility, increased accessibility, greater productivity, shorter set-up times (inferred calibration)
- - Longer probe lengths, up to 750mm (29. 5”)
- - Large parts with restricted access
- Qualitative Machine Benefits:
- - Automotive body-in-white inspection, aerospace precision fabricated structures, ceramic y and z guide way, high efficiency air bearings
- - Zero hysteresis friction drives
- - Very high available uptime
- - Volume range table version: 1000x400x600 to 4000x1600x2000
- - Volumetric accuracy from 1. 9 +l/250
- - Speed from 850 mm/sec, acceleration from 3800 mm/sec2
- - Volume range rail version: 4000x1200x1000 to 10000x1600x2500
- - Volumetric accuracy from 8. 0+l/200
- - Speed from 40 m/min
- - Acceleration from 7580 m/min2
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
