LNS - Quick Load Servo 3DE-OTH-LNS-2017-00001
14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Automation Equipment
- ➤ Used LNS Quick Load Servo 3 For Sale | gindumac.com
Show in original language

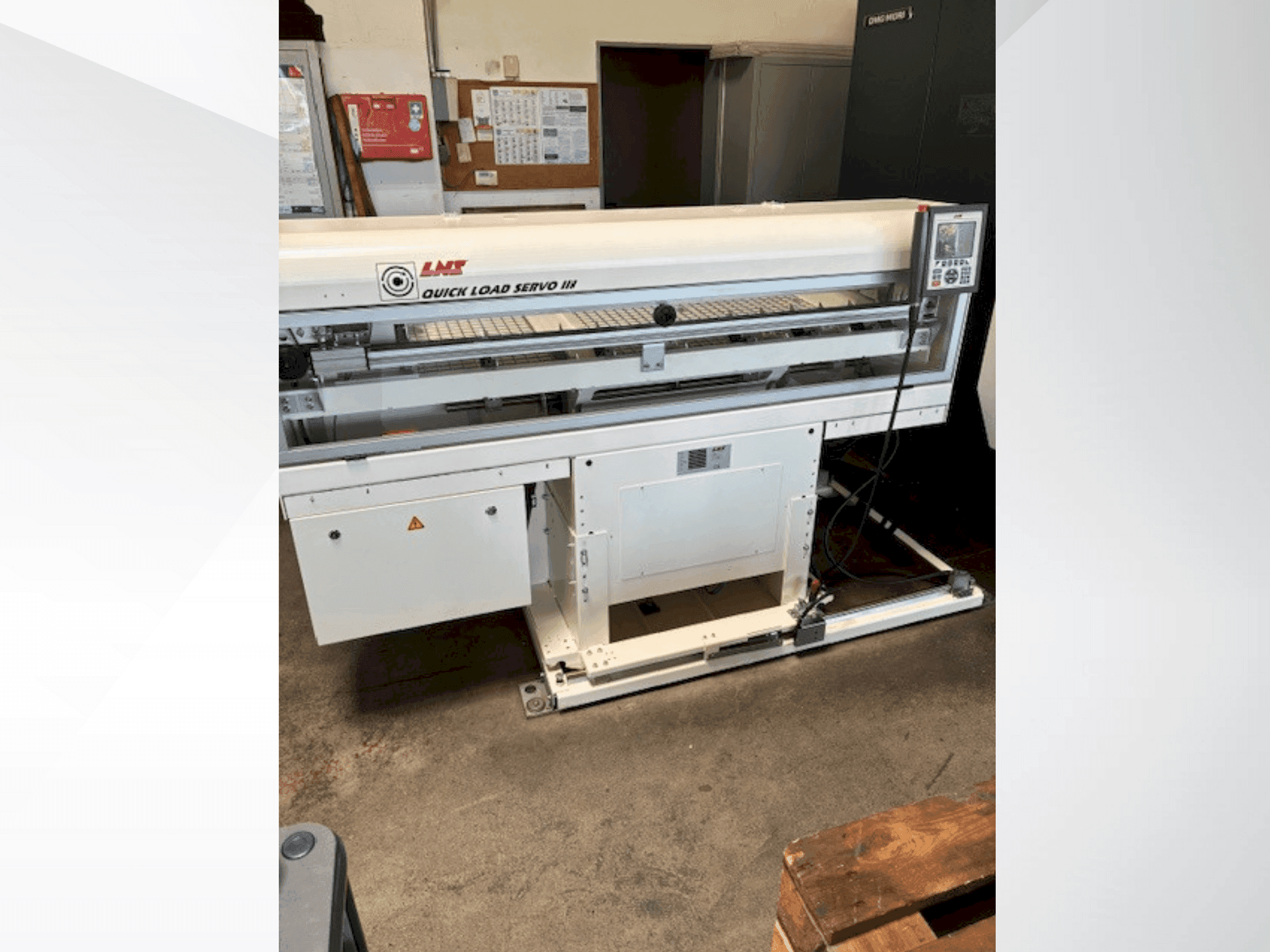

This LNS Quick Load Servo 3 was manufactured in 2017. It features a weight of 570 kg, dimensions of 2048 mm in length, 1486 mm in width, and an adjustable height between 1248 and 1748 mm. It supports a maximum bar diameter of 120 mm and a bar length up to 1600 mm. With a loading cycle time as low as 4 seconds, it's ideal for high-efficiency operations. Contact us for more information about this machine.
Overview
- brand: LNS
- year: 2017
- MODEL: Quick Load Servo 3
- application type: Other Automation Equipment
- Location: Germany
- machine type: Automation Equipment
Additional Information
Machine Benefits
Technical Machine Benefits
- Imensions of machine (lxwxh): length 2048 mm, width 1486 mm, height 1248 - 1748 mm / weight: 570 kg
- Longitudinal displacement: 600 mm
- Min. Diameter: 6 mm / max. Diameter: 120 mm / min. Rod length: 300 mm / max. Bar length: 1600 mm / max. Bar weight: 67 kg/bar
- Compressed air supply: 5 bar / compressed air consumption: 6 liters (per loading cycle) / supply voltage: 220 - 480 volts / 50 hz - 60 hz / max. Current: 1 a
- Max. Feed force: 167 nm / max. Feed speed: > 100 m/min / duration of the loading cycle: 8 - 12 sec. / loading cycle time (short parts): 4 - 7 sec.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Your account manager:
Borja Garcia
Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
Payment Terms
Payment in advance
Asset Financing
