- LVD ELECTRA FL-3015 Fiber laser cutting machine

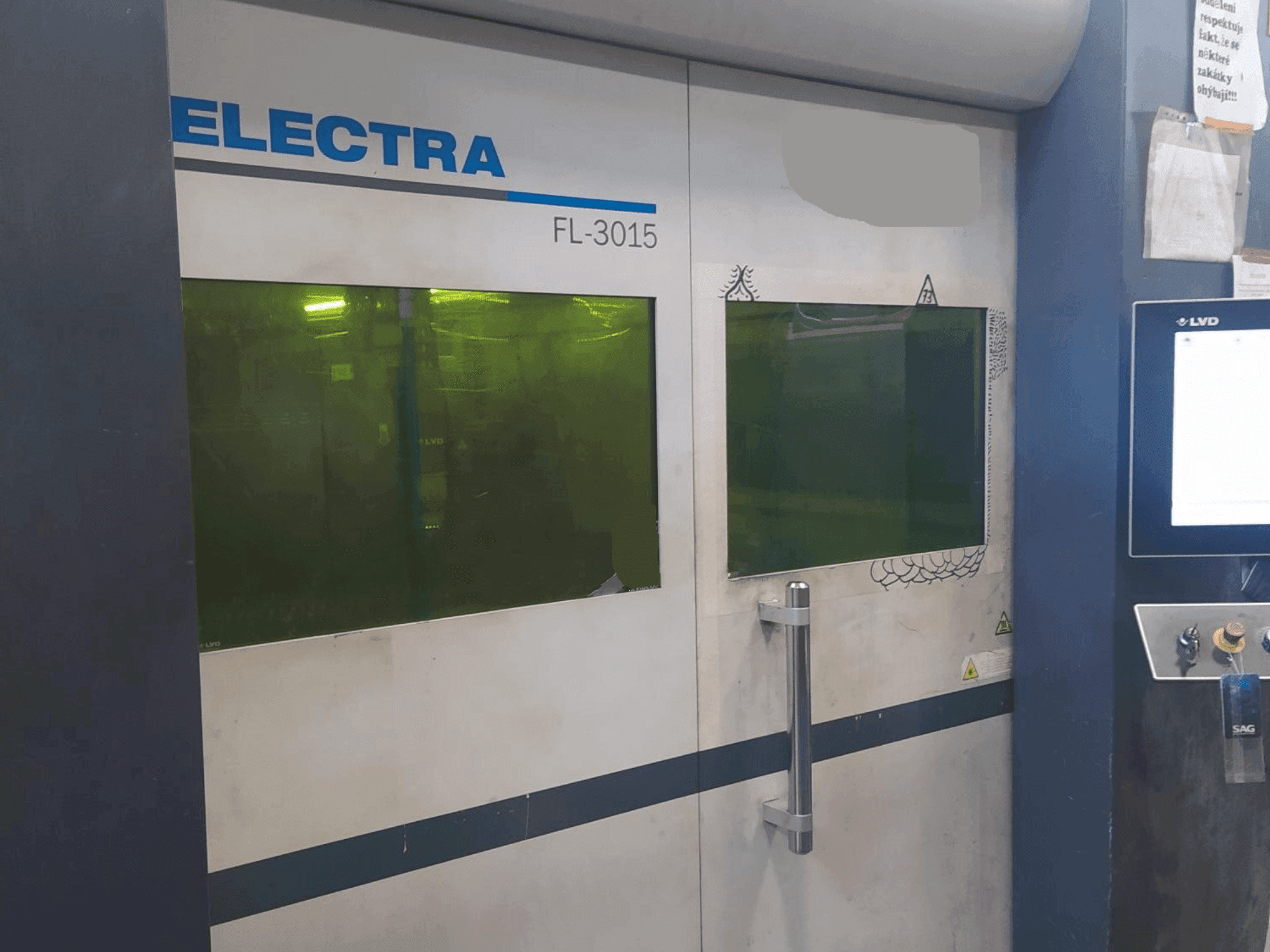

This LVD ELECTRA FL-3015 Fiber laser cutting machine was manufactured in 2015 and is equipped with a 4 kW FL 040 Rofin laser with Precitec cutting head. The machine is operated with a Siemens Sinumerik 840D control unit and can cut up to 10mm ST3, 8mm INOX and 6 mm PA11. It comes with a Rittal cooling unit. The table cutting area is 3000 x 1500 mm with X, Y, Z axis movement range of 3080 x 1555 x 100 mm. In January 2024 the cutting head was replaced. This Fiber laser cutting machine is in very good conditions with only 12,000 cutting hours. It is still under production and can be visited at any time.
Overview
- brand: LVD
- year: 2015
- MODEL: ELECTRA FL-3015
- production hours: 12000
- application type: Laser Cutting
- Location: Czech Republic
- machine type: Fiber laser cutting machines
- availability: Sold
- control unit brand: SIEMENS
Technical Information - LVD ELECTRA FL-3015
General Data
- Machine weight: 15000 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 840D sl
Main drive
- Laserpower: 4 KW
- Laser type: Fiber
- Maximum sheet thickness: ST3: 10 mm, INOX: 8 mm, PA11: 6 mm
- Laser brand: FL 040 Rofin
Movement
- X-AXIS Movement: 3080 MM
- Y-AXIS Movement: 1555 MM
- Z-AXIS Movement: 100 MM
Table
- Outer length: 3000 mm
- Outer width: 1500 mm
Max Material thickness
- Steel: 10 mm
- Stainless steel: 8 mm
- Aluminum: 6 mm
Machine specific data
- Laser Cutting Head: PRECITEC
Additional Equipment
- - Cooling Unit: Rittal
Additional Information
- Technical Machine Benefits:
- - Table cutting area: 3000 x 1500 mm
- - X, y, z axis movement range: 3080 x 1555 x 100 mm
- - Rapid feed speed: 170 m/min
- - Maximum thickness of cut material: st3: 10 mm, inox: 8 mm, pa11: 6 mm
- - Laser source: fl 040 rofin
- - Cutting head: precitec
- Qualitative Machine Benefits:
- - 4kw fiber laser
- - 12. 000 cutting hours
- - 01/2024 new cutting head
- - Machine is under power and can be inspected at any time
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
