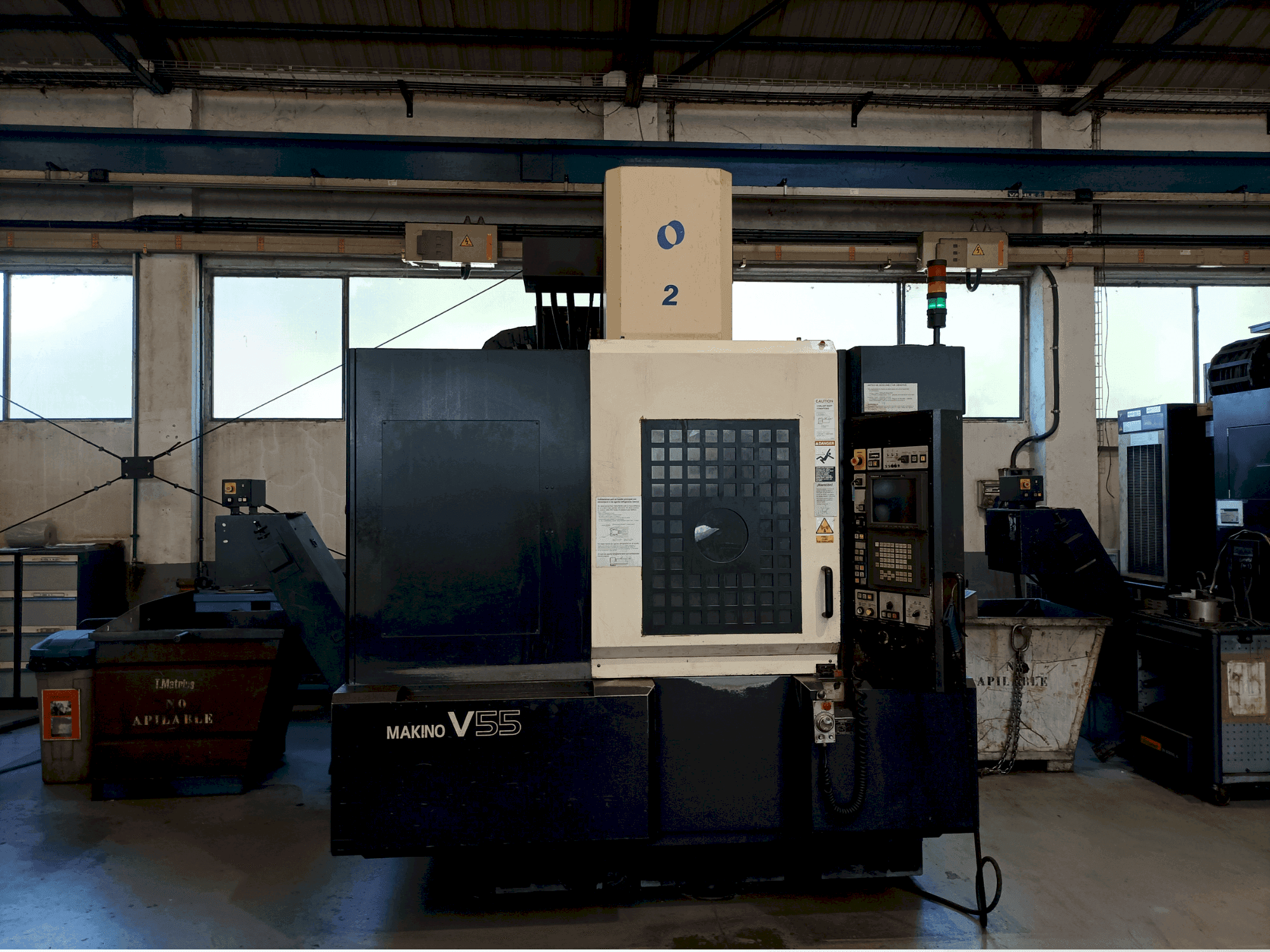

Front view of Makino V55-A15  machine

Makino - V55-A15ES-MIL-MAK-2000-00001

38,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Makino V55-A15 vertical machining center was manufactured in 2000. It features a spindle speed range of 15-14,000 rpm and an integral motor output of AC 22/18.5 kW. Equipped with a Fanuc 16M control, it offers X, Y, Z travels of 900 mm, 500 mm, and 450 mm respectively. The table can handle a maximum weight of 700 kg. A great opportunity to buy this Makino V55-A15 vertical machining center. Contact us for more information.

Overview

  • brand: Makino
  • year: 2000
  • MODEL: V55-A15
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - Makino V55-A15

Control Unit

  • Brand: Fanuc
  • Model: 16M

Main drive

  • Spindle speed range: 15-14,000 1/MIN

Movement

  • X-AXIS Movement: 900 mm
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 450 mm

Workpiece

  • Workpiece x: 1000 mm
  • Workpiece y: 450 mm
  • Workpiece z: 630 mm
  • Workpiece weight: 700 kg

Table

  • Outer length: 1000 mm
  • Outer width: 500 mm
  • TSlots size: Five: 18 × 35 × 30 mm
  • Min distance between vertical spindle and table: 150 mm
  • Max distance between vertical spindle and table: 600 mm

Tools

  • Slots in storage: 25

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Bearings [inner / outer diameter]: 90/140 mm
      • - Integral motor output characteristics [15 min. Duty cycle / continuous]: ac 22 / 18. 5 kw
      • - Height to table surface : 980 mm
      • - Tool shank: hsk63

    Extra information

    • - MACHINE STILL UNDER POWER

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
