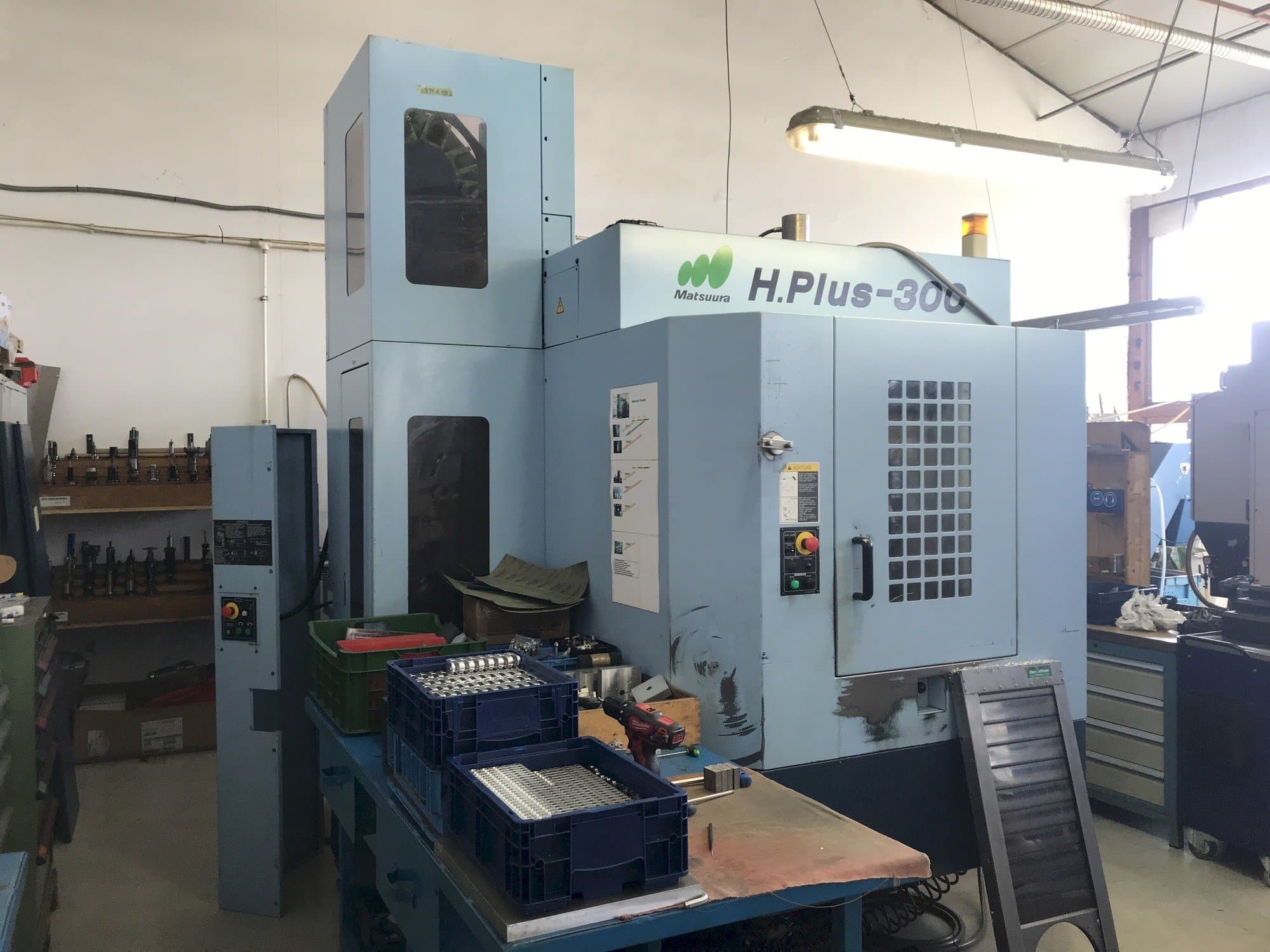

Front view of Matsuura H.PLUS-300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Matsuura H.PLUS-300

Photo Gallery

Matsuura - H.PLUS-300HU-MIL-MAT-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Matsuura H.PLUS-300 Horizontal Machining Center

Show in original language

This Matsuura H.PLUS-300 Horizontal Machining Center was manufactured in the year 2004 in Japan. It is operated through a ATC touch panel display. This machine counts with approximately 41000 hours. This Matsuura can work with a spindle speed up to 15.000 rpm.

Overview

brand: Matsuura
year: 2004
MODEL: H.PLUS-300
production hours: 41000
application type: Milling
Location: Hungary
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Matsuura H.PLUS-300

General Data

Measurements width: 3716 mm
Measurements depth: 2145 mm
Machine weight: 8300 kg

Control Unit

Model: Touch panel display

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 7.5/15 kW

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 60 m/min

Tools

Max weight: 8 kg
Max tool diameter: 90 mm - 150 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 51 tool atc

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
