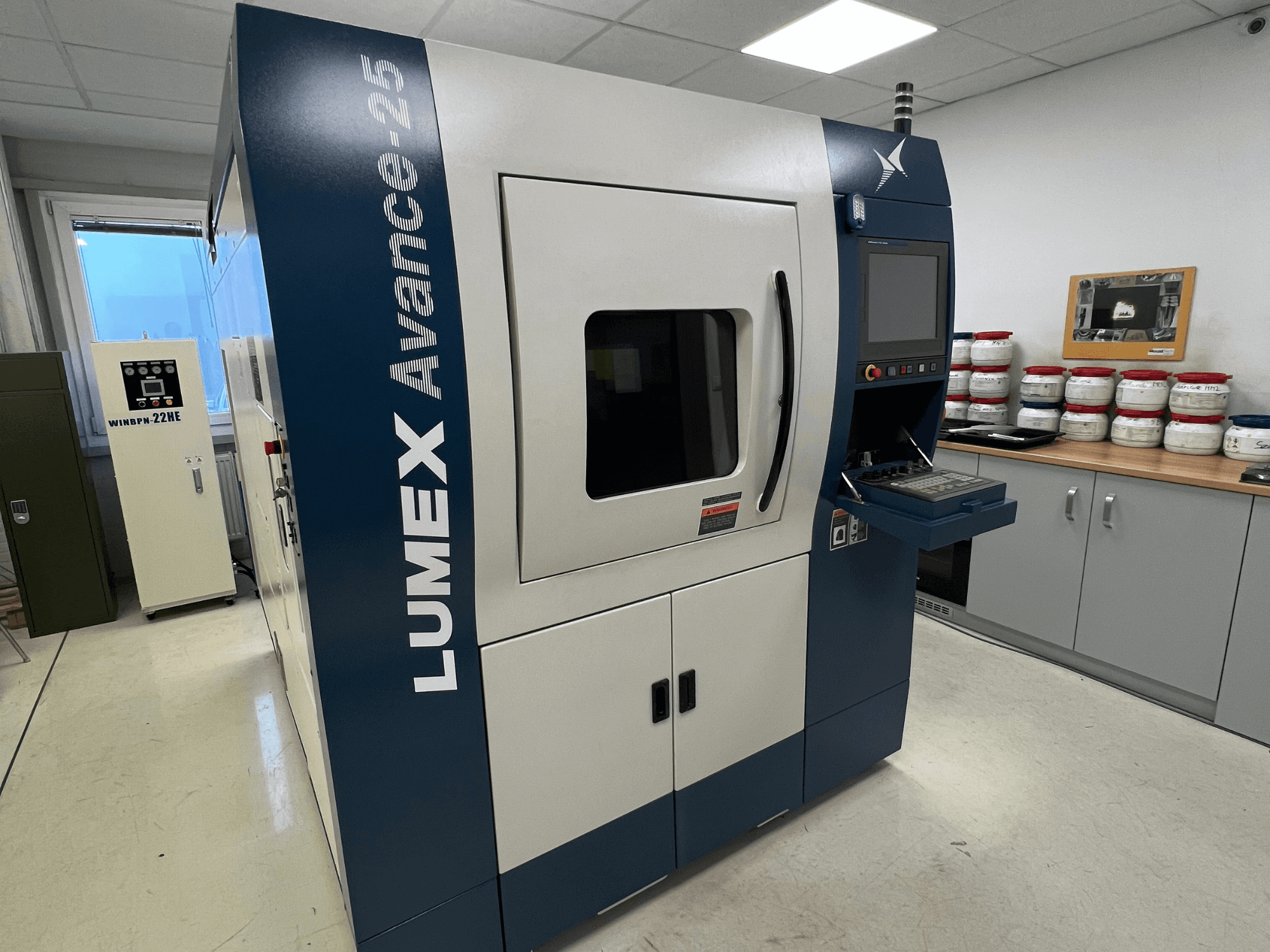

LUMEX Avance-25 3D printer in a lab setting, front view. Control panel with screen and buttons visible, equipment in background.
LUMEX Avance-25 3D printer in a lab setting, front view. Control panel with screen and buttons visible, equipment in background.

Matsuura - Lumex Avance 25 hybrid metal printer HU-3DP-MAT-2019-00001

165,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3s Matsuura Lumex Avance 25 hybrid metal printer was manufactured in 2019. It features a hybrid system combining metal laser sintering and high-speed milling, with a maximum workpiece size of 250 × 250 mm and a table load capacity of 90 kg. The spindle speed ranges from 450 to 45,000 rpm, accommodating a tool magazine of 20 tools. Consider the opportunity to buy this Matsuura Lumex Avance 25 metal 3D printer. Contact us for further details.

Overview

  • brand: Matsuura
  • year: 2019
  • MODEL: Lumex Avance 25 hybrid metal printer
  • application type: 3D Printing
  • Location: Hungary
  • machine type: Metal 3D Printer

Technical Information - Matsuura Lumex Avance 25 hybrid metal printer

Dimensions

  • Machine Height: 2050 mm
  • Machine Weight: 4500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 260 mm
  • Y-axis Travel: 260 mm
  • Z-axis Travel: 100 mm

Additional Information

  • Working hours: 2,000 h

  • Technology: Hybrid system (metal laser sintering + high-speed milling on a single platform)

  • Laser type: Yb fiber laser

  • Laser power: up to 400 W

  • Layer thickness: 0.05 mm

  • Build/work area:

    • Max workpiece size: 250 × 250 mm

    • Table size: 270 × 270 mm

  • Axes/travels:

    • U-axis (sintering table): 185 mm

    • W-axis (powder blade): 522 mm

  • Spindle (milling):

    • Tool holder: BT20 (special Matsuura taper)

    • Tool magazine: 20 tools

  • Accuracy:

    • Positioning accuracy (X/Y/Z): ±0.0025 mm

    • Repeatability (X/Y/Z): ±0.001 mm

  • Materials (typical): Tool steels, maraging steel; stainless steels (e.g., 316L, 630); titanium alloys (Ti‑6Al‑4V, Ti‑6Al‑7Nb)

  • Machine data:

    • Power supply: AC 200/220 V, 50/60 Hz

    • Installed power: approx. 39 kVA

    • Inert gas: Nitrogen / Argon

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
