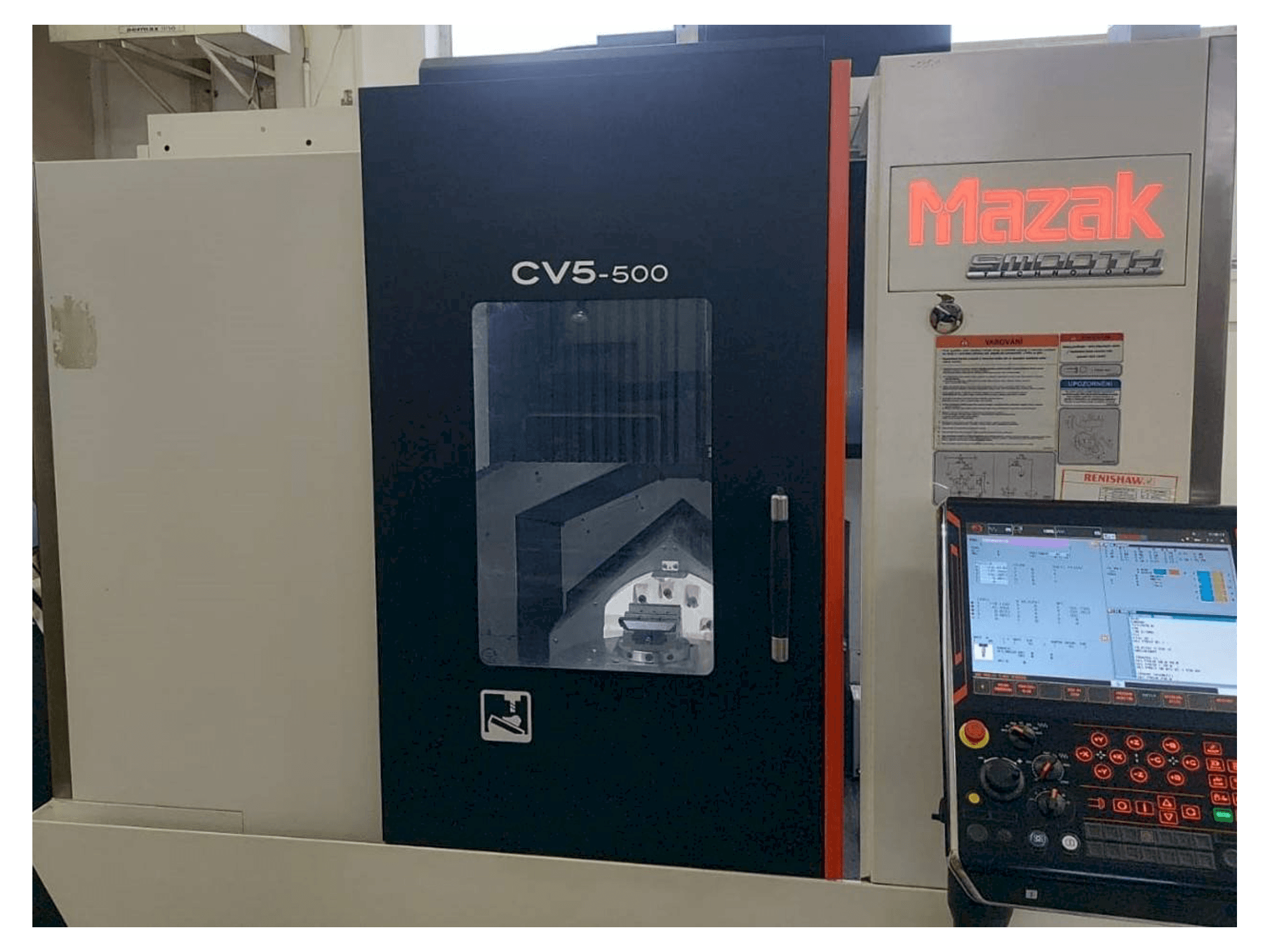

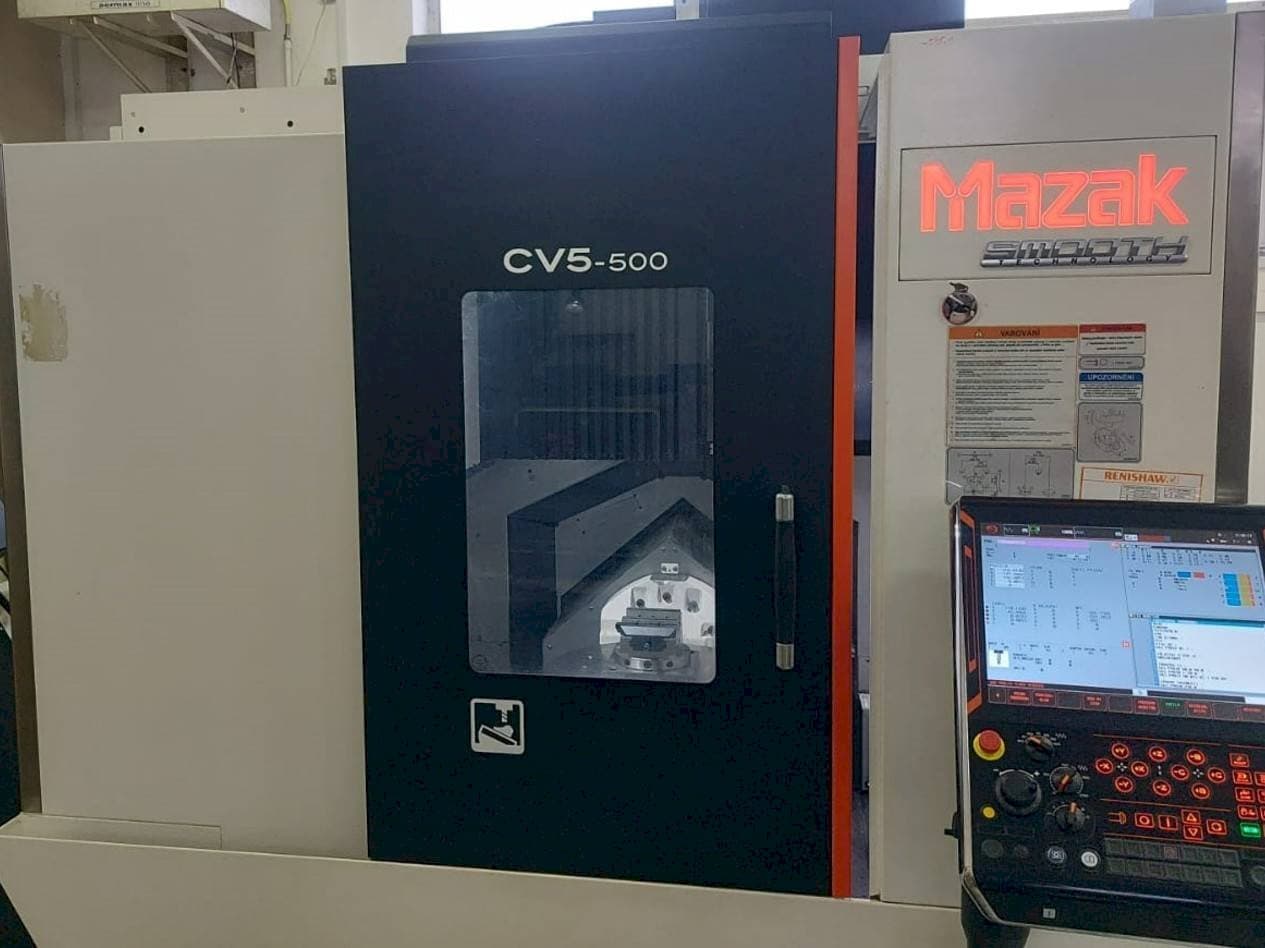

- Mazak CV5-500 Vertical Machining center
This Mazak CV5-500 Vertical Machining Center was manufactured in the year 2021 in Japan and has 5261 production hours, of which 3015 are spindle hours. It is equipped with a Mazak SmoothX control unit and has 5 axis. The machine has a spindle speed of 12000 rpm, is in good condition and well maintained.
Overview
- brand: Mazak
- year: 2021
- MODEL: CV5-500
- production hours: 5261
- application type: Milling
- Location: Slovakia
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak CV5-500
Control Unit
- Control Brand: MAZATROL
- Control Model: SmoothX
Dimensions
- Machine Depth: 2984 mm
- Machine Height: 2933 mm
- Machine Weight: 6780 kg
- Table Length: 500 mm
Movement
- Number of Axes: 5
- X-axis Travel: 730 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 470 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 30
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition!
Technical Machine Benefits
- Maximum workpiece diameter 500 mm
- Maximum workpiece height: 320 mm
- B-axis (table tilt) travel amount/indexing 0. 0001° 220° (±110°)
- C-axis (table rotation) travel amount/indexing 0. 0001° 360°
- Rapid traverse rate (x/y/z): 36 m/min.
- Rapid traverse rate (b/c): 30 min-1
- Distance spindle nose to table center (table vertical) max 565 mm
- Main output (ac inverter motor) 10% ed rating 18,5 kw
- Renishaw tool and workpiece probes (measurement pack 2)
- High-pressure cooling
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
