Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Mazak - fjv 200SI-MIL-MAZ-2000-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Mazak fjv 200 For Sale | gindumac.com

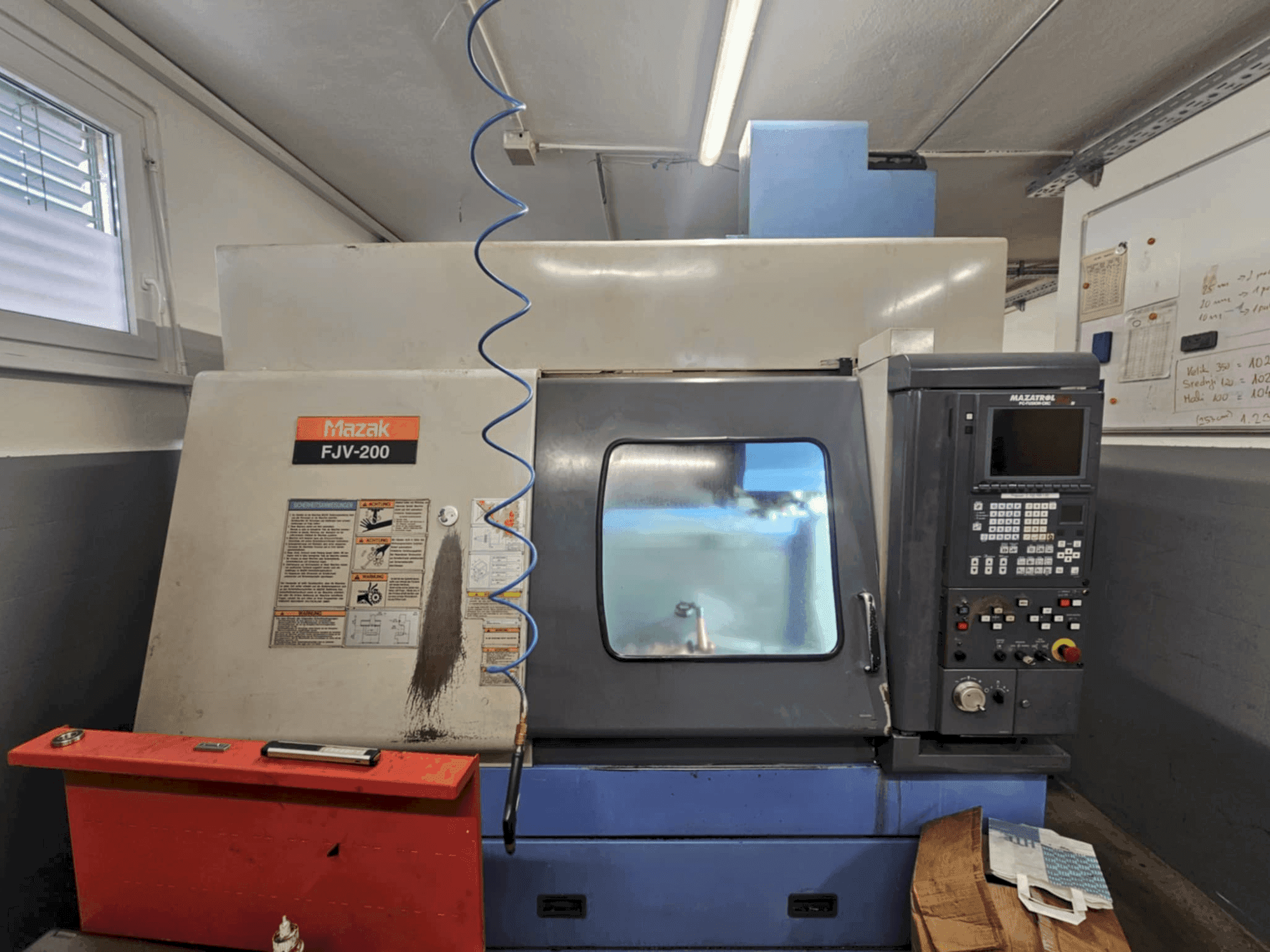

This 3-axis Mazak fjv 200 was manufactured in 2000. A robust vertical machining center featuring a Mazatrol PC-Fusion CNC 640M control, it offers a table size of 800 × 410 mm with a load capacity of 300 kg. The spindle reaches up to 12,000 rpm, driven by an 11-15 kW AC motor. Consider the opportunity to buy this Mazak fjv 200 vertical machining center. Contact us for more information about this machine.
Overview
- brand: Mazak
- year: 2000
- MODEL: fjv 200
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak fjv 200
Control Unit
- Control Brand: MAZATROL
Dimensions
- Machine Depth: 2200 mm
- Machine Height: 2600 mm
- Machine Weight: 5000 kg
- Table Load: 300 kg
Movement
- Number of Axes: 3
- X-axis Travel: 560 mm
- Y-axis Travel: 410 mm
- Z-axis Travel: 410 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Spindle Speed: 12000 RPM
Additional Information
Extra information
Table Size: Approx. 800 × 410 mm
T-slots: Mazak standard
Tool Magazine Capacity: 30 tools
Drive: AC Motor, 200 V
Repeatability: ±0.003 mm
Positioning Accuracy: ±0.005 mm
Main Circuit: 3AC 380 V, 50/60 Hz
Main Motor: 114 A / 200 V
Rated Capacity: 35.6 kVA
Control Circuit: AC 100 V, DC 24 V
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
