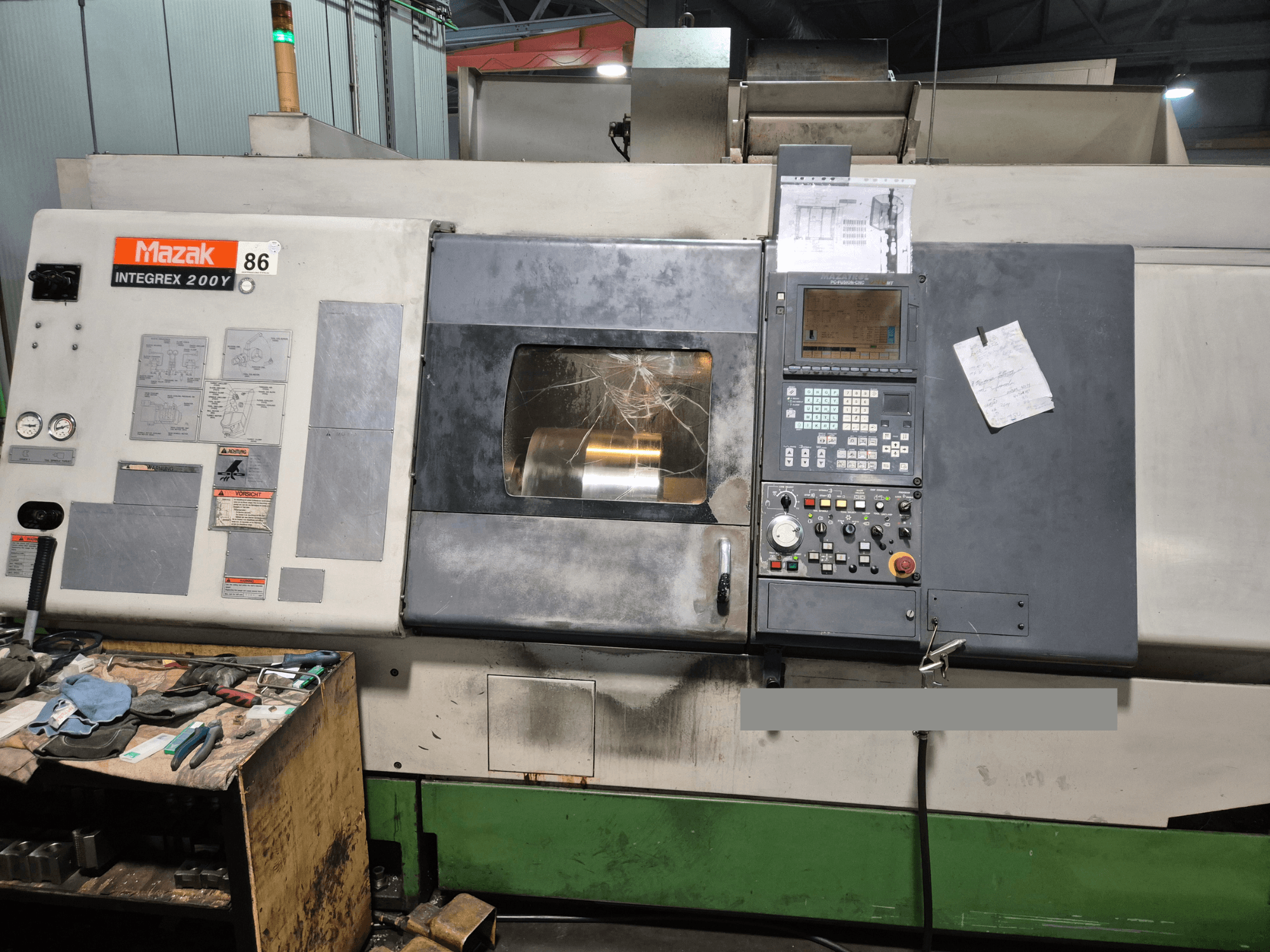

Mazak Integrex 200Y lathe machine, front view, with control panel and tools on a bench. Visible gauges and display screen.
Mazak Integrex 200Y lathe machine, front view, with control panel and tools on a bench. Visible gauges and display screen.

Mazak - INTEGREX 200 YSI-TUR-MAZ-2000-00002

24,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Mazak INTEGREX 200 Y was manufactured in 2000. It features a maximum turning diameter of 540 mm, a swing diameter of 540 mm, and a bar diameter capacity of 51 mm. The machine supports a workpiece weight up to 150 kg and offers a spindle speed range up to 5,000 rpm. It includes a Mazak KM 63 quick change tool system with 20 slots. If you are looking to get high-quality turning capabilities, consider the Mazak INTEGREX 200 Y machine we have for sale. Contact us for more information.

Overview

  • brand: Mazak
  • year: 2000
  • MODEL: INTEGREX 200 Y
  • application type: Turning
  • Location: Slovenia
  • machine type: Horizontal Turning Machine
  • control unit brand: MAZATROL

Technical Information - Mazak INTEGREX 200 Y

Control Unit

  • Control Brand: MAZATROL

Dimensions

  • Machine Depth: 3485 mm
  • Machine Weight: 7500 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 530 mm
  • Y-axis Travel: 70 mm
  • Z-axis Travel: 1065 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Speed: 5000 RPM

Additional Information

  • Max swing diameter: 540 mm

  • Max turning diameter: 540 mm

  • Max turning diameter over slide: 520 mm

  • Max bar capacity: 51 mm

  • Workpiece clamping capacity: 100 kg

  • Shaft workpiece capacity: 150 kg

  • Center height: 1020 mm

  • Main spindle

    • Max torque: 349 Nm

    • Spindle nose: A2-6

    • Chuck diameter: 210 mm

  • C-axis

    • Indexing: 0–360° with 0.001° resolution

    • Max speed: 400 rpm (min⁻¹)

    • Feed range: 1–2,000 deg/min

  • Driven tools (live tooling)

    • Max torque: 62 Nm

    • Speed range: 15–6,000 rpm

  • Tooling system / turret

    • Tool holder system: Mazak KM63 quick-change (fixed tools)

    • Suitable for stationary and powered tools

    • Tool-to-tool change time (step 1): approx. 1.3 s

  • Tailstock

    • Quill (pen) stroke: 140 mm

  • Power and utilities

    • Connected load: 43 kVA

    • Operating voltage: 400 V / 50 Hz

    • Pneumatic supply: 5 bar, 300 l/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
