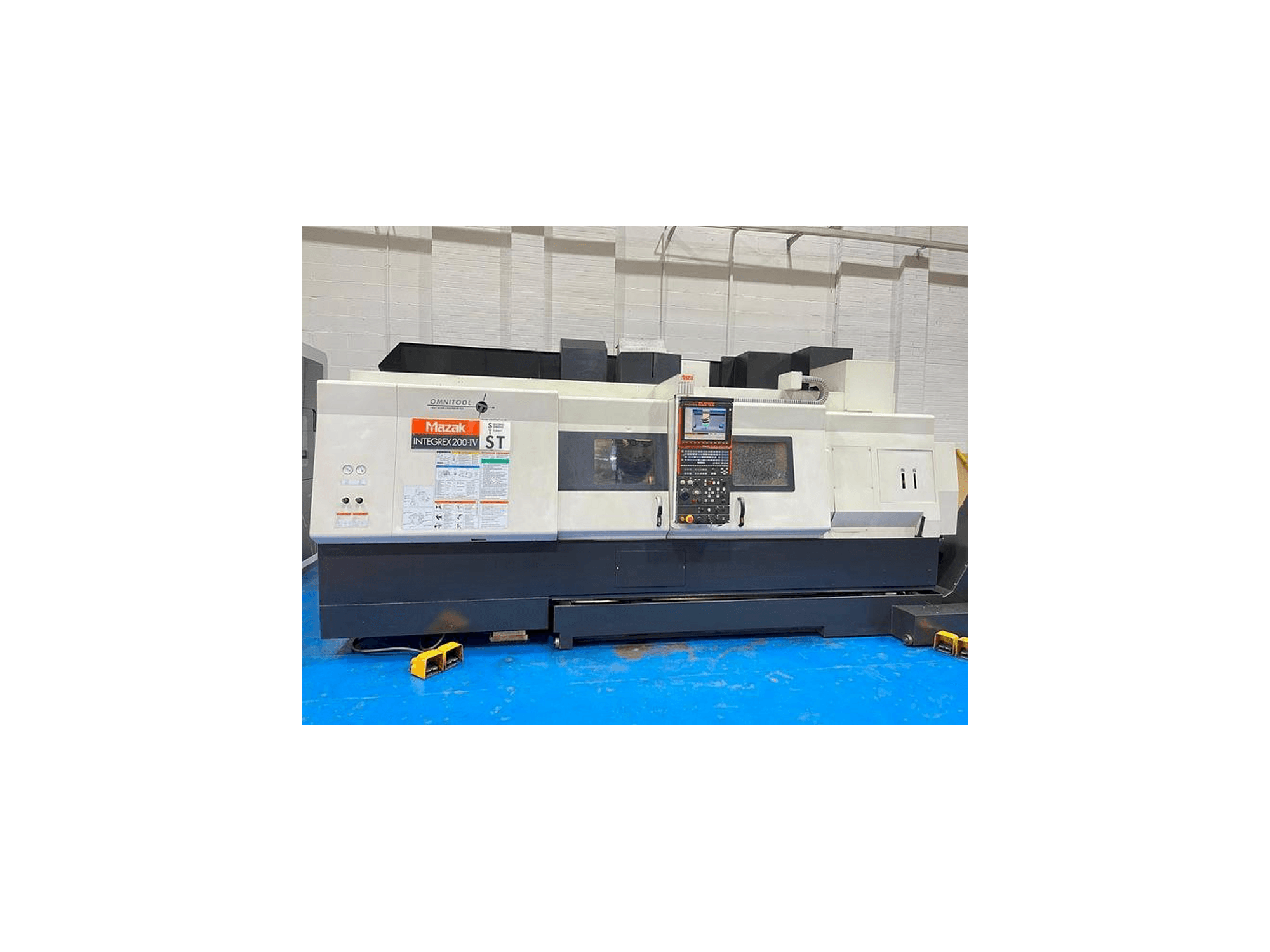

Front view of Mazak Integrex 200IV ST machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 200IV ST

Photo Gallery

Mazak - Integrex 200IV STIT-TUR-MAZ-2010-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

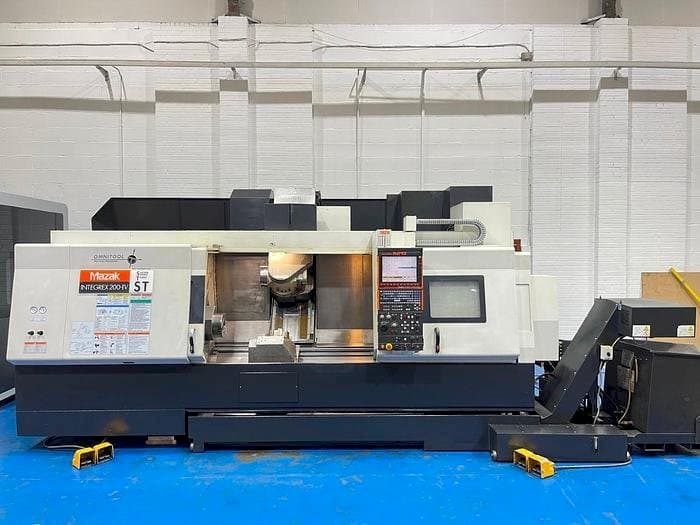

Mazak Integrex 200IV ST lathe machine

Show in original language

This Mazak Integrex 200IV ST lathe machine was manufactured in 2010. This 5 axis machine is operated through a Mazatrol Matrix control unit. It work with a spindle speed up to 5000 rpm and a spindle power of 22 kW. Includes tools magazine of 40 positions.

Overview

brand: Mazak
year: 2010
MODEL: Integrex 200IV ST
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 200IV ST

Control Unit

Model: Matrix
Brand: MAZATROL

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 18.5 kW

Movement

X-AXIS Movement: 580 mm
Y-AXIS Movement: 160 mm
Z-AXIS Movement: 1545 mm
B-AXIS Movement: 225° MM
C-AXIS Movement: 360° MM

Table

Outer length: 1495 mm
Outer width: 660 mm

Turret

Number of turrets: 40 positions
Number of tool slots: 40 positions

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar passage 65 mm
- - C axis on the counter spindle 555 mm
- - Main spindle diameter 210 mm
- - Self-centering counter spindle diameter 210 mm
- - Milling spindle speed 12. 000 rpm
- - Milling spindle power 18,5 kw
- - Spindle connection capto c6
- - Lower turret 9 positions
- - High pressure through the spindle 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
