➤ Used Mazak Integrex 30 Y Universal 1000 | Turn-Mill

Show in original language

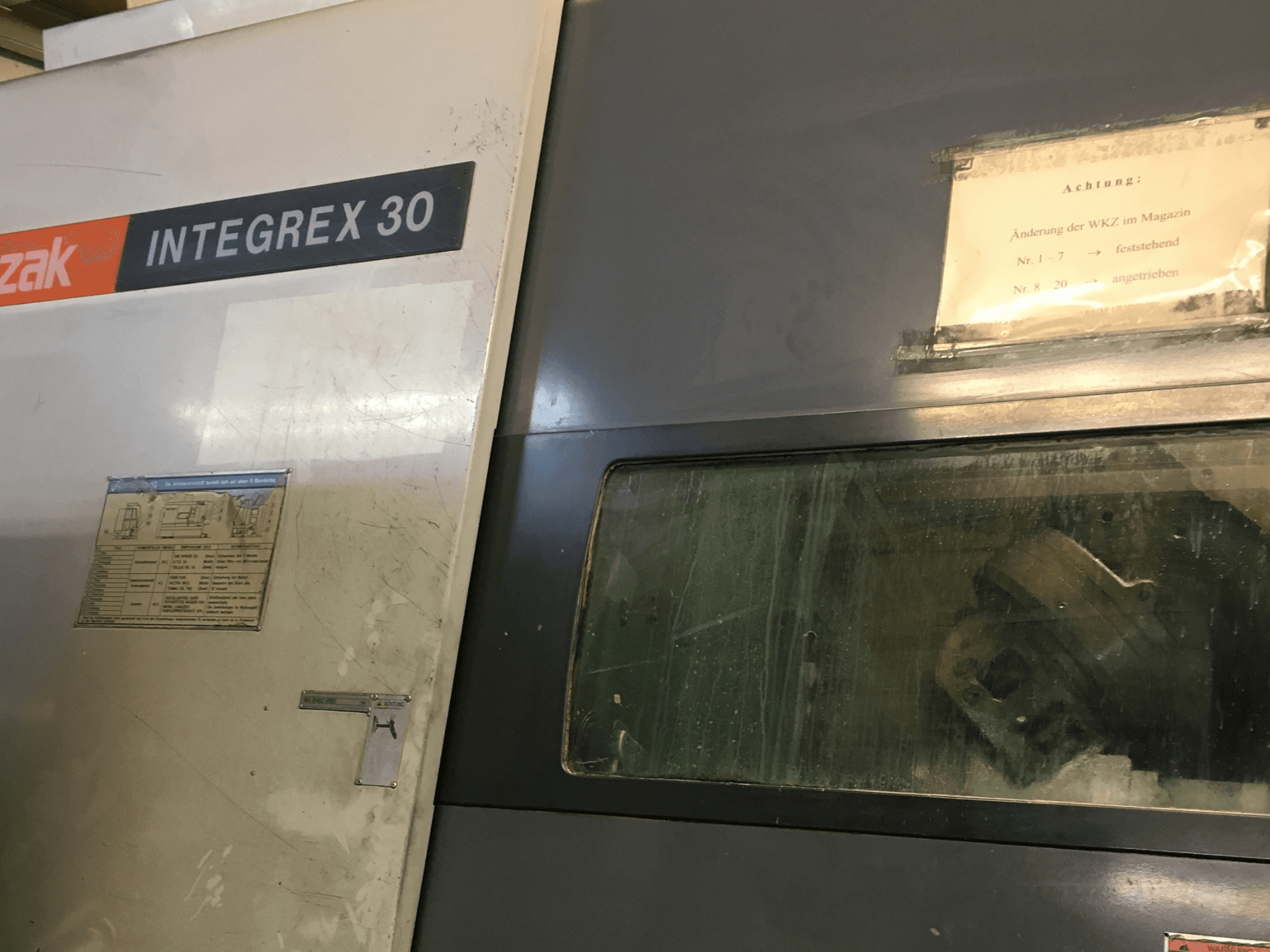

This 4-axis Mazak Integrex 30 Y Universal 1000 was manufactured in 1995. It features a maximum turning diameter over bed of 510 mm and a turning length of 1029 mm. The machine is equipped with a powerful main spindle and a milling spindle, providing versatile machining capabilities. If you are looking to get high-quality turning and milling capabilities, consider the Mazak Integrex 30 Y Universal 1000 turn-mill centre we have for sale. Contact us for further details.

Overview

brand: Mazak
year: 1995
MODEL: Integrex 30 Y Universal 1000
production hours: 138
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Integrex 30 Y Universal 1000

Control Unit

Control Brand: MAZATROL
Control Model: T PLUS

Dimensions

Machine Height: 2800 mm
Machine Length: 6365 mm
Machine Weight: 6500 kg
Machine Width: 3180 mm

Movement

Number of Axes: 4
X-axis Travel: 450 mm
Y-axis Travel: 90 mm
Z-axis Travel: 1029 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 26 kW
Spindle Speed: 3500 RPM
Taper Size: SK 40
Tool Stations: 20

Additional Information

- Bar Capacity: 64 mm

- Max Turning Diameter Over Bed: 510 mm

- Turning Diameter Over Slide: 400 mm

- Turning Length: 1029 mm

- Center Height: 254 mm

- Max Load Capacity Chuck: 200 kgf

- Max Load Capacity Centers: 1000 kgf

- Main Spindle Power: 22 - 26 kW

- Min Main Spindle Speed: 35 rpm

- Max Main Spindle Speed: 3500 rpm

- Rapid Traverse X-axis: 12 m/min

- Rapid Traverse Y-axis: 10 m/min

- Rapid Traverse Z-axis: 18 m/min

- Milling Spindle Power: 7.5 kW

- Milling Head Speed: 15 - 6000 rpm

- Cylinder Specification: Kitagawa F-1768HS

- Chuck Specification (Kitagawa B-10A0815): Max Pressure 2.34 MPa (23.9 kgf/cm²), Max Static Gripping Force 38 kN (3875 kgf), Max Speed 3500 min⁻¹

Included Equipment:

Zool Presetter Arm, Chip Conveyor, Coolant System

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
