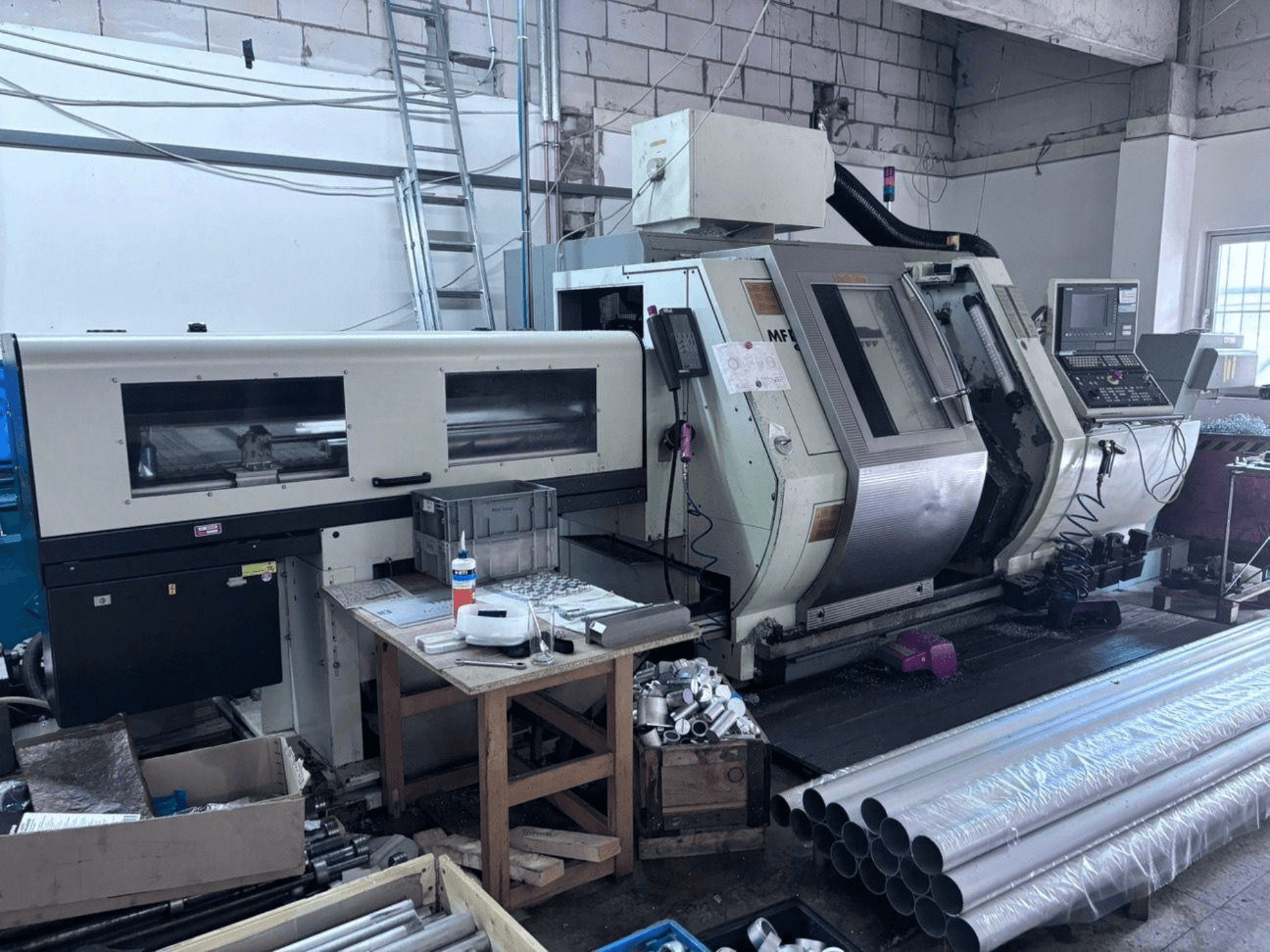

Gildemeister - MF twin 65DE-TUR-GIL-2001-00007

TECHNICAL SPECS:

- Bed Design: 45° slant bed, roller guide ways

- Swing Diameter: 240 mm

- Normal Turning Diameter: 200 mm

- Spindle Distance: 800 mm

- Slide 1 X/Z Travel (Cross/Longitudinal): 190 / 555 mm

- Slide 2 X/Z Travel (Cross/Longitudinal): 190 / 555 mm

- Slide 1 Y-Axis Travel : 40 mm

- Spindle 2 Longitudinal Travel: 600 mm

- Main Spindle 1 (Left):

- Chuck Diameter: 200 mm

- Max Bar Capacity: 65 mm

- Spindle Head Flat Flange: 170 h5

- Spindle Bore: 79 mm

- Draw Tube Inner Diameter: 66 mm

- Front Bearing Diameter: 120 mm

- Drive Power (40/100% ED): 28 / 21 kW

- Speed Range: 25 - 5000 rpm (min⁻¹)

- Knee Speed: 850 rpm (min⁻¹)

- Max Torque (40/100% ED): 320 / 240 Nm

- Drive Type: AC / 1 (ISM)

- C-Axis Rapid Traverse: 250 rpm (min⁻¹)

- C-Axis Holding Torque: 200 Nm

- C-Axis Indexing Accuracy: 0.025°

- Counter Spindle / Main Spindle 2 (Right):

- Chuck Diameter: 200 mm

- Max Bar Capacity: 42 mm

- Spindle Head Flat Flange: 140 h5

- Spindle Bore: 56 mm

- Draw Tube Inner Diameter: 44 mm

- Front Bearing Diameter: 90 mm

- Drive Power (40/100% ED): 18 / 14 kW

- Speed Range: 31 - 6300 rpm (min⁻¹)

- Knee Speed: 1000 rpm (min⁻¹)

- Max Torque (40/100% ED): 130 / 173 Nm

- Drive Type: AC / 1 (ISM)

- C-Axis Rapid Traverse: 250 rpm (min⁻¹)

- C-Axis Holding Torque: 120 Nm

- C-Axis Indexing Accuracy: 0.025°

- Slide 1 (Upper):

- Rapid Traverse X/Z: 20 / 30 m/min (without Y-axis) or 20 / 7.5 / 30 m/min (X/Y/Z with Y-axis)

- Feed Force X/Z: 4 / 7 kN

- Path Resolution: 0.001 mm

- Ball Screw Pitch x Diameter: 12x28 / 15x32 mm (without Y) or 12x28 / 5x32 / 15x32 mm (with Y)

- Slide 2 (Lower):

- Rapid Traverse X/Z: 20 / 30 m/min

- Feed Force X/Z: 4 / 7 daN (kN)

- Path Resolution: 0.001 mm

- Ball Screw Pitch x Diameter: 12x28 / 15x32 mm

- Slide 3 (Spindle 2 Z-Movement):

- Rapid Traverse A: 30 m/min

- Feed Force A: 7 kN

- Path Resolution A: 0.001 mm

- Ball Screw Pitch x Diameter: 15x32 mm

- Tool Turrets (Upper and Lower):

- Number of Tool Stations: 2 x 12

- Tool Shank Diameter (DIN 69880 / VDI): 30 mm

- Driven Tool Stations: 2 x 12

- Driven Tool Power (40/100% ED): 5 kW

- Driven Tool Max Torque (40/100% ED): 16 Nm

- Driven Tool Speed Range: 40 - 4000 rpm (min⁻¹)

- Electrical Data:

- Voltage: 400 V (3-phase, 50 Hz)

- Connected Load: 65 kVA

- Rated Current: 95 A

- Back-up Fuse: 100 A

- Auxiliary Voltages: 230 V / 24 V=

- Hydraulics System:

- Tank Capacity: approx. 25 L

- Pump Power: 2.2 kW

- Max System Pressure: 80 bar

- Clamping Device Pressure: 80 bar

- Coolant System & Filtration:

- Tank Capacity: 200 L

- Pump Power: 1.65 kW

- Delivery Volume at 6 bar: 50 L/min

- Equipped with band/paper filtration unit

- Machine Dimensions & Weight:

- Total Length (with Chip Conveyor): 4770 mm

- Total Depth (with Electrical Cabinet): 2220 mm

- Total Height (with Electrical Cabinet): 1950 mm
