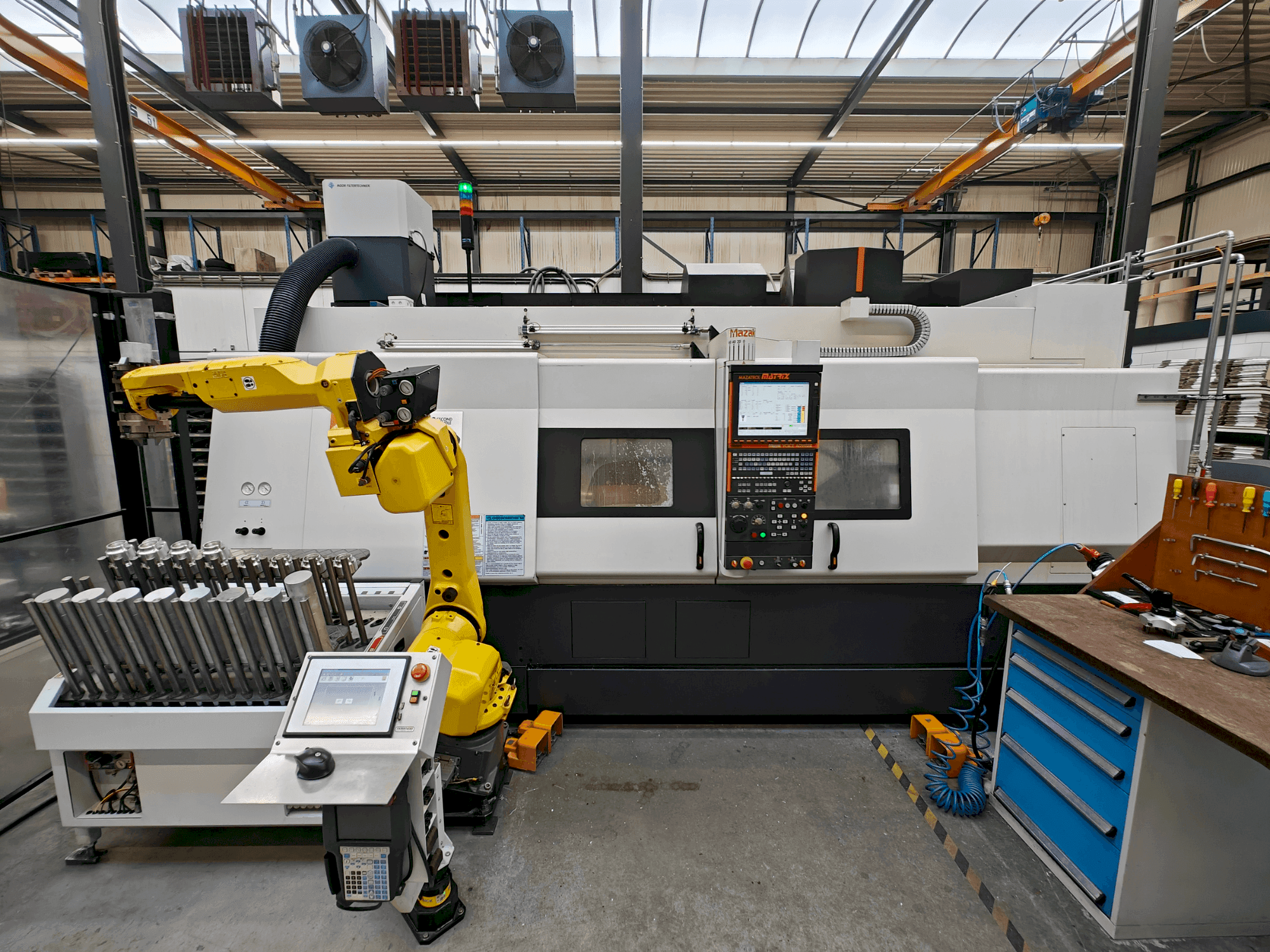

5-Axis lathe manufactured in 2006. This MAZAK Integrex 400-IV-S x 1500 boasts a Hainbuch centrofix with a 12-inch chuck on the main spindle and a Hainbuch collet topplus 100 on the sub spindle. Equipped with a Robojob robot turn assist, Mayfran chip conveyor, and extraction system. Ideal for precision machining tasks. For those seeking efficiency and reliability, consider this MAZAK Integrex 400-IV-S x 1500 lathe we have for sale. Contact us for further information.
Overview
- brand: Mazak
- year: 2006
- MODEL: Integrex 400-IV-S x 1500
- application type: Turning
- Location: Netherlands
- machine type: Lathe
- availability: Immediately
- control unit brand: MAZATROL
- GINDUMAC ID: NL-TUR-MAZ-2006-00001
Technical Information
General Data
- Machine weight: 3000 kg
Control Unit
- Brand: MAZATROL
- Model: MATRIX
Main drive
- Number of spindles: 2
- Spindle speed range: 15 to 12000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 630 MM
- Y-AXIS Movement: 230 MM
- Z-AXIS Movement: 1585 MM
Media
- Chip conveyor: Yes
Additional Equipment
- - Incl a robot turn assist from Robojob.
Additional Information
- Technical Machine Benefits:
- - The main spindle has a hainbuch centrofix with 12 inch chuck and collet topplus 100.
- - Sub spindle also equipped with hainbuch collet topplus 100.
- - Extraction included.
- - New mayfran chip conveyor.
- - Coolant tank capacity 444l
- - Ca 4 months delivery time.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
