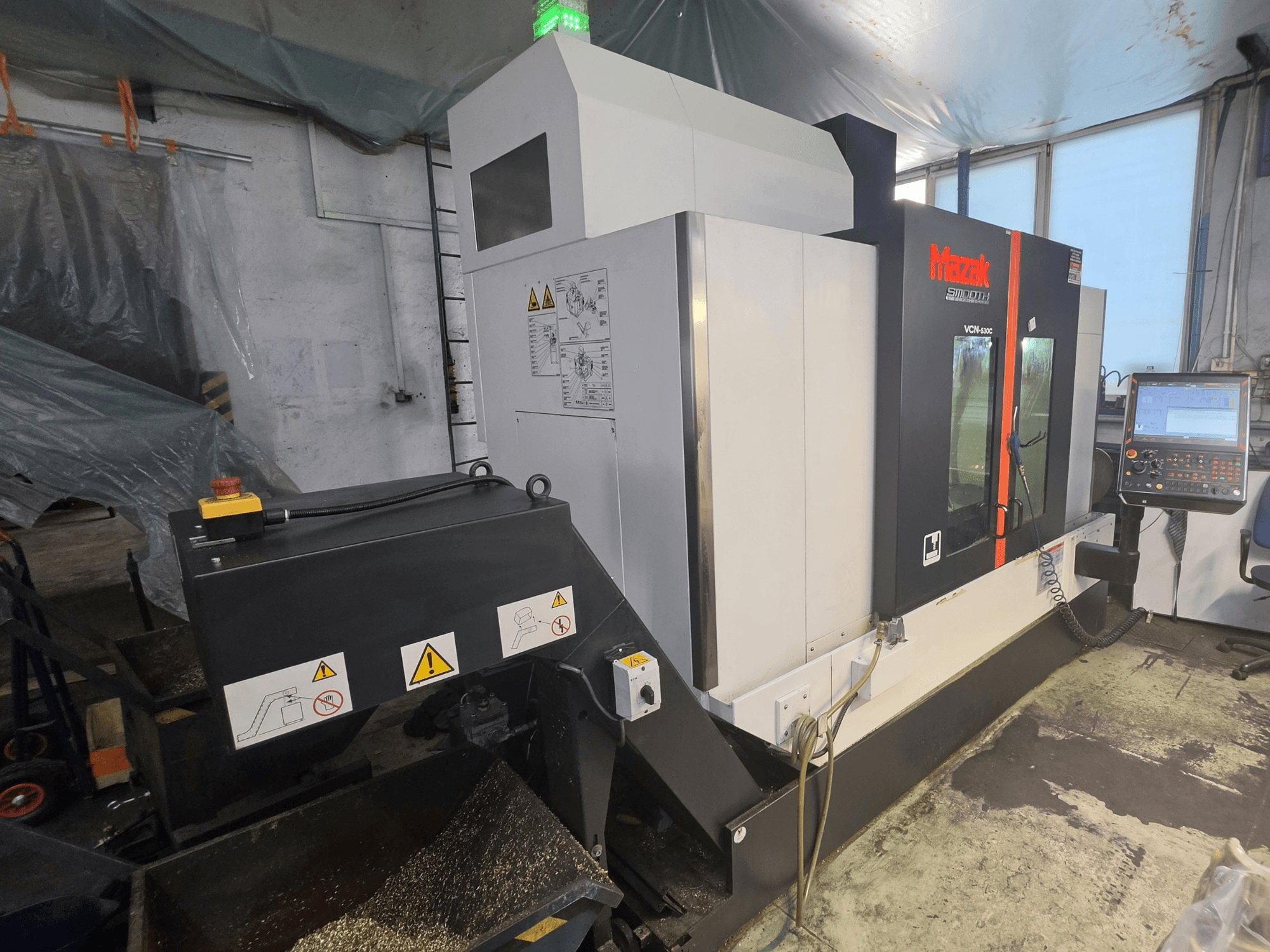

Mazak - MAZAK VCN-530CPL-MIL-MAZ-2020-00001

Working area and travels

• Table-to-spindle nose: 150–660 mm

• Column surface to spindle centre: 586 mm

Table

• Dimensions: 1,300 × 550 mm

• T-slots: 5 × 18 mm; pitch 100 mm

Spindle

• Drive: Electrically selected two-range

• Spindle bearing bore: 70 mm

• Acceleration time: 2.0 s

• Motor power: 18.5 kW (5 min) / 11 kW (40% ED) / 7.5 kW (S1)

Feed rates

• Rapid traverse X/Y/Z: 42 m/min

• Cutting feed X/Y/Z: 1–42,000 mm/min

Automatic tool changer

• Max tool diameter: 80 mm (adjacent tools) / 125 mm (adjacent pockets empty)

• Max tool length: 350 mm (from gauge line)

• Tool selection: MAZATROL random memory, shortest-path

• Tool-to-tool time: 1.3 s

Coolant and chip management

• Through-spindle high-pressure coolant: approx. 15 kgf/cm² (~14.7 bar)

• Coolant tank: 250 L

• Coolant flushing for covers

• Manual washdown gun

• Workpiece air blast

• Preparation for mist extraction

Control functions and probing preparation

• Synchronous tapping

• Maximum program size: 8 MB

• G00 Slope Constant (rapid movement optimisation)

• Preparation for Renishaw OMP60 workpiece probe

Machine dimensions

• Floor space: 2,880 × 3,102 mm

Additional equipment

• Kitagawa NC rotary table, MR250 series (Type: MR250RAE13)

  • Date of manufacture: Oct 2020

  • Weight: 85 kg

  • Mechanical mounting for MR250 included

• CROWTHER left-side hinged-belt chip conveyor

• Additional working-area lighting

• Three-colour LED signal tower

• Polish manuals and safety labels
