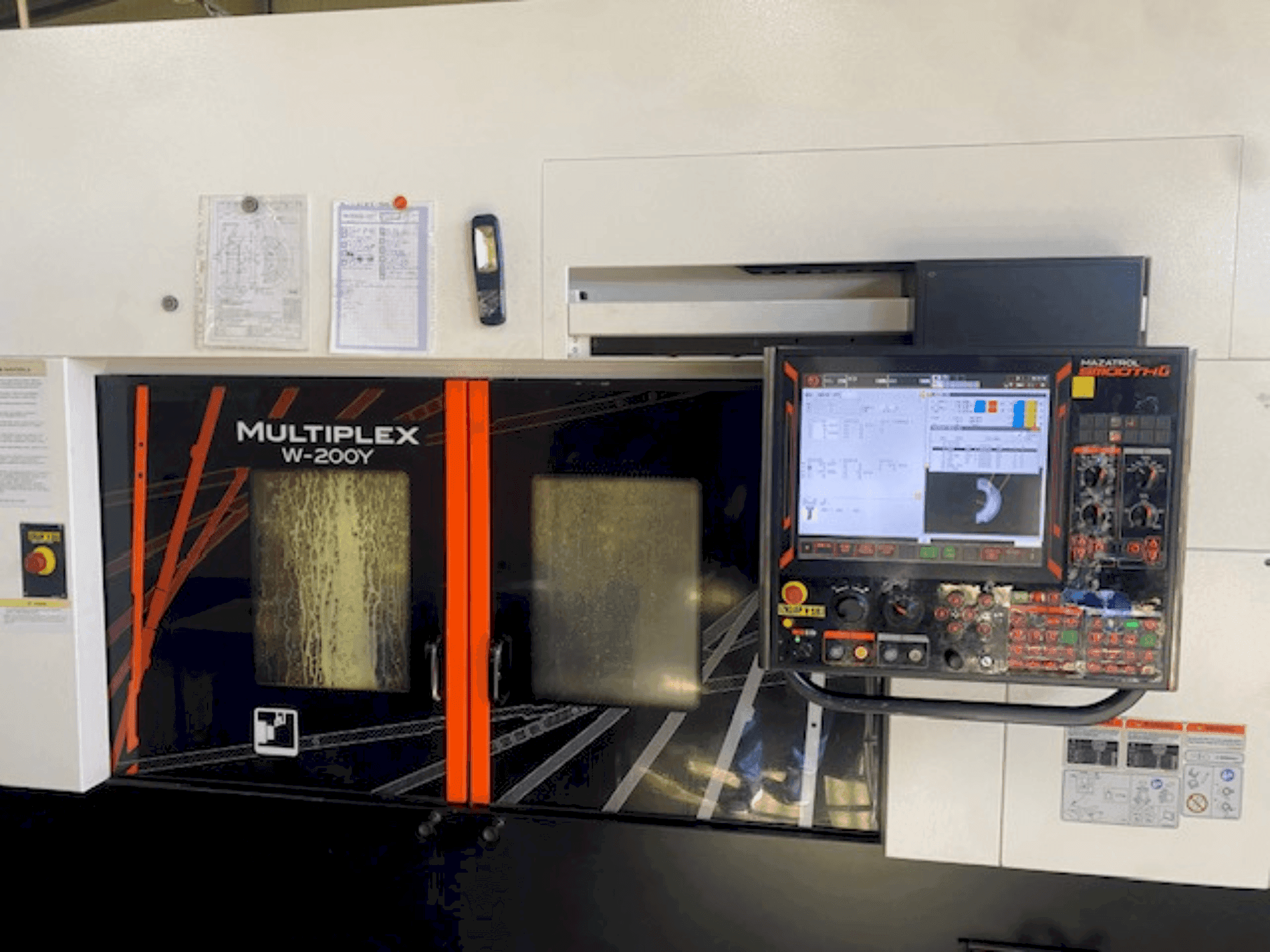

Front view of Mazak multiplex 200 y  machine

Mazak - multiplex 200 ySI-TUR-MAZ-2019-00001

335,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis Mazak multiplex 200 y multi-spindle turning machine was manufactured in 2019. It features dual turrets with 12 tool positions each and a maximum spindle speed of 5,000 rpm. The machine supports a maximum turning diameter of 320 mm and a machining length of 300 kg. Rapid traverse rates are impressive at 35 m/min for X1/X2 and 42 m/min for Z1/Z2. A great opportunity to buy this Mazak multiplex 200 y multi-spindle turning machine. Contact us for further details.

Overview

  • brand: Mazak
  • year: 2019
  • MODEL: multiplex 200 y
  • application type: Turning
  • Location: Slovenia
  • machine type: Multi-Spindle Turning Machine
  • availability: Immediately

Technical Information - Mazak multiplex 200 y

Main drive

  • Spindle speed range: 5000 rpm 1/MIN
  • Spindle motor power: 22.0 kW
  • Spindle bore: Depends on the type of clamping head used
  • Number of axis: 6

Movement

  • X-AXIS Movement: 275 mm
  • Y-AXIS Movement: 100 mm
  • Z-AXIS Movement: 490 mm

Turret

  • Number of turrets: 2

Tools

  • Number of index: 12

Media

  • Air pressure: 5.0 bar

    Additional Equipment

    • - Gantry loader
    • - For use with Kitagawa 88208 clamping head
    • - Coolant tank capacity: 265 L
    • - Power requirement (rated connected power): 76.8 kVA

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Clamping head size: 320 mm
        • - Maximum turning diameter: 320 mm // maximum machining diameter: 180 mm // maximum machining length of unsupported workpiece: 300 kg // maximum weight support for unsupported workpiece: 65 mm
        • - Spindle nose: a2-4
        • - Bore diameter through spindle: 76 mm
        • - Maximum torque: 467 nm // maximum torque of driven tools: 47. 0 nm
        • - Tool sizes: external turning diameter od: 25 mm, internal turning diameter d: 40 mm, milling arbor: 20 mm, threading tap: m12, face milling cutter: 20 mm
        • - Positioning time per step: 0. 20 seconds // positioning time per full rotation: 0. 60 seconds
        • - Maximum milling spindle speed: 5,000 rpm
        • - Power of driven tools (10-minute rated power): 5. 5 kw
        • - Rapid traverse x1/x2: 35 m/min // rapid traverse z1/z2: 42 m/min // rapid traverse y1/y2: 15 m/min

      Extra information

      • - Machine still under power
