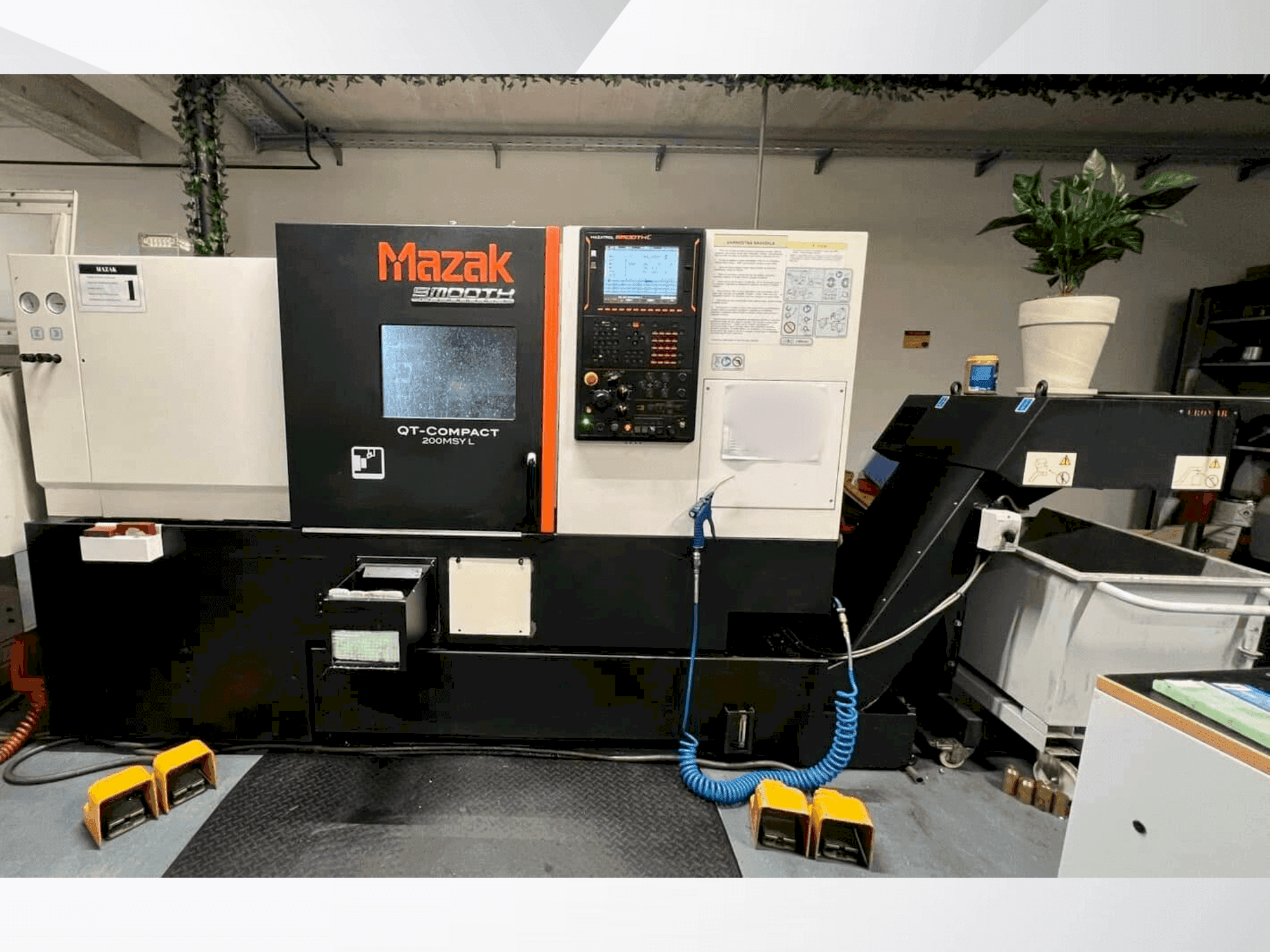

- ➤ Used Mazak QUICK TURN COMPACT 200 MSY L | Lathe
This 4-axis Mazak QUICK TURN COMPACT 200 MSY L was manufactured in 2018. It features a maximum swing of 695 mm and a machining diameter of 380 mm. Equipped with a Mazatrol SmoothG CNC control system, it ensures precision and efficiency. The main spindle supports up to 5000 rpm, while the second spindle reaches 6000 rpm. A great opportunity to buy this Mazak QUICK TURN COMPACT 200 MSY L lathe. Contact us for further details.
Overview
- brand: Mazak
- year: 2018
- MODEL: QUICK TURN COMPACT 200 MSY L
- application type: Turning
- Location: Slovenia
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak QUICK TURN COMPACT 200 MSY L
Control Unit
- Control Brand: MAZATROL
- Control Model: Mazatrol SmoothG CNC
Movement
- X-axis Travel: 234 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 625 mm
Technical Specification
- Max. Workpiece Diameter: 695 mm
- Spindle Speed: 5000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
1. Capacity:
- Maximum Swing: 695 mm
- Maximum Machining Diameter: 380 mm
- Maximum Bar Work Capacity: 65 mm
2. Spindle:
- Main Spindle Chuck Size: 8 inches
- Main Spindle Maximum Speed: 5000 rpm
- Second Spindle Chuck Size: 6 inches
- Second Spindle Maximum Speed: 6000 rpm
3. Turret:
- Number of Tools: 12
- Maximum Speed: 5000 rpm
4. Axes Travel:
- X Axis: 234 mm
- Y Axis: 100 mm
- Z Axis: 625 mm
- W Axis: 585 mm
5. Control System:
- Mazatrol SmoothG CNC
Installed Options : EIA / ISO programming Spiral machining EIA 3D compensation Rotation function Geometric functions Scaling External data I/O Shape compensation Thread cutting cycle Sub C-axis control Inverse time feed Polar coordinate input G54.1 additional work offsets Synchronous mill tapping Variable 600 macro sets Cylinder & polar coordinate interpolation EIA helical tap cycle EIA pattern cycle Seamless corner control Variable acceleration control Rapid overlap Lead error compensation
Machine Hours : Power on time: 12,929 h Auto operation time: 17,565 h Auto cutting time: 15,375 h
Equipment included: Turrets: 2 × revolver head – one on each side of the machine Driven tools: 1 × driven tool on the Z axis 1 × driven tool on the X axis Tool holders: Fixed holders for drilling Fixed holders for external turning
Extra Information
Full equipped version with C axis / Y axis / Subspindle / Long bed
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
