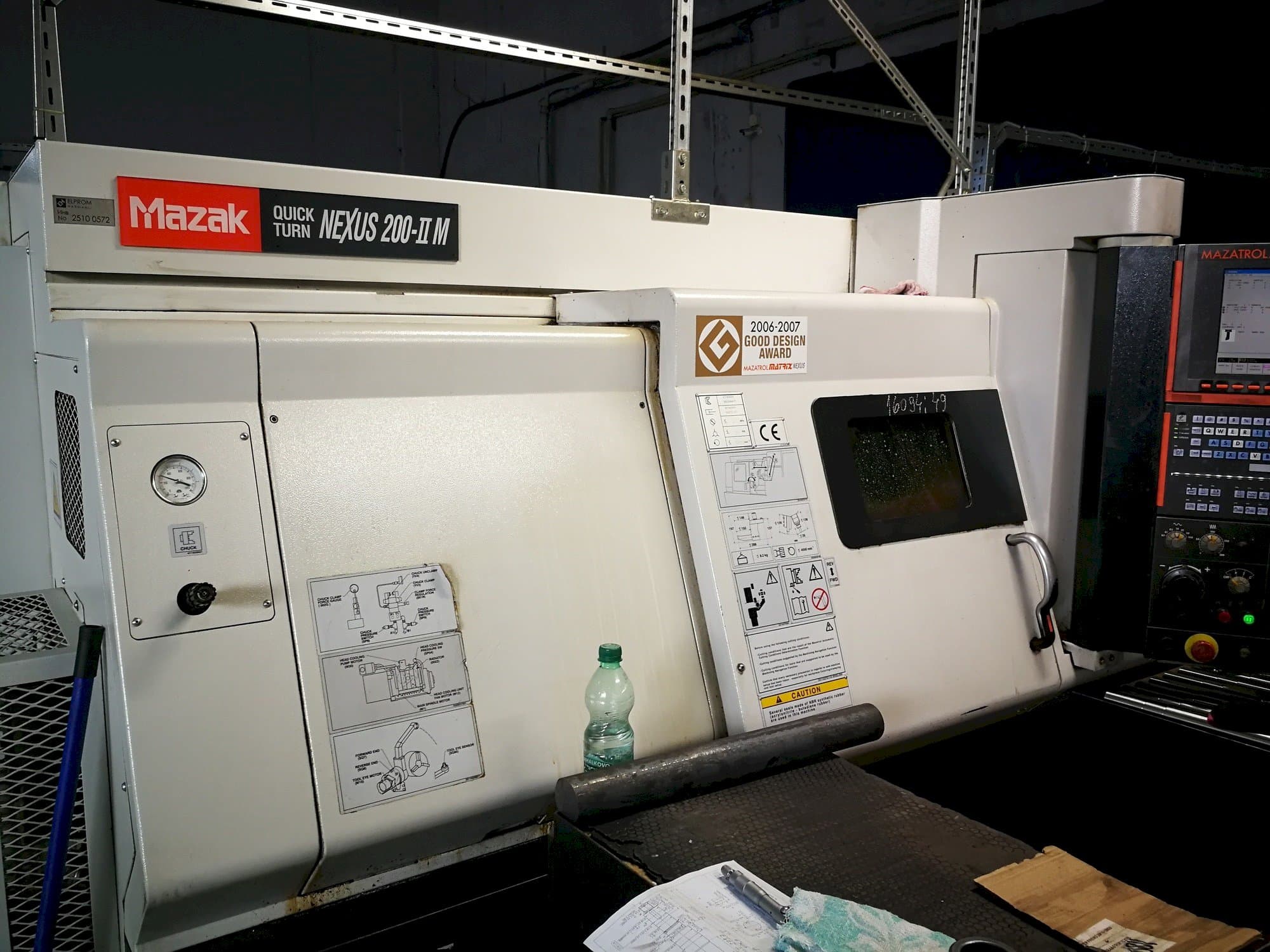

Mazak Quick Turn Nexus 200-II M Lathe

Show in original language

This Mazak Quick Turn Nexus 200-II M Lathe was made in the united Kingdom in 2008. It shows 39137 hours of which 16099 are cutting hours. It is operated through a Mazatrol control unit. This machine works with a spindle speed range 35 - 4000 rpm.

Overview

brand: Mazak
year: 2008
MODEL: Quick Turn Nexus 200-II M
production hours: 16099
application type: Turning
Location: Bulgaria
machine type: Horizontal Turning Machine

Technical Information - Mazak Quick Turn Nexus 200-II M

General Data

Machine weight: 5200 KG

Main drive

Spindle speed range: 35 - 4000 1/MIN
Spindle motor power: 26 kW
Spindle bore: 88 mm
Tool taper: A2 - 8 ''

Movement

X-AXIS Movement: 230 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 1085 mm
Z-AXIS Rapid traverse: 33 m/min
C-AXIS Rapid traverse: 555 RPM

Turret

Number of turrets: 12

Tail Stock

Pinol way: 1050 mm
Pinol tool taper: MK 4

Media

Main electronic connection: 3 x 400V / 50Hz
Power consumption: 46.9 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing diameter: 675 mm
- - Max. Machining diameter: 380 mm
- - Max. Machining length: 1. 000 mm
- - Max. Bar material diameter: 74 mm
- - Torque: 465 nm
- - Spindle indexing increments: 0. 001°
- - *rotary tools:
- - Spindle speed: 25 – 4. 500 rpm
- - Power: 5. 5 kw
- - Max. Torque: 35 nm
Qualitative Machine Benefits:
- - *tools included: 1. - lathes for external processing
- - 2. - lathes for external processing
- - 3. - lathes for external processing
- - 4. - lathes for external processing
- - 5. - lathes for external processing
- - 6. - holder for fastening bushings with diameter ф32mm
- - 7. - holder for fastening bushings with diameter ф32mm
- - 8. - lathes for external processing
- - 9. - empty nest
- - 10. - holder for fastening bushings with diameter ф32mm

Extra information

- Tools included: 11 - lathes for external processing 12 - lathes for external processing - double-sided 13 - rotating holder - axial 14 - holder for fastening bushings with diameter ф32mm 15 - holder for fastening bushings with diameter ф32mm 16 - rotating holder - radial

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
