Mazak - Quick Turn Nexus 200-II MSHU-TUR-MAZ-2013-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Mazak Quick Turn Nexus 200-II MS | Horizontal Lathe

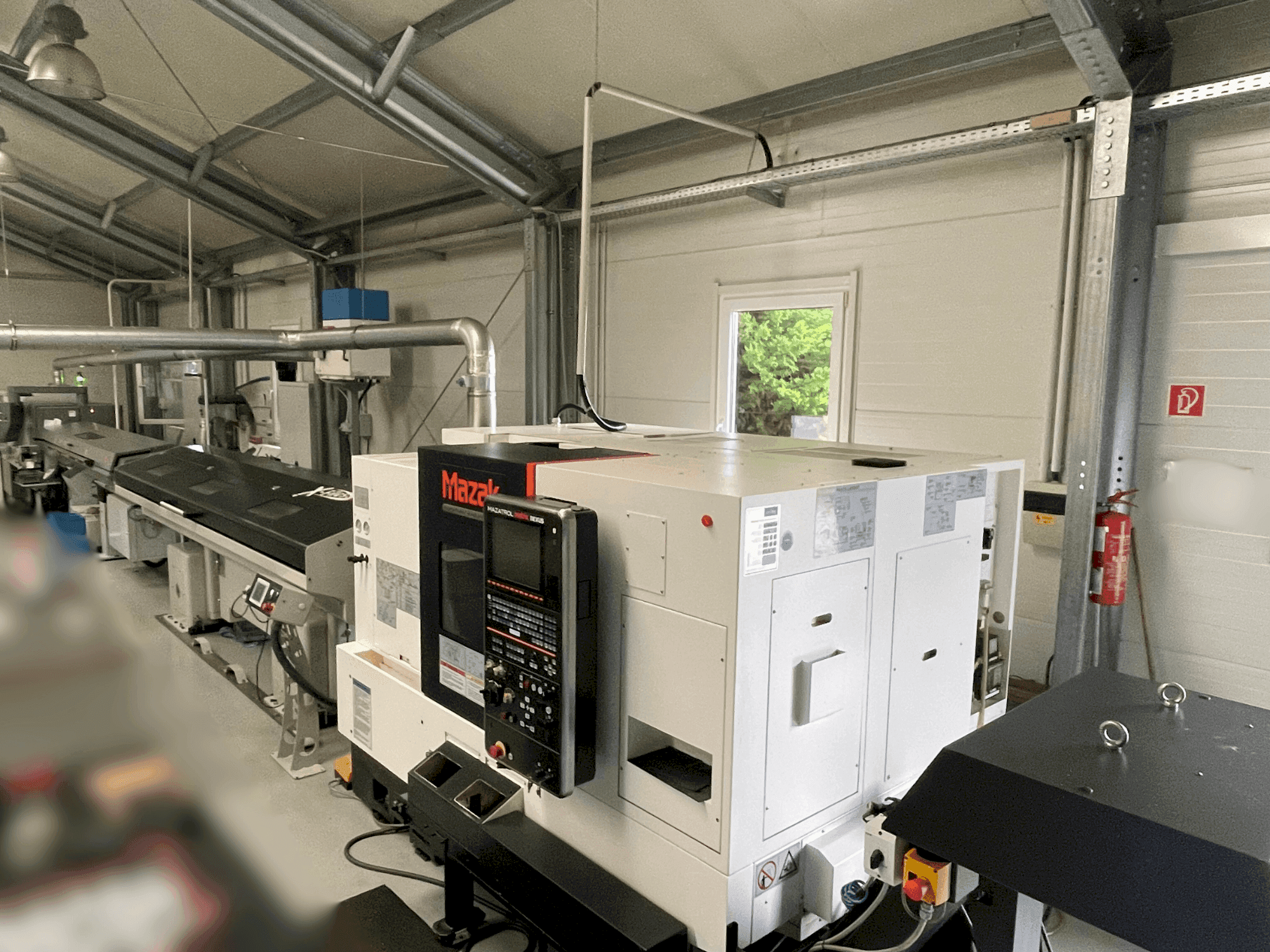

This 4-axis Mazak Quick Turn Nexus 200-II MS horizontal turning machine was manufactured in 2013. It features a 12-position driven turret head, main spindle speed of 5000 rpm, and a counter spindle speed of 6000 rpm. The machine includes a Mazatrol Matrix Nexus controller and a high-performance cooling system. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn Nexus 200-II MS machine we have for sale. Contact us for more information.
Overview
- brand: Mazak
- year: 2013
- MODEL: Quick Turn Nexus 200-II MS
- application type: Turning
- Location: Hungary
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak Quick Turn Nexus 200-II MS
Control Unit
- Control Brand: MAZATROL
- Control Model: MATRIX NEXUS
Movement
- X-axis Travel: 230 mm
- Z-axis Travel: 575 mm
Technical Specification
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- Standard tool package included
- Specific tool holders and sockets provided
- Coolant tank volume: 190 L
- High performance cooling system - 520W
- Complete cooling system
Machine Benefits
Qualitative Machine Benefits
- Includes services such as relocation detector, token system, and chuck opening/closing feedback
- Side chip conveyor preparation
- Intelligent thermal field and security area
- Mazak live voice help
- Voltage converter for the european market
- Health and safety features including door opening control and full machine enclosure
- Comprehensive nc controller features with 600 user macros and usb i/f ports
Technical Machine Benefits
- Maximum torque: 435 nm
- Maximum turning diameter: 675 mm
- Turning length: 575 mm
- Maximum machinable diameter: 380 mm
- Size of bar material that can be machined: 77 mm
- Tool size (external turning): 25 mm²
- Tool size (internal diameter turning): Ø40 mm
- Tool change time (one step): 0. 2 s
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
