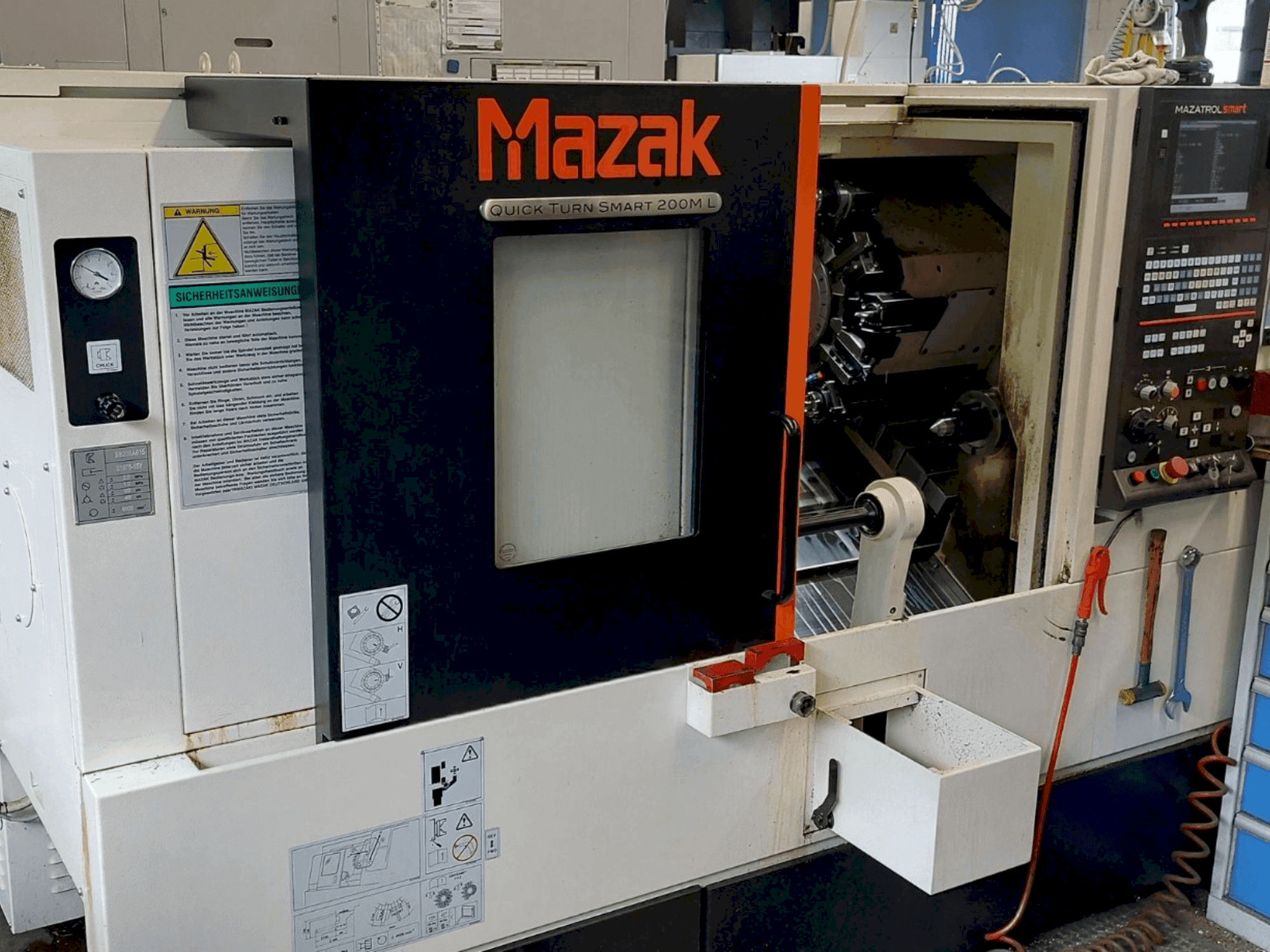

Front view of Mazak QUICK TURN SMART 200 ML machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak QUICK TURN SMART 200 ML

Photo Gallery

Mazak - QUICK TURN SMART 200 MLDE-TUR-MAZ-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak QUICK TURN SMART 200 ML | Lathe For sale

Show in original language

This 3-axis Mazak QUICK TURN SMART 200 ML lathe was manufactured in 2015. It features a maximum machining diameter of 360mm, a length of 535mm, and a spindle bore of 76mm. The main spindle reaches speeds up to 5,000 min-1, and the turret holds 12 tools. Equipped with MAZAK Smart control, it ensures precision and efficiency. Ideal for both chuck and shaft machining, buy this Mazak QUICK TURN SMART 200 ML lathe. Contact us for further details regarding this lathe.

Overview

brand: Mazak
year: 2015
MODEL: QUICK TURN SMART 200 ML
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak QUICK TURN SMART 200 ML

Control Unit

Control Brand: MAZATROL
Control Model: Smart control

Dimensions

Machine Depth: 2630 mm
Machine Height: 1700 mm
Machine Weight: 4900 kg

Movement

Number of Axes: 3
X-axis Travel: 225 mm
Z-axis Travel: 605 mm

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

Additional equipment

The turret will be fully equipped with tool holders, 3 of which are driven.
High pressure system: combiloop CL 1N / dimensions: 506 x 516 x 655 mm / weight 30 kg

Machine Benefits

Qualitative Machine Benefits

Precision control with mazak smart control.
Robust tailstock for stable and precise operations.

Technical Machine Benefits

Tank capacity: 180 l
Spindle motor torque: 358 nm
Max feed (x-axis): 65 msec // max feed (z-axis): 80 msec
Standard machining diameter: 235 mm
Max machining diameter: 360 mm // max machining length: 535 mm // max bar diameter (main spindle): 65 mm // max workpiece weight for chuck machining: 300 kg // max workpiece weight for shaft machining: 500 kg
Holder cross-section (turning tool): 25 mm
Max milling spindle speed: 4500 min-1 // max milling spindle torque: 47 nm
Mounting: mk5
Travel range (tailstock body): 565 mm
Efficient feed speeds for increased productivity.

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
