Mazak - VARIAXIS 500 5XDE-MIL-MAZ-2003-00001

Name: Mazak VARIAXIS 500 5X
Brand: Mazak
SKU: DE-MIL-MAZ-2003-00001
Price: 40000 EUR
Availability: InStock

40,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak VARIAXIS 500 5X For Sale | gindumac.com

Show in original language

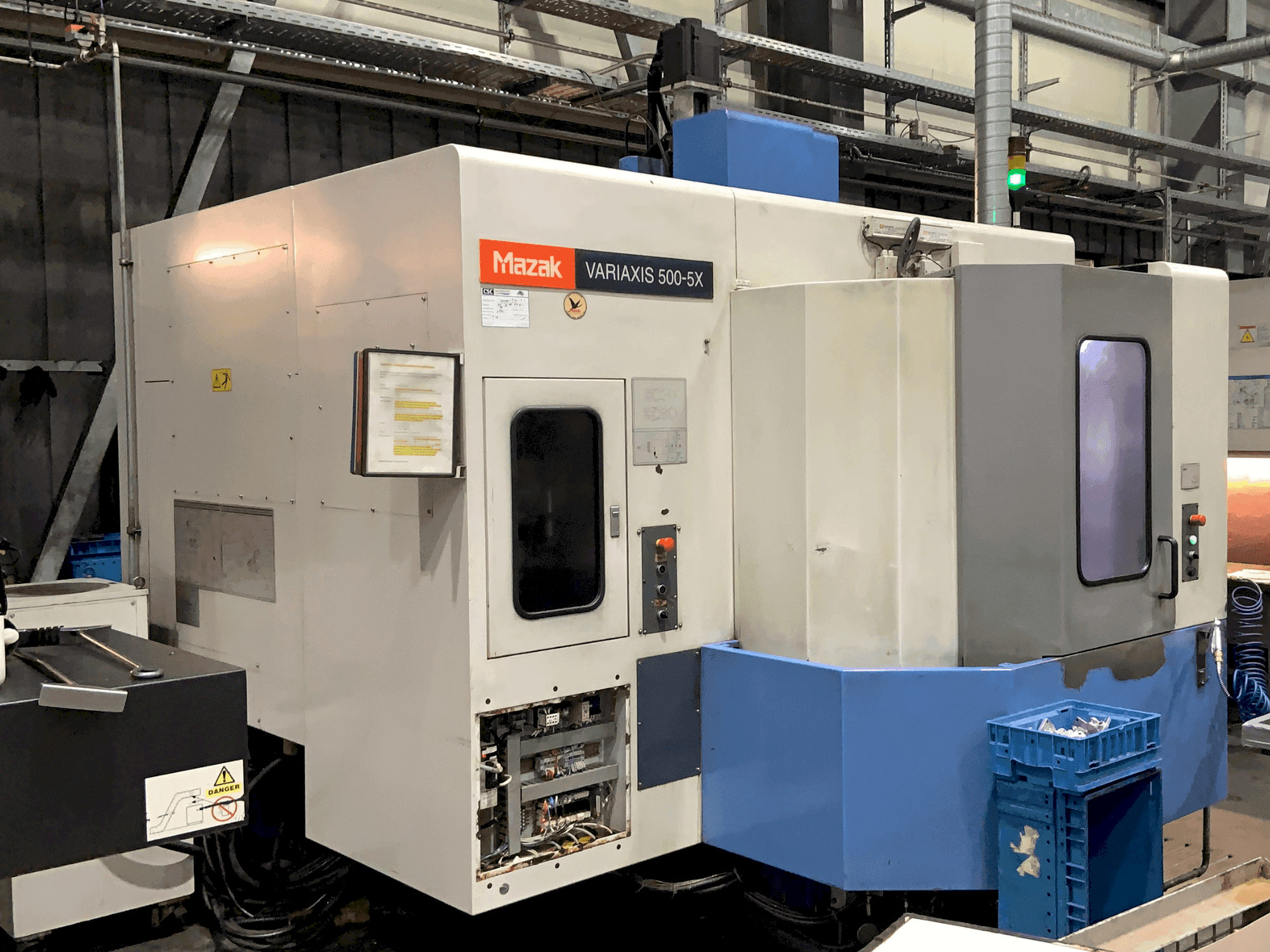

This 5-axis Mazak VARIAXIS 500 5X vertical machining centre was manufactured in 2003. It features a robust table size of 400 x 400 mm, capable of handling a load up to 300 kg. The spindle operates at a speed range of 35-12,000 min-1 with a maximum torque of 99Nm. It includes a 40-place tool magazine and a high-capacity 300l coolant system. Ideal for complex machining tasks. For more information about this vertical machining centre, please reach out to us.

Overview

brand: Mazak
year: 2003
MODEL: VARIAXIS 500 5X
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - Mazak VARIAXIS 500 5X

Main drive

Spindle speed range: 12000 rpm 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 510 mm
X-AXIS Feed Force: 50000 mm/min
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Feed Force: 50000 mm/min
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Feed Force: 50000 mm/min
Z-AXIS Rapid traverse: 50 m/min
A-AXIS Movement: -120° to +30° MM
C-AXIS Movement: 360° MM

Table

Outer length: 400 mm
Outer width: 400 mm
Table load: 300 kg

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Additional Equipment

- Tank 300l, flow rate at the pump approx. 15 l/min, pressure approx. 0.9 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5 x 18mm t-slots, 80mm spacing
- - Table height from floor: 800 mm
- - Tool change time 4. 5s
- - Workpiece dimensions max. : 500 x 405 mm
- - Spindle nose to table: 190-650 mm
- - Front of column to centre of spindle: 140-600 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
