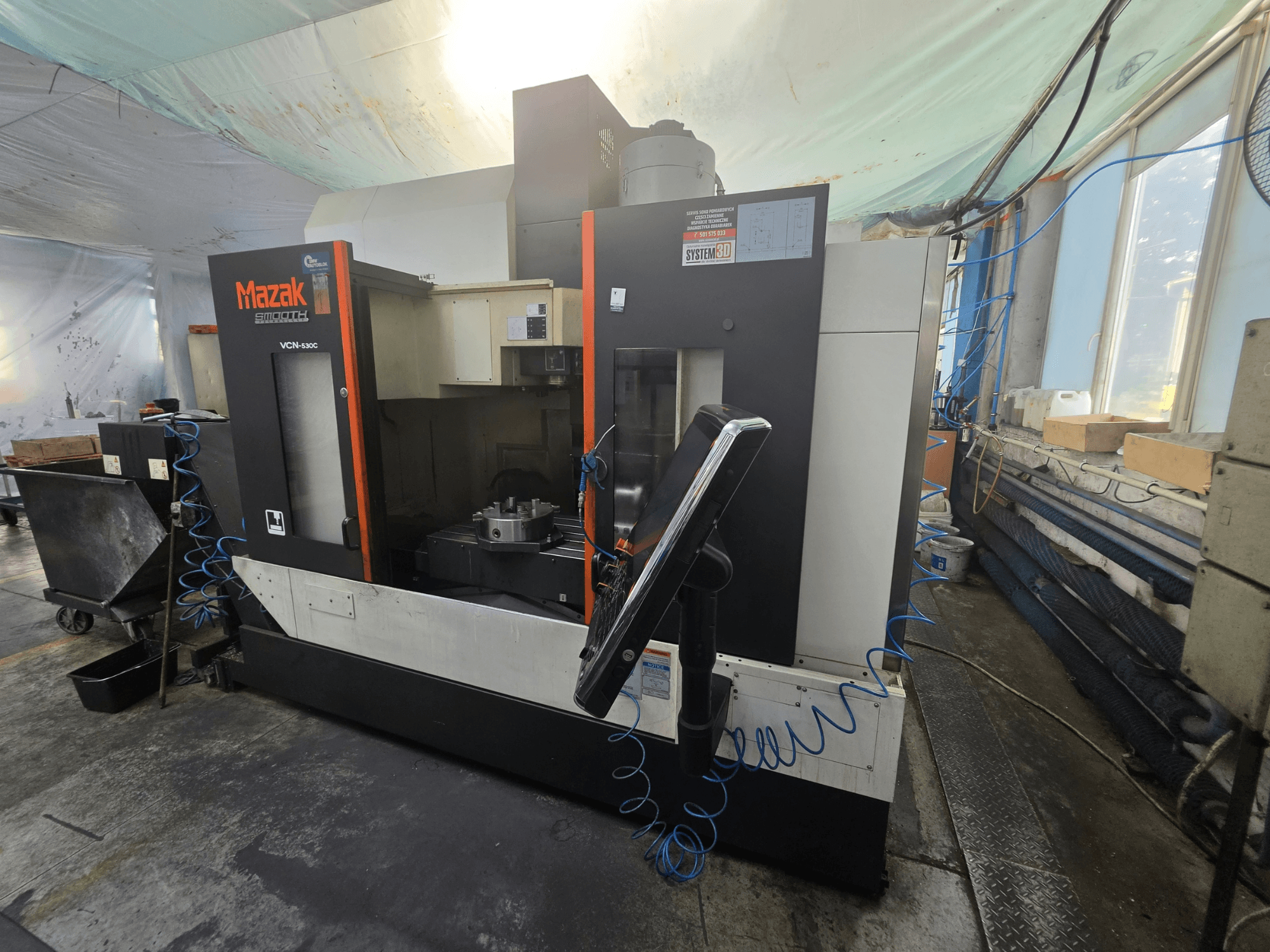

Mazak - VCN-530CPL-MIL-MAZ-2017-00001

• Operating counter (cutting only): 11,917 h

• Axis travels (standard VCN 530C):

  • Distance table surface to spindle nose: 150–660 mm

  • Distance column to spindle centre: 586 mm

• Work envelope / capacities:

  • Max workpiece length: 1,300 mm

  • Max workpiece width: 550 mm

  • Max workpiece height: 570 mm

  • Max workpiece weight: 1,200 kg

• Worktable:

  • Table size: 1,300 × 550 mm

  • T-slots: 5; width 18 mm; pitch 100 mm

  • Note: Table-load rating does not represent rotary table load capacity

• Spindle:

  • Motor power: 18.5 / 11 / 7.5 kW (duty dependent)

• Tooling / ATC:

  • Max tool length: 350 mm

  • Max tool diameter: 80 mm (125 mm with adjacent pockets empty)

  • Tool-to-tool change: 1.3 s

• Feed rates:

  • Rapid X/Y/Z: 42 m/min

  • Cutting feed: 1–42,000 mm/min

• Utilities / dimensions:

  • Coolant tank capacity: 250 L

  • Floor space (approx.): 2,880 × 3,102 mm

  • Machine height (approx.): 2,807 mm

• Included machine features (PD081 production package):

  • Workpiece air blast

  • High-pressure through-spindle coolant

  • Coolant flushing of machine covers

  • Synchronous tapping

  • CNC memory: 8 MB maximum program size

  • G00 Slope Constant rapid-movement optimisation

Additional equipment

• Fourth axis:

  • Tsudakoma NC rotary table, model RNE-200L (Japan), with 250 mm faceplate

  • Fourth-axis preparation on machine

• Chip management:

  • Left-side Crowther hinged-belt chip conveyor

  • Preparation for a left-side chip conveyor

• Probing:

  • Renishaw OMP60 workpiece probe

  • Preparation for OMP60 on machine

• Extraction:

  • Filtermist FX6002 oil mist extraction unit

• Other:

  • Workholding system

  • Pneumatically powered coolant wash gun
