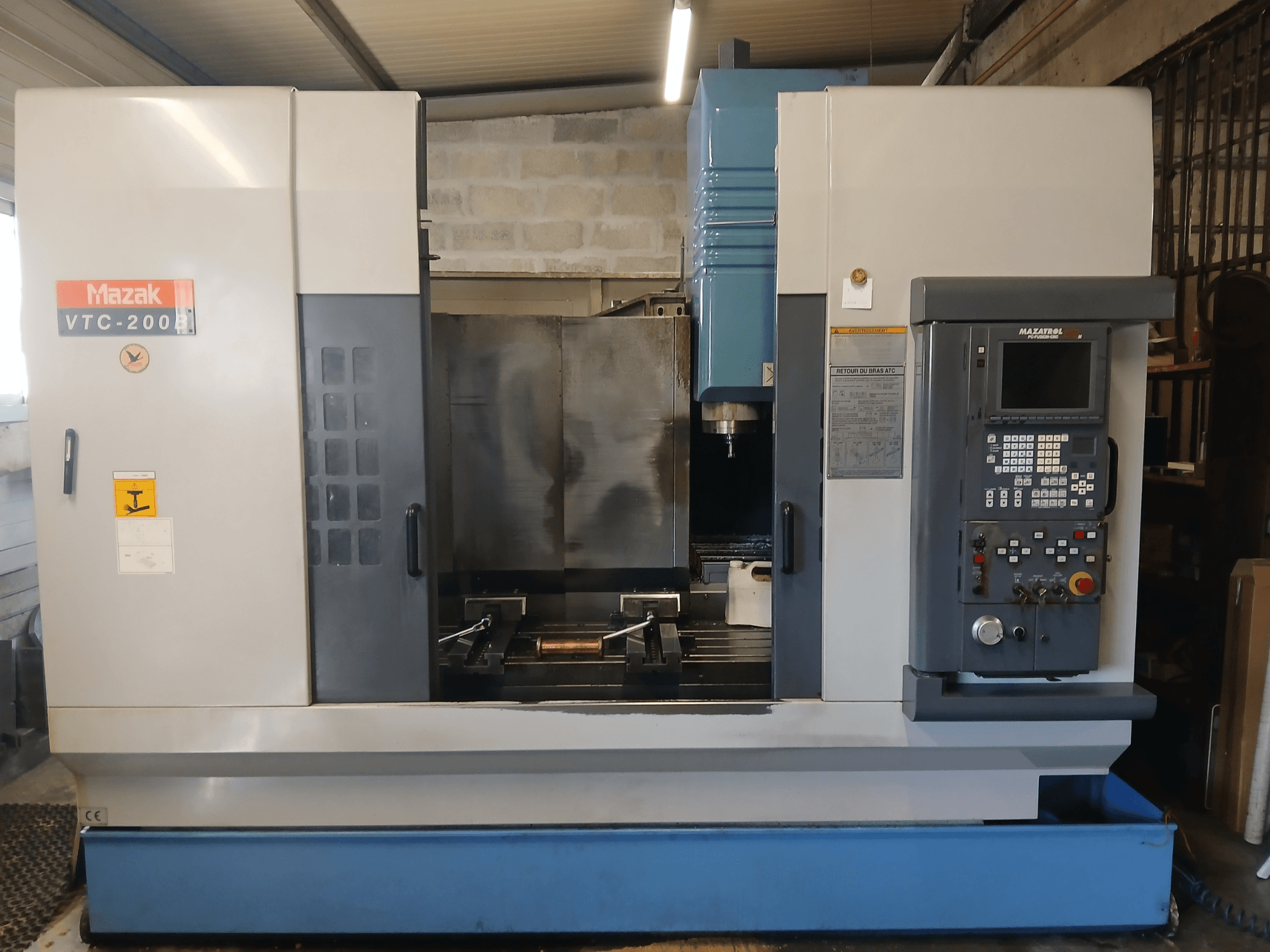

Mazak - VTC 200 BFR-MIL-MAZ-2001-00001

Machining capacity:

• Milling (S45 JIS): 416 cm³/min

• Drilling (S45 JIS): 25 mm

• Tapping (S45 JIS): M24 x P3

Table:

• Size: 1460 × 510 mm

• T-slots: 5

• T-slot pitch: 100 mm

• T-slot width: 18 mm

• Table height: 750 mm

Spindle:

• Spindle nose to table: Max 690 mm / Min 180 mm

• Spindle center to column: 530 mm

Spindle motor:

• 10 min: 15 kW

• 30 min: 11 kW

• Continuous: 7.5 kW

• Max torque: 98 Nm

Rapid traverse:

• X: 30 m/min

• Z: 30 m/min

Cutting feed rate:

• X: 8 m/min

• Z: 8 m/min

Tool changer:

• Tool type: CAT40

• Max tool Ø with adjacent tool: 80 mm

• Max tool Ø without adjacent tool: 110 mm

• Max tool length: 350 mm

• Tool change time (chip-to-chip): 4.7 s

Coolant system:

• Tank: 300 L

• Pressure: 0.5 kg/cm²

• Flow: 20 L/min

Electrical data:

• Installed power: 22.7 kVA

Air supply:

• Pressure: 5 kg/cm²

• Consumption: 140 L/min

Standard equipment:

• Full enclosure

• Through spindle coolant

• Automatic tool length measurement

• Adaptive feed control

• Tool life monitoring

• Tool breakage detection

• RS-232C interface

• PCMCIA interface

• 3.5" floppy disk reader

• CE compliant machine

• Side chip conveyor preparation

Note: Machine is prepared for a side chip conveyor (conveyor not included)
