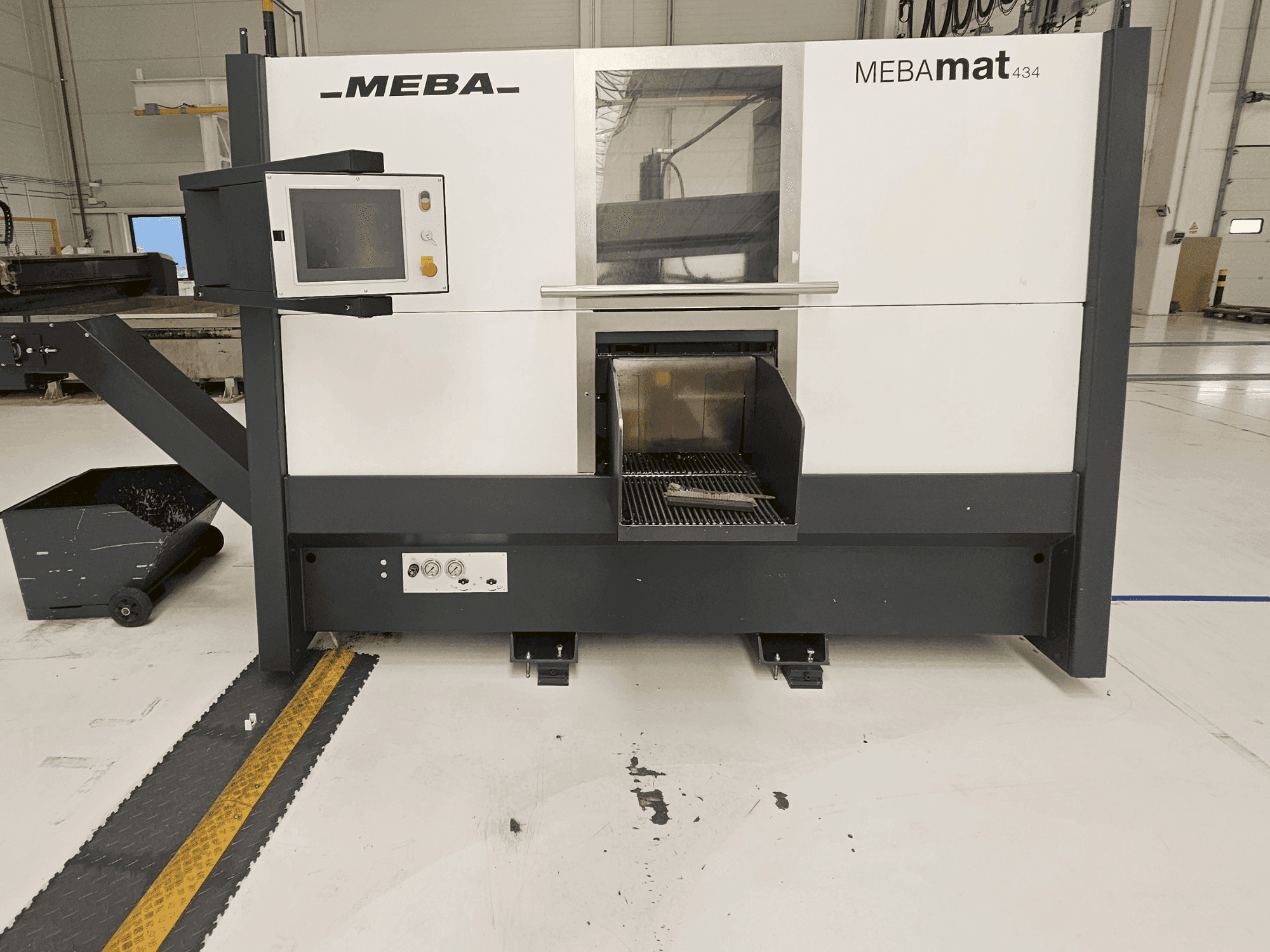

MEBA - MEBAmat 434PL-SAW-MEB-2019-00001

Additional Equipment

• - Spray unit capacity: approximately 12 liters / Hydraulic oil capacity: approximately 5 liters / Coolant capacity: approximately 180 liters

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Band saw drive power: 75 kw / saw frame feed motor power: 10 kw / insertion bar spindle drive power: 037 kw / drive brush motor power: 012 kw / hydraulic system motor power: 11 kw / coolant pump power: 037 kw /total power consumption: minimum 105 kw
  • - Cutting speed: up to 150 m/min / saw feed: electric / feeder speed: 0–300 mm/min (stepless adjustment) / saw blade dimensions: 6220 × 41 × 13 mm / blade tension: hydraulic/ hydraulic pressure: 72 bar / maximum material weight: 500 kg/m
  • - Machine weight: approximately 4000 kg / dimensions of machine (lxwxh): approximately 1725 mm x 4200 mm x 1725 mm
  • - Power supply: 3 × 400 v n/pe, 50 hz / compressed air supply: 6–8 bar, at least 50 l/min / rated current: 20 a / protection fuse: 35 a / connections: electrical control cabinet
  • - Temperature range: 5–40 °c / max relative humidity: 60% / cutting capacity round material: up to Ø434 mm / cutting capacity square/flat material: up to 434 × 434 mm / tolerance: ≥ 03 mm / material: aluminium, stainless steel / maximum length of cut profile: 3000 mm /clamping system type: hydraulic vice
• Qualitative Machine Benefits:
  • - Very good technical condition, the machine is like new. Full specification available.

Payment Terms

• Payment in advance

• Asset Financing
