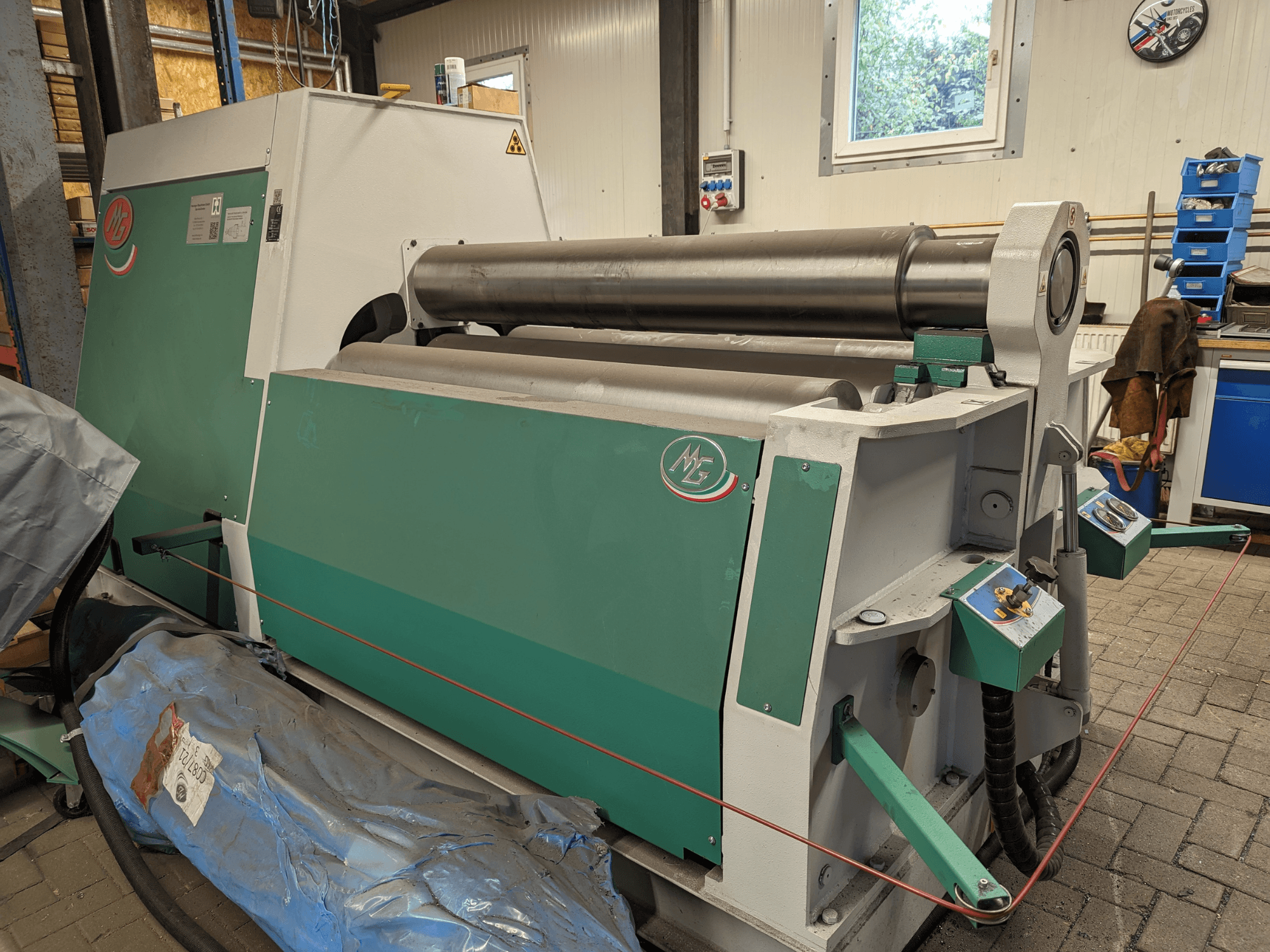

Roll bending machine manufactured in 2020. This MG MG4R1520C features a working width of 1,550 mm and a bending capacity of 20.0 mm. It includes a CNC TouchCommand EVO control for enhanced precision and efficiency. If you are looking to get high-quality bending capabilities, consider the MG MG4R1520C machine we have for sale. Contact us for further details.
Overview
- brand: MG
- year: 2020
- MODEL: MG4R1520C
- application type: Bending
- Location: Germany
- machine type: Roll Bending Machine
- control unit brand:
Technical Information - MG MG4R1520C
Dimensions
- Machine Height: 1520 mm
- Machine Length: 2925 mm
- Machine Weight: 4920 kg
- Machine Width: 1460 mm
Additional Information
working width: 1,550 mm
Bending / pre-bending capacity: 20.0 / 16.0 mm
Top roll diameter: 270 mm
Bottom roll diameter: 260 mm
Side roll diameter: 220 mm
Drive power (central hydraulics): 7.5 kW (15 A)
Control: CNC TouchCommand EVO
Electrical supply: 400 V, 50 Hz, 3Ph + PE
Additional equipment
Crowning of rolls
Inductive hardened rolls
Calibration device
Cone bending device
Hydraulic brake for top roll
Additional roll (1,550 x 230 mm)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
