- MICROCUT Modern TLV-85011 Vertical Machining Center
Show in original language

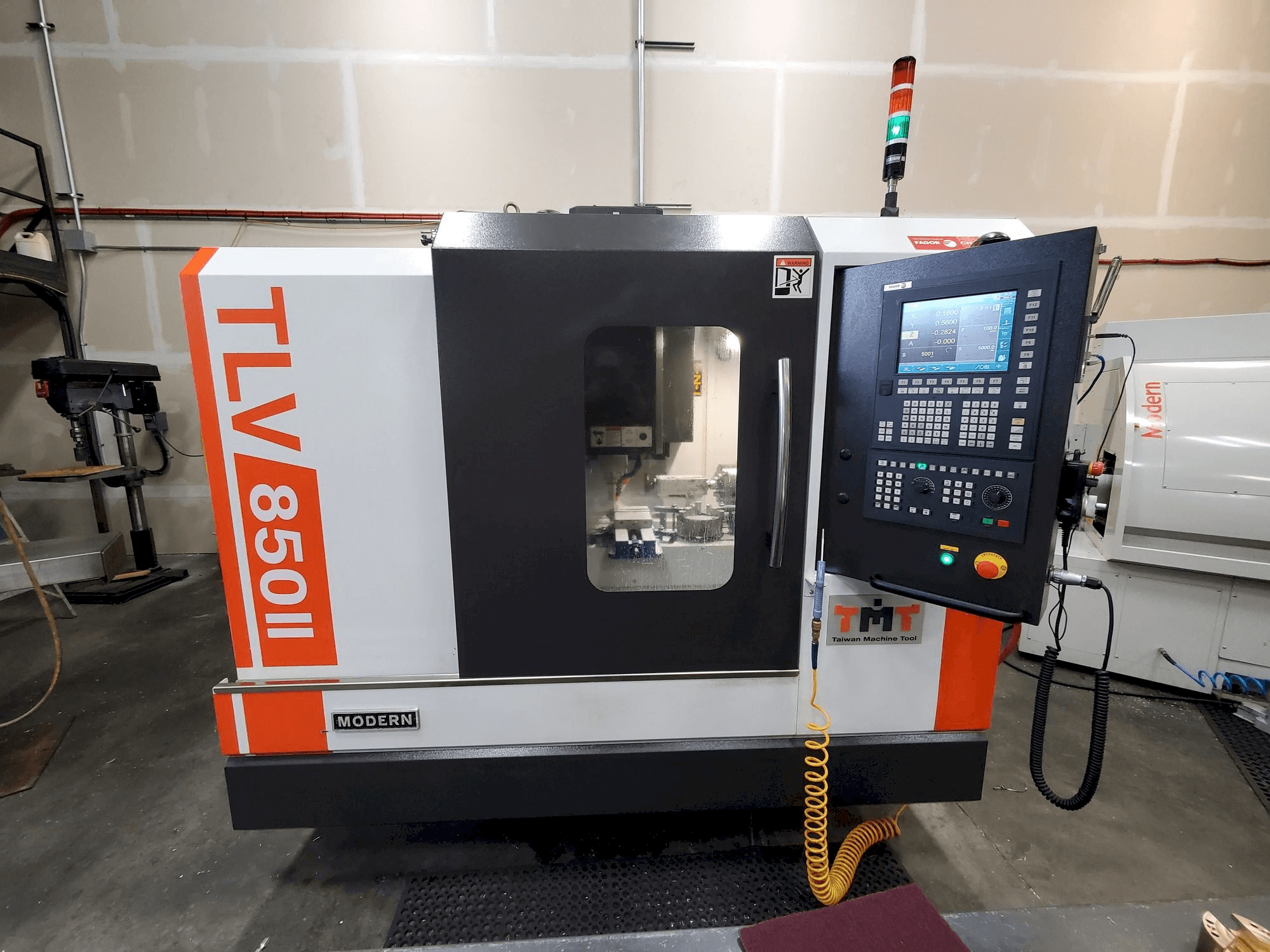

This MICROCUT Modern TLV-85011 Vertical Machining Center was built in the year 2015. It is equipped with a 0i-M controller. This machine incorporates a spindle speed up to 10000 rpm.
Overview
- brand: MICROCUT
- year: 2015
- MODEL: Modern TLV-85011
- application type: Milling
- Location: Canada
- machine type: Vertical Machining Centre
Technical Information - MICROCUT Modern TLV-85011
Dimensions
- Table Length: 1000 mm
- Table Load: 500 kg
- Table Width: 530 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Power: 7.5 kW
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- T-slot (size x number x pitch): 18 mm x 5t x 100 mm
- X axis stroke: 850 mm
- Y axis stroke: 530 mm
- Z axis stroke: 580 mm
- Distance from table surface to spindle nose: 100 – 680 mm
- Distance from coumn cover to spindle center line: 586 mm
- Spindle taper: bt-40
- Rapid feedrate (x/y/z): 36/36/30 m/min
- Tool storage capacity: arm type 24t pcs
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
