HAAS - VF 5/40IT-MIL-HAA-2015-00004

57,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

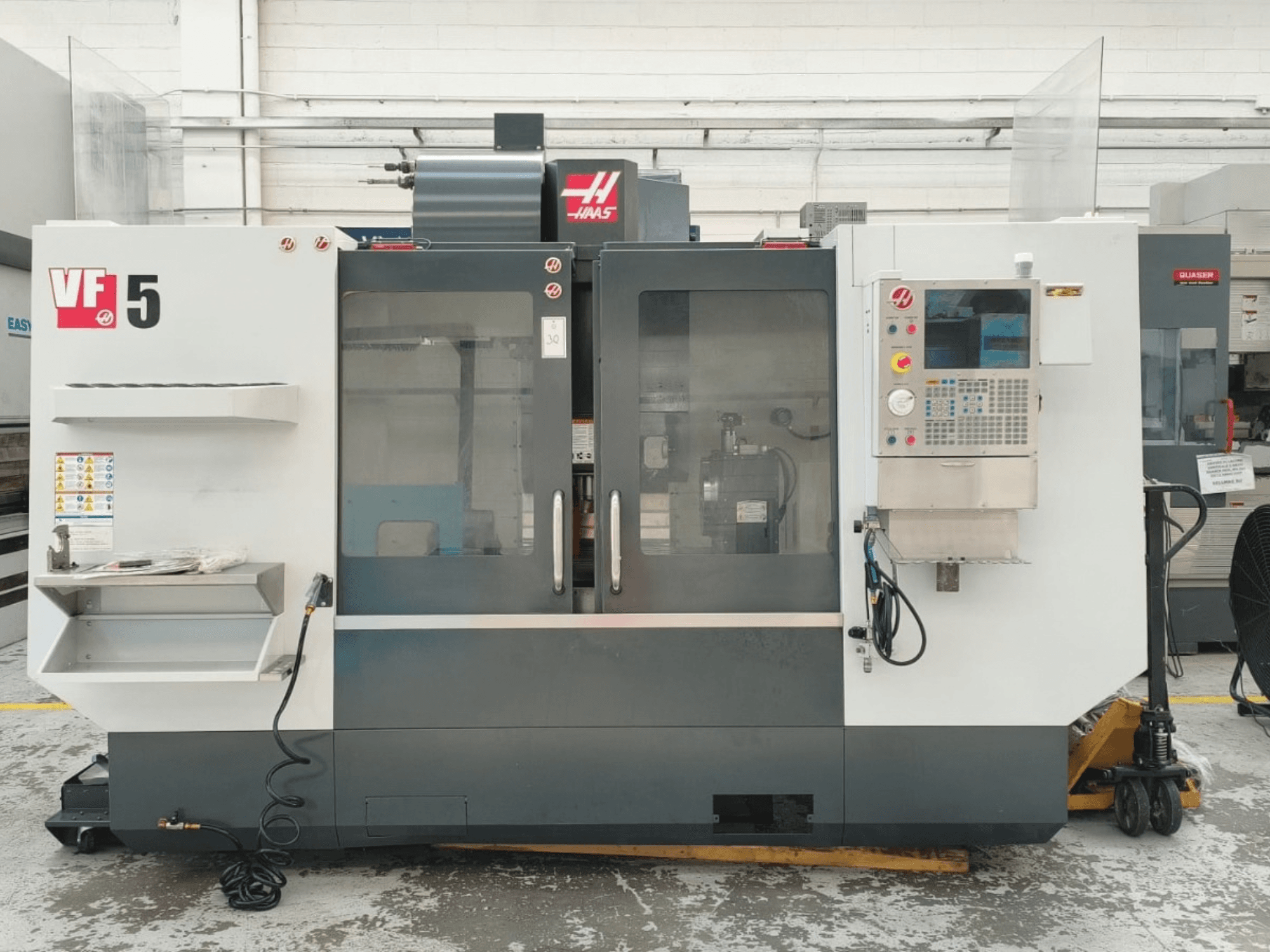

This 4-axis HAAS VF 5/40 was manufactured in 2015. It features an X-axis travel of 1270 mm, Y-axis travel of 660 mm, and Z-axis travel of 635 mm. The machine includes a tool changer capacity of 24 positions and a maximum table load of 1815 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF 5/40 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: HAAS
  • year: 2015
  • MODEL: VF 5/40
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS VF 5/40

Control Unit

  • Control Brand: HAAS

Dimensions

  • Table Length: 1321 mm
  • Table Load: 1815 kg
  • Table Width: 584 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 1270 mm
  • Y-axis Travel: 660 mm
  • Z-axis Travel: 635 mm

Technical Specification

  • Spindle Power: 22.4 kW
  • Spindle Speed: 8100 RPM
  • Taper Size: BT 40
  • Tool Stations: 24

Additional Information

  • X-axis rapid traverse: 18.0 m/min

  • Y-axis rapid traverse: 18.0 m/min

  • Z-axis rapid traverse: 18.0 m/min

  • Distance spindle nose to table (max): 742 mm

  • Distance spindle nose to table (min): 107 mm

  • Max spindle torque: 122.0 Nm @ 2000 rpm

  • Table T-slot width: 14 mm

  • Table T-slot pitch: 80 mm

Additional equipment

  • Included documentation: Manuals and CE Declaration of Conformity

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
