MicroStep AquaCut-W 4001.20

Photo Gallery

MicroStep - AquaCut-W 4001.20DE-CUT-MIC-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used MicroStep AquaCut-W 4001.20 For Sale | gindumac.com

Show in original language

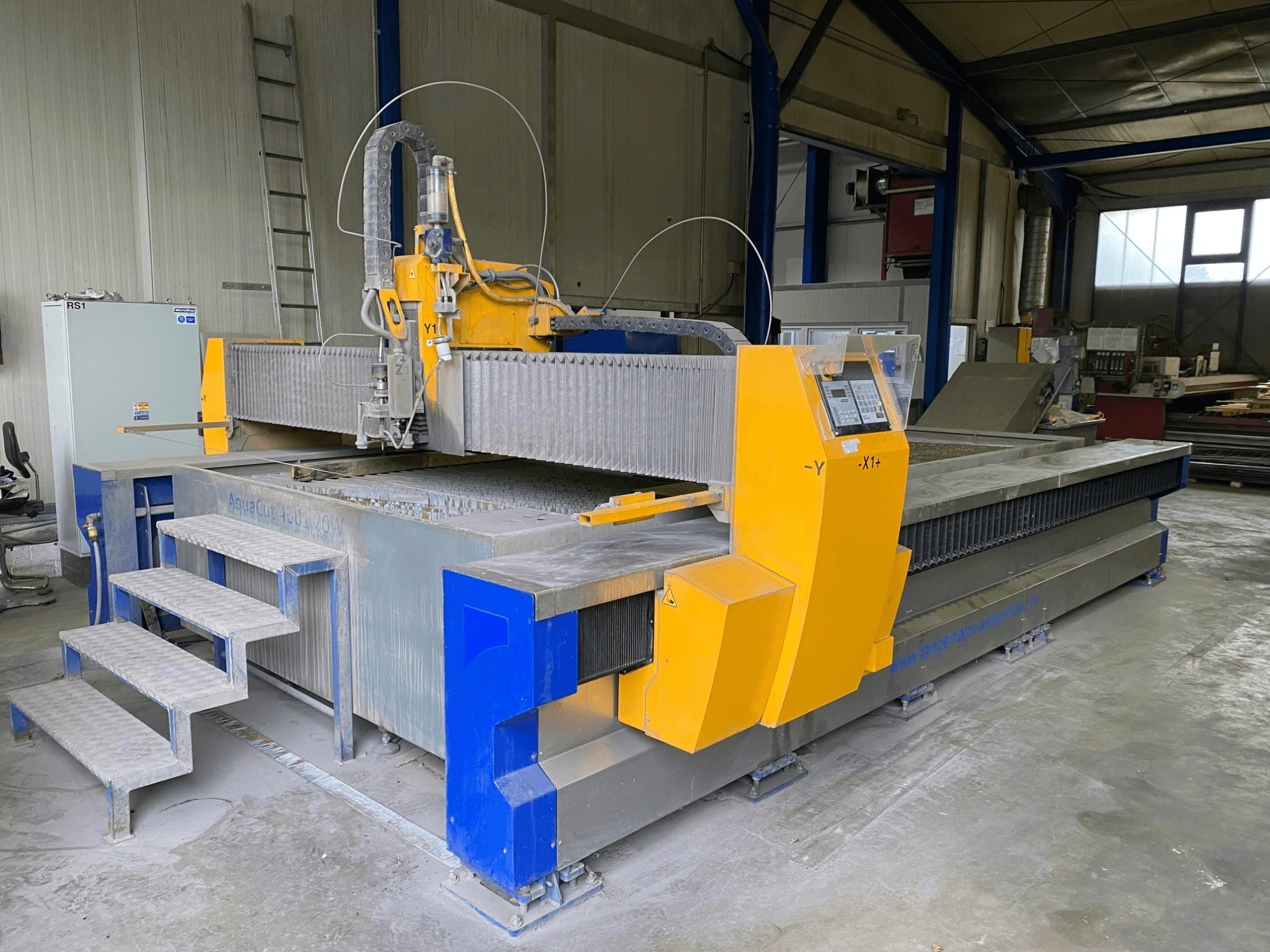

This 3-axis MicroStep AquaCut-W 4001.20 was manufactured in 2018. It features a working range of 4,000 x 2,000 mm and is equipped with a high-pressure pump system capable of 400 MPa. The machine includes automatic height control for the cutting head and a waterjet cutting table with grid support. If you are looking to get high-quality waterjet cutting capabilities, consider the MicroStep AquaCut-W 4001.20 machine we have for sale. Contact us for further details.

Overview

brand: MicroStep
year: 2018
MODEL: AquaCut-W 4001.20
application type: Cutting
Location: Germany
machine type: Waterjet Cutting Machine
control unit brand: MicroStep

Technical Information - MicroStep AquaCut-W 4001.20

Control Unit

Control Brand: MicroStep
Control Model: iMSNC

Movement

Number of Axes: 3
X-axis Travel: 4000 mm
Y-axis Travel: 2000 mm

Additional Information

- CNC Control Unit: MicroStep iMSNC with MMI console, 24" touchscreen, and two LCD operator units on the gantry

- Working Range / Processing Area: 4,000 x 2,000 mm

- Laser Pointer: Laserpointer with automatic offset transmission

- Control Modules: Expert system, Service & Maintenance wizard, CNC program loading wizard, Automatic mechanical scanning calibration, Cutting program management (MRP), EcoInfo, MachineInfo, User-Management

- CAM Software: AsperWin Basic, AsperWin Select macro library, AsperWin NC-Sim simulator

- Connectivity: USB 3.0 port, MicroStep Remote Diagnostics, TeamViewer access, GSM Modem for SMS error notifications

- Cutting Table: Waterjet cutting table with grid support

- Height Control: Automatic height control for the waterjet cutting head

- High-Pressure Pump System: BFT ECOTRON 40.37

- Pump Permissible Working Pressure: 400 MPa (4,000 bar)

- Pump Max Flow Rate: 3.8 l/min

- Pump Tank Capacity: 140 liters

- Pump Power Consumption: 39 kW (at 3*400 V, 50 Hz) / 46 kW (at 3*480 V, 60 Hz)

- Pump Gross Weight: 1,110 kg

- Pump Serial Number: 16414

- Pump Drawing Number: 120343

- Cutting Head: Allfi Cutting Head Type IV (1 unit)

- Abrasive Head: Allfi Abrasive Head CENTERLINE Typ II "Long Life" (1 unit)

- Abrasive Systems: Allfi Abrasive Dosing system, Allfi Abrasive Conveying System Type II, Automatic abrasive dosing via CNC

- Sludge Removal: Desludging system (scraper conveyor) for 4,000 mm length, including sedimentation tank

- Water Conditioning: Water stabilization dosing unit using WIN2054Si water chemistry

- Safety Equipment: Double-sided cable pull safety mechanism (collision protection) via Emergency Stop

- Total System Layout Footprint Dimensions: Approx. 7,122 mm (Length) x 4,200 mm (Width) (Main machine footprint alone is 7,122 mm x 3,476 mm)

- Required Flooring Base: Concrete min. B20, thickness min. 200 mm, surface evenness ±5 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
