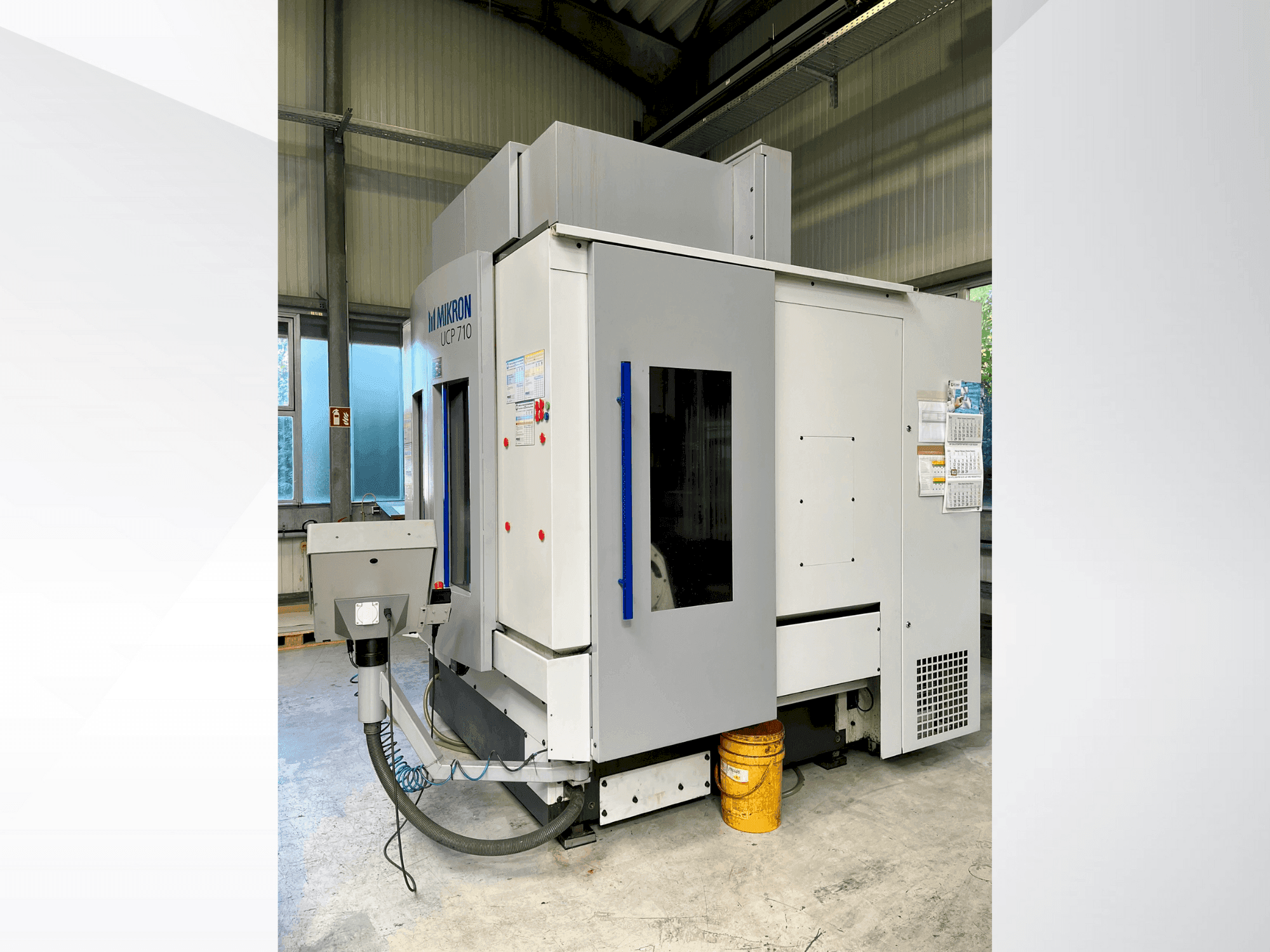

This 5-axis MIKRON VCP/UCP 710 vertical machining center was manufactured in 1999. It features a rotary tilting table, a 30-fold tool changer, and a SK40 tool holder. Equipped with HEIDENHAIN TNC430 control, it also includes a chip conveyor and a belt filter system PITRAG. Weighing 10,000 kg, this machine offers robust performance for complex machining tasks. Contact us for further details regarding this vertical machining center.
Overview
- brand: MIKRON
- year: 1999
- MODEL: VCP/UCP 710
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - MIKRON VCP/UCP 710
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC430
Dimensions
- Machine Weight: 10000 kg
Movement
- Number of Axes: 5
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- Number of Tools: 30-fold tool changer
- Rotary Tilting Table
- Belt Filter System: PITRAG
- Tool Changer: Maximum tool diameter: 90 mm (fully loaded), 140 mm (partially loaded)/ Maximum tool length: 300 mm without taper/ Maximum tool weight: 8 kg / Maximum total weight of all tools: 180 kg in drum magazine
- Feed Drives / Ball Screws: X-axis: 50 x 20 mm / Y/Z-axis: 40 x 20 mm
- Programmable Speed: XY: 0-15,000 mm/min / Z: 0-20,000 mm/min / Maximum Rapid Traverse: XY: 30 m/min / Z: 30 m/min
- Maximum Feed Force: X,Y: 7,000 N / X,Y: 7,000 N / Measurement Systems / Measurement Systems
- Measurement Systems: VCP 710: 9,000 kg / UCP 710: 9,400 kg
- Transport Dimensions (Pallet): Height: 3,250 mm / Length: 2,350 mm / Depth: 2,930 mm
Machine Benefits
Qualitative Machine Benefits
- Precision control with the heidenhain tnc430 for accurate machining.
Technical Machine Benefits
- Versatile rotary tilting table for enhanced machining capabilities.
- Large tool capacity for efficient tool management.
- Power: 16 kw at 44% duty cycle, 12 kw at 100% duty cycle
Extra Information
Machine hours: Spindle on 14528 h / Programme on 19151 h / Machine on 170775 h
