MIKRON - VCP 1350SI-MIL-MIK-2000-00001

Name: MIKRON VCP 1350
Brand: MIKRON
SKU: SI-MIL-MIK-2000-00001
Price: 17000 EUR
Availability: InStock

17,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MIKRON VCP 1350 For Sale | gindumac.com

Show in original language

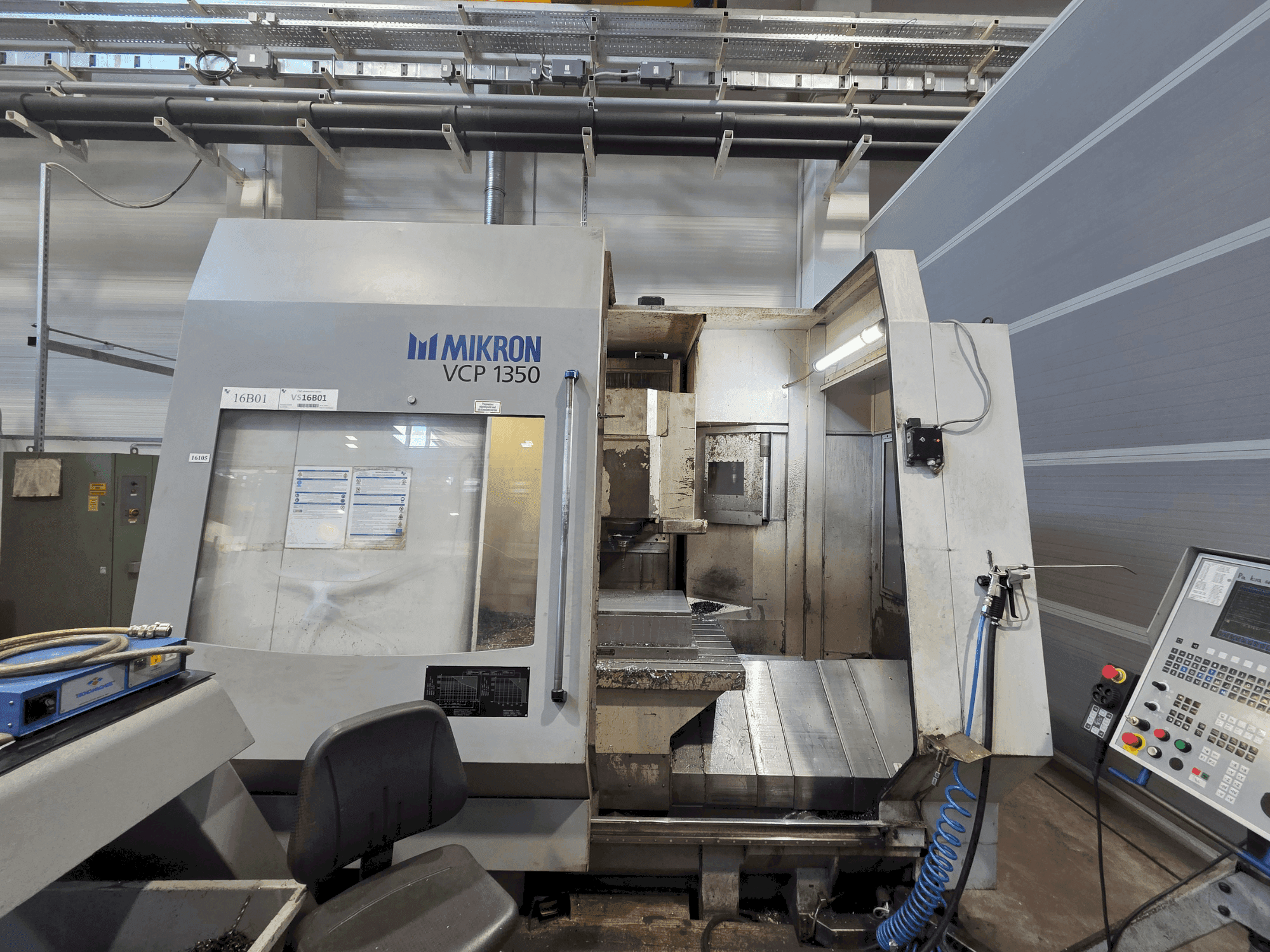

This 3-axis MIKRON VCP 1350 was manufactured in 2000. It features a Heidenhain TNC 426 M control system, X-axis travel of 1350 mm, Y-axis of 900 mm, and Z-axis of 750 mm. The machine supports a maximum workpiece weight of 1,800 kg and includes a high-speed Step-Tec HSK-A63 spindle capable of 24,000 rpm. Ideal for precision machining with a tool magazine capacity of 46 tools. Contact us for more information about this machine.

Overview

brand: MIKRON
year: 2000
MODEL: VCP 1350
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 1350

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426 M

Dimensions

Machine Depth: 4130 mm
Machine Height: 3150 mm
Machine Weight: 10100 kg

Movement

Number of Axes: 3
X-axis Travel: 1350 mm
Y-axis Travel: 900 mm
Z-axis Travel: 750 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Speed: 24000 RPM

Additional Information

Additional equipment

High-speed precision machining capability

Machine Benefits

Technical Machine Benefits

Equipped with a automatic spindle orientation and high-speed spindle (24000 rpm)
Coolant system pressure: 30 bar (standard) / 40 bar (optional high pressure)
Tank capacity: 180 l (optional 600 l)
Direct drive ac motor
Measuring system: direct linear scales on all axes
Clamping surface: 1425 x 860 mm
Magazine capacity: 46 tools (standard), 92 tools (optional)
Max. Magazine load: 200 kg
Tool-to-tool change time: approx. 12 sec
Available for inspection

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
