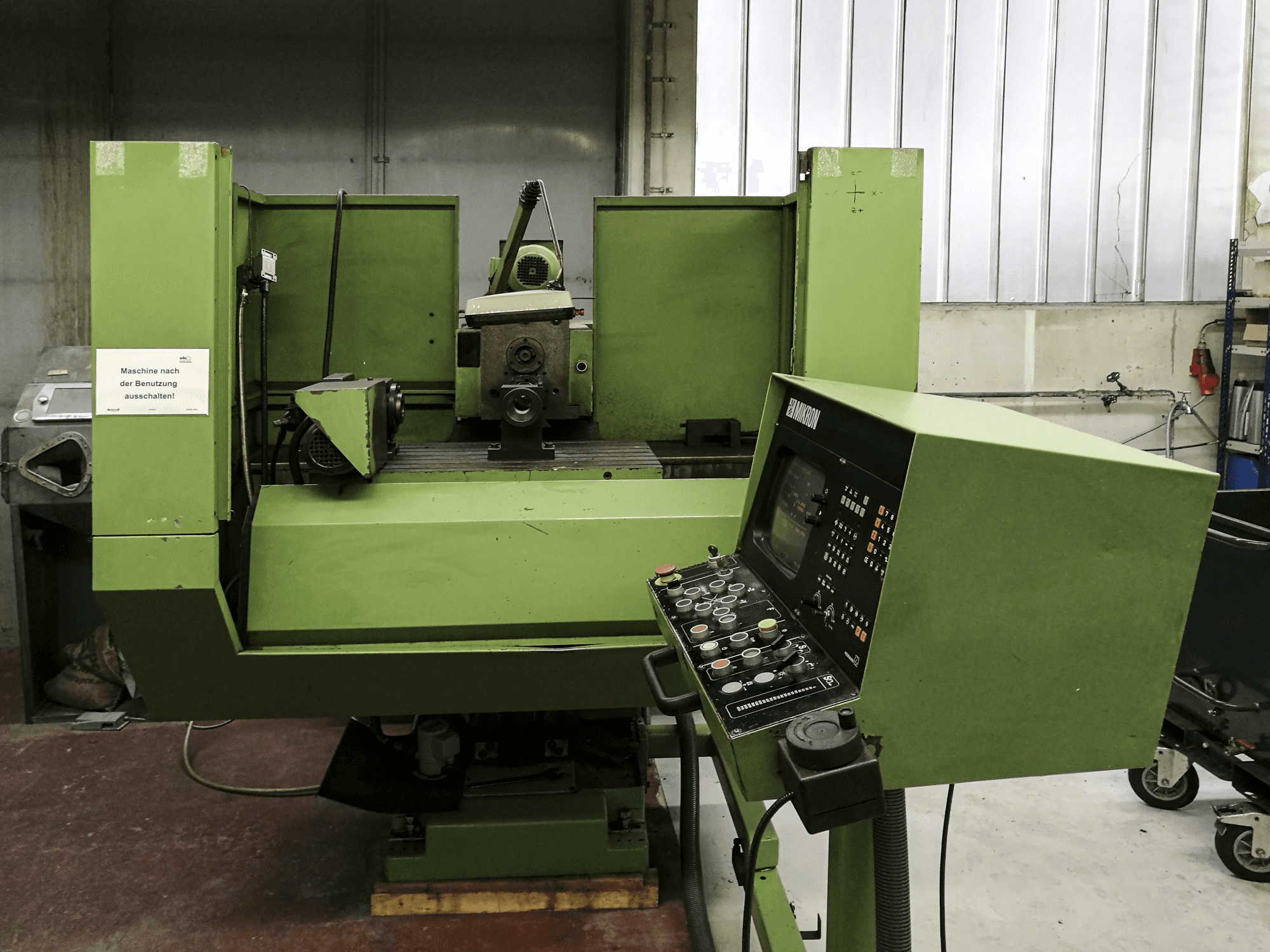

This MIKRON WF-31 D Milling Machine was manufactured in 1991 in Switzerland and is controlled via a HEIDENHAIN TNC 355 Control unit. During the past, this machine has mainly worked over steel workpieces up to 20 mm of thickness producing tool holders for the automotive industry.
Overview
- brand: MIKRON
- year: 1991
- MODEL: WF-31 D
- application type: Milling
- Location: Germany
- machine type: Milling Machine
- availability: Sold
- control unit brand: HEIDENHAIN
- GINDUMAC ID: DE-MIL-MIK-1991-00001
Technical Information
General Data
- Measurements width: 2600 mm
- Measurements depth: 1800 mm
- Measurements height: 2200 mm
- Machine weight: 2600 kg
Control Unit
- Brand: HEIDENHAIN
- Model: TNC355
Main drive
- Spindle speed range: 40-4000 1/min
Movement
- X-AXIS Movement: 560 mm
- X-AXIS Working Feed: 2-3000 mm/min
- X-AXIS Rapid traverse: 6 m/min
- Y-AXIS Movement: 500 mm
- Y-AXIS Working Feed: 2-3000 mm/min
- Y-AXIS Rapid traverse: 6 m/min
- Z-AXIS Movement: 400 mm
- Z-AXIS Working Feed: 2-3000 mm/min
- Z-AXIS Rapid traverse: 5 m/min
Workpiece
- Workpiece weight: 350 kg
Table
- Outer length: 900 mm
- Outer width: 530 mm
- TSlots size: 14-H7
- Number of tslots: 12
- Distance between: 65 mm
Media
- Power consumption: 9 kVA
- Chip conveyor: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
