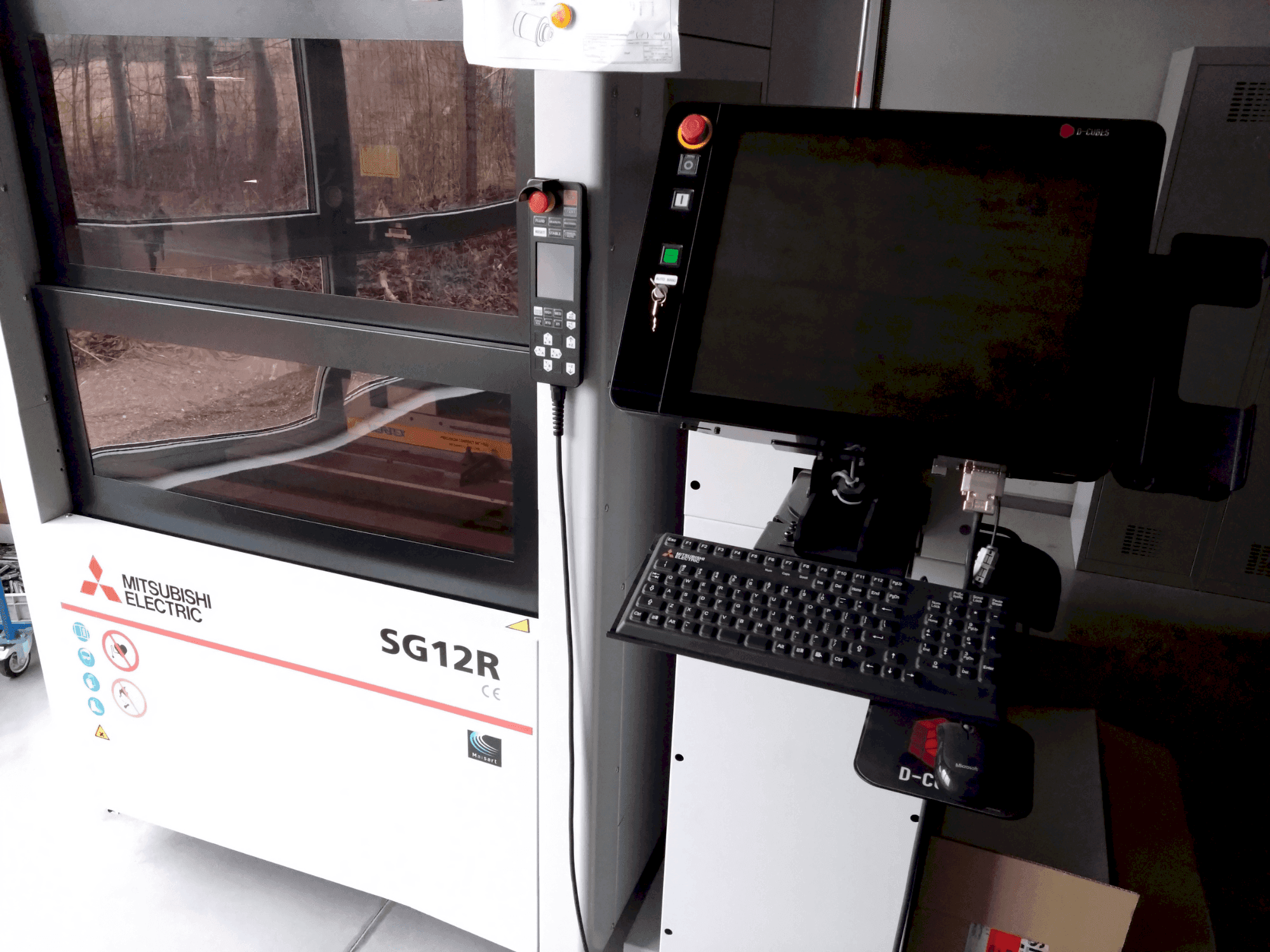

This Mitsubishi Electric SG12R die-sinking EDM machine was manufactured in 2020. It features a robust 3750 kg weight, with a maximum workpiece weight capacity of 1000 kg. The machine includes a dielectric fluid chiller unit and a dual paper filter system, ensuring optimal operational conditions. The working tank has an automatic elevation system and hinji open-door for ease of use. If you are looking to get high-quality die-sinking capabilities, consider the Mitsubishi Electric SG12R machine we have for sale. Contact us for more information.
Overview
- brand: Mitsubishi Electric
- year: 2020
- MODEL: SG12R
- application type: EDM
- Location: Lithuania
- machine type: Die-Sinking EDM Machine
Technical Information - Mitsubishi Electric SG12R
General Data
- Measurements width: 2100 mm
- Measurements depth: 1920 mm
- Measurements height: 2420 mm
- Machine weight: 3750 kg
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 300 mm
Workpiece
- Workpiece weight: 1000 kg
Turret
- Number of tool slots: 3
Additional Information
Machine Benefits
Technical Machine Benefits
- Distance between table and electrode mounting surface: 200-500 mm / 300-600 mm
- Max. Electrode weight: 50 kg
- Working tank method: automatic elevation system / hinji open-door
- Working tank inner dimensions (w x d x h): 950 x 700 x 450 mm / 1050 x 700 x 450 mm
- Fluid level adjustment range (from top of table): 60-400 mm / 210-400 mm
- Max. Workpiece dimensions (w x d x h): 900 x 650 x 350 mm
- Table dimensions (w x d): 700 x 500 mm
- Distance between floor and top of table: 900 mm
Extra Information
Media Dielectric Fluid Reservoir Tank Capacity: 360 liters / 550 liters Initial Dielectric Fluid Supply Amount: 470 liters / 590 liters Filtering System: Paper filter x 2 Dielectric Fluid Chiller Unit: Included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
