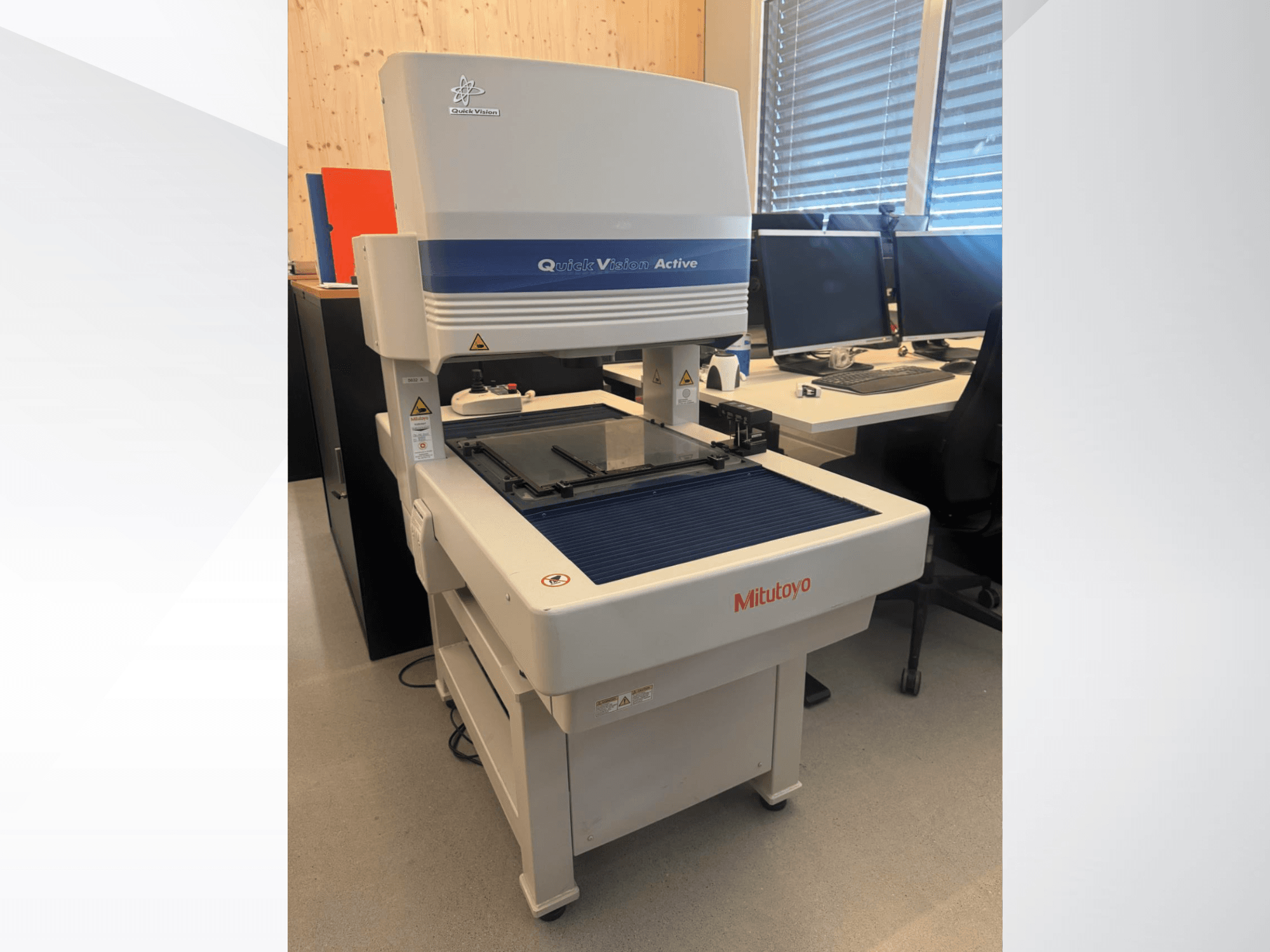

Mitutoyo - QV-L404Z1L-DLI-MEA-MIT-2020-00001

• Last calibration: 06 September 2022

• X-axis travel: 400 mm

• Y-axis travel: 400 mm

• Z-axis travel: 200 mm

• Resolution: 0.1 µm (0.0001 mm)

• Length measurement accuracy XY: (2 + 3L/1000) µm

• Length measurement accuracy Z: (3 + 5L/1000) µm

• Length measurement accuracy E2XY: (2.5 + 4L/1000) µm

• Machine depth: 1303 mm

• CNC control: Yes

• Control software: QVPak V13.3

• Operating system: Windows 10 64-bit

• Measurement display: 3D graphical measurement display

• Programming interface: EasyEditor

• Edge detection: Advanced recognition algorithms

• Camera type: High-resolution CMOS color camera

• Communication: USB 3.0

• Zoom system: 7-step zoom lens

• Measurement methods: Video measurement; Touch probe measurement; Multi-sensor measurement; Automatic measurement sequences

• Measurement capability: Micro and nano feature measurement

Additional equipment

• Touch probe type: TP20

• Probe modules: 2 standard force modules

• Probe module type: TP20 standard force

• Stylus holder: 5-way holder

• Stylus length: 13 mm

• Stylus diameter: 10 mm

• Probe changer: MCR20

• Probe changer capacity: 3 ports

• Calibration ring: Ø20 mm

• Reference sphere: Ceramic master ball Ø15 mm

• Machine stand: QVST-4L

• Power cable: CH type 1.8 m

• Computer type: Dell Precision workstation

• Processor: Intel Xeon W-2223 3.6 GHz

• Monitors: 2× Dell UltraSharp U2421E

• Additional software: QV Partner Manager V3.1

• Statistical software: MeasLink Real-Time Professional V9
