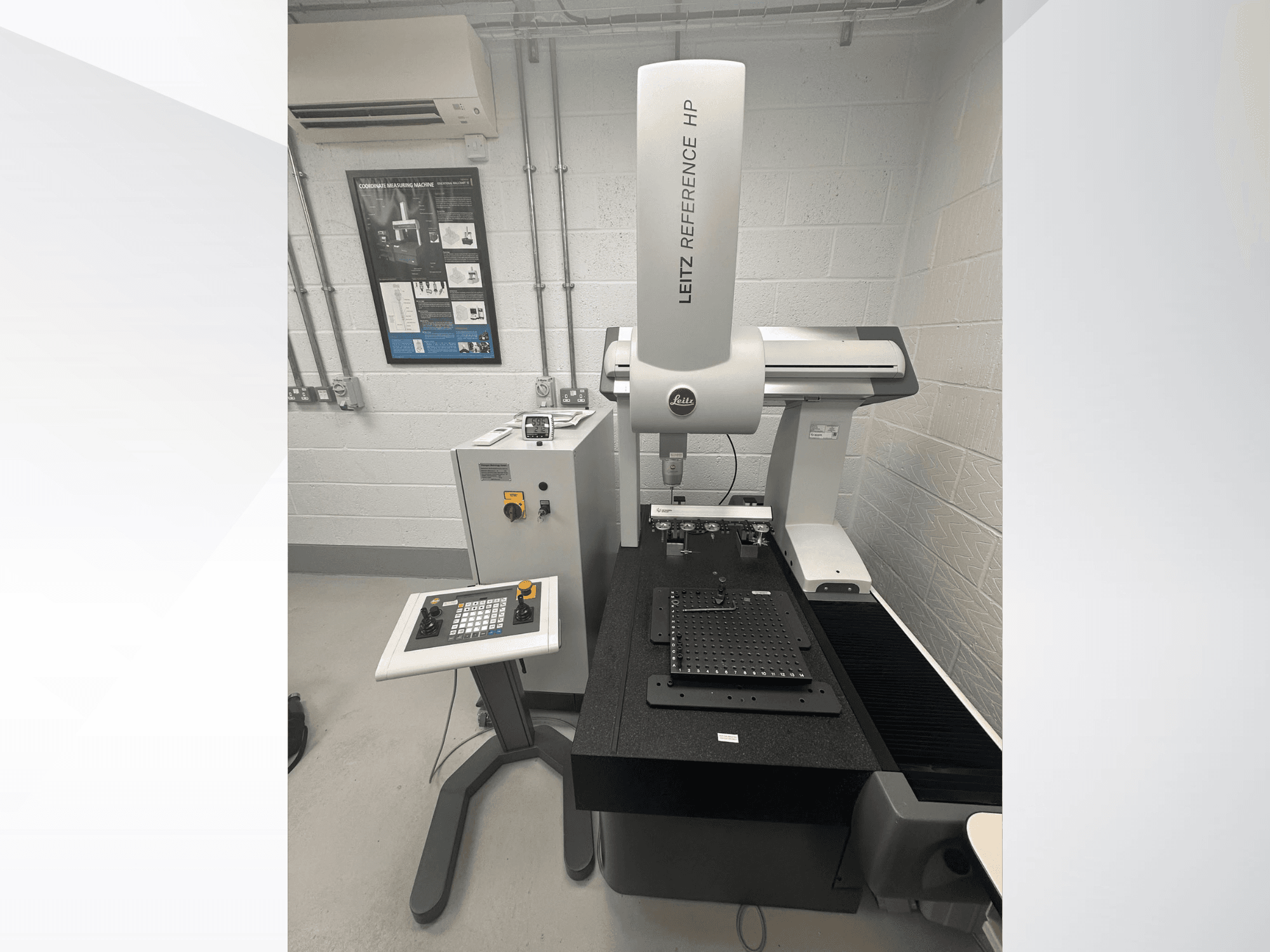

LEITZ - Reference HP 5.4.3 GB-MEA-LEI-2020-00001

• Viewing: Possible by appointment; machine can be seen running

• Incoterm/Collection: EXW Technical specifications

• Accuracy (MPE-E): 0.70 + L/400 µm

• Probing error (MPE-P): 0.80 µm

• Table: Granite table

• Probe system: Hexagon LSP-X3

• Stylus clamping: HP-S-X3

• Stylus changer: Hexagon 5-port stylus change rack

• Change ports: HR-X3-P

• Controller: Leitz controller in free-standing cabinet

• Operator control: Leitz twin-joystick panel with emergency stop Machine history / service

• Aug 2020: Machine and accessories supplied new by Hexagon Metrology

• Sep 2020: Software bundle supplied by Hexagon

• Feb 2021: 6 additional M2 stepped styli purchased

• Apr 2021: Installed and commissioned in Andover by a Hexagon engineer (Installation/service report ref. 15320)

• Last calibration: 16 May 2023 by Hexagon Metrology

  • Standard: ISO 10360-2:2001

  • Certificate: CAA/REF769/543/16052023

  • Result: Calibration met customer specification

  • Certificate available on request

  • Calibration validity: until 24 May 2024

Additional equipment

• QUINDOS version 2023

• I++ Simulator + QUINDOS bundle

• Additional CMM model

• Licence manager for add-on bundle

• Software licence transfer: subject to confirmation by Hexagon Peripherals and fixturing

• HP workstation PC with 2 monitors

• Kinematic fixturing:

  • Swift-Fix universal kinematic base (1)

  • Swift-Fix kinematic plates 300 × 300 × 16 mm (2)

• Ceramic reference sphere Ø30 mm (1) Styli, holders, adapters, and change hardware

• HR-X3-P changer ports (5)

• Stylus kit

• Special stylus holders (3)

• 8 × M5 + 8 × Ø2 mm stylus holder (1)

• M5/M2 stylus adapter (1)

• M2 5-way stylus holder (1)

• M2 stepped styli: 4 + 6

• M2 stylus R1 (1)

• Special Ø0.3 mm ruby styli (8)

• Special Ø1 mm ruby/carbide stylus (1)

• Ø1.5 mm Si3N4 stylus (1)

• Ø3 × 35 mm ruby stylus (1)

• Ø3 × 50 mm ruby stylus (1)

• Ø5 × 60 mm ruby stylus (1)

• Titanium extension (1)

• Rotary joint (1)

• Adjustable cubes (2)

• M5 cube (1)
