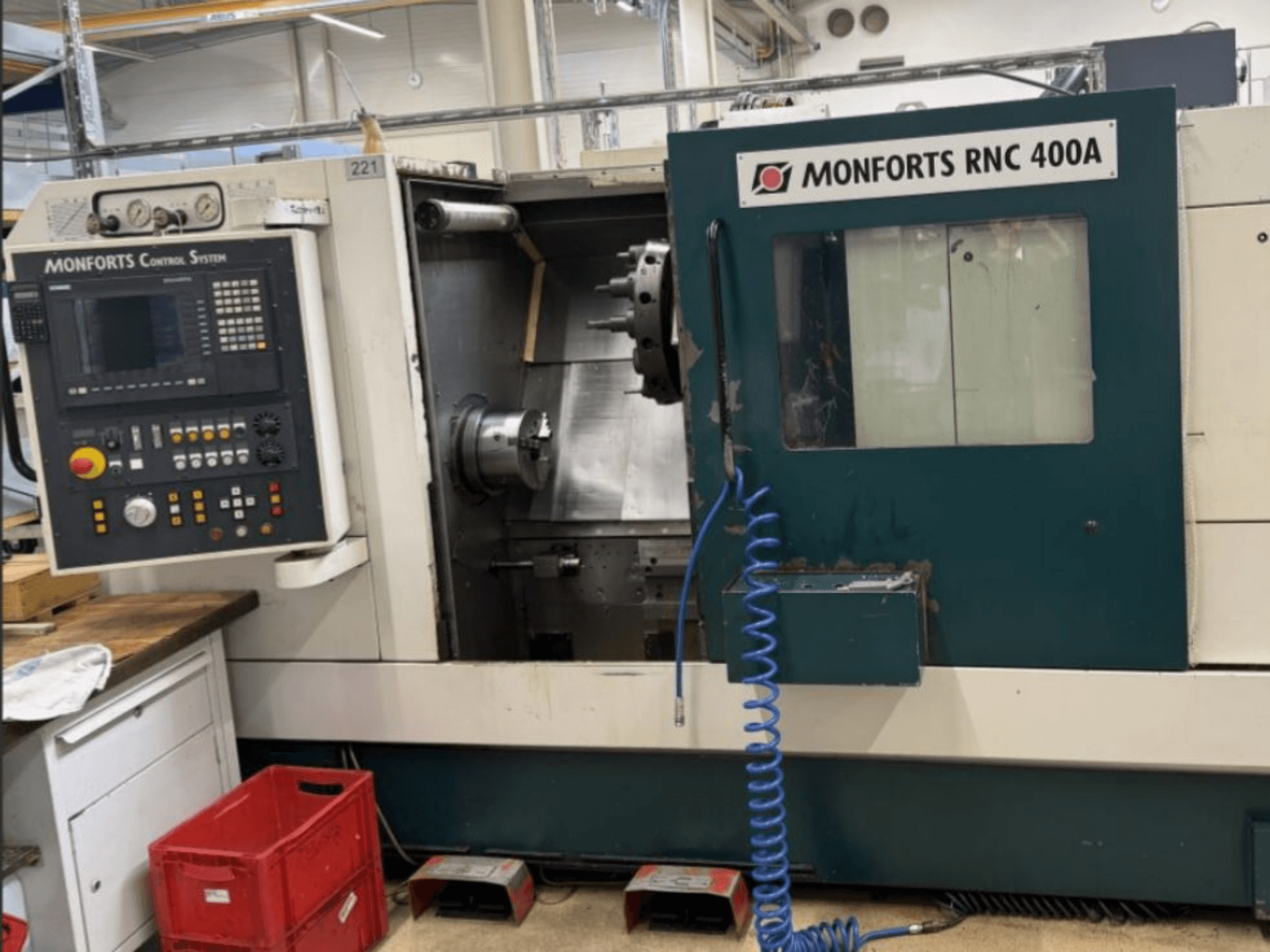

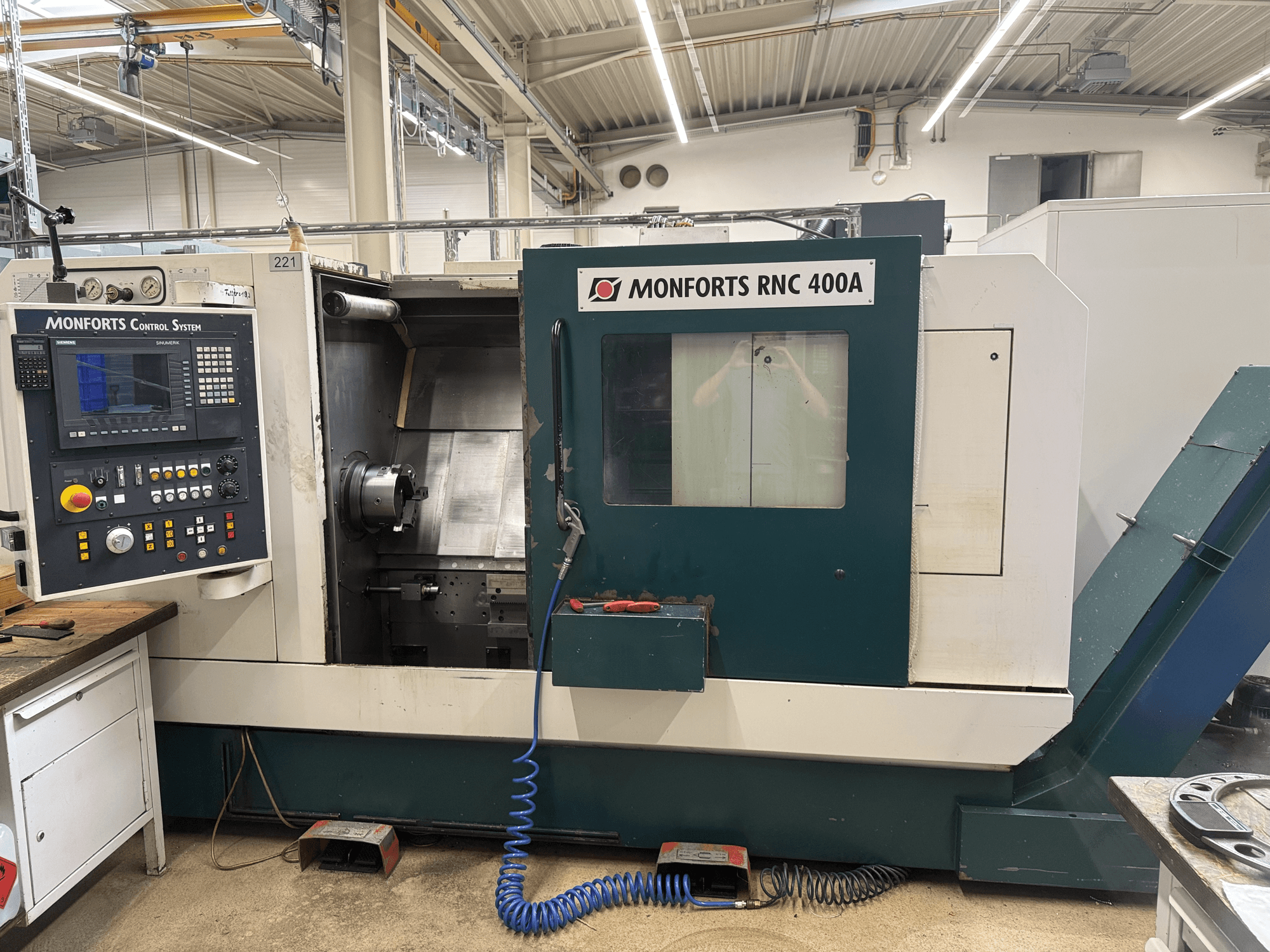

Horizontal turning machine manufactured in 2001. This Monforts RNC 400 A features a swing over bed of 410 mm and a turning length of 600 mm. It is equipped with a 12-position disc turret and a powerful three-phase induction motor with a speed range of 30-4000 rpm. If you are looking to get high-quality turning capabilities, consider the Monforts RNC 400 A machine we have for sale. Contact us for further details.
Overview
- brand: Monforts
- year: 2001
- MODEL: RNC 400 A
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand:
Technical Information - Monforts RNC 400 A
Dimensions
- Machine Weight: 6800 kg
Movement
- Number of Axes: 2
- X-axis Travel: 410 mm
- Z-axis Travel: 280 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 30 kW
- Spindle Speed: 4000 RPM
Additional Information
Swing over bed: 410 mm
Swing over radial slide: 280 mm
Turning length: 600 mm
Spindle bearing diameter: 130 mm
Spindle nose: DIN 55026 A6
Bar capacity/material clearance: 65 mm
Main drive: Three-phase induction motor (100% ED/40% ED), 20.5/30 kW
Max. torque: 500 Nm
Feed drive: Three-phase servo drives with electronic safety monitoring
Rapid traverse (X/Z): 24/24 m/min
Feed force (X/Z): 7.2/10.7 kN
Tailstock: On separate guideway, manual clamping, 900 mm travel, 90 mm quill stroke, 12,000 N force
Tool turret: 12-position disc turret, DIN 69880 / VDI 3425/2, 40 mm shaft diameter (VDI 40), directional logic and plane gear positioning
Hydraulics: Central pressure oil supply for hydrostatics and clamping; hydraulic hollow clamping device (max 65 mm)
Coolant system: 310 L tank, 3 bar, 40 L/min
Control and features: 256 kB memory (expandable to 1.5 MB), DIN 66025 programming, 2D/3D simulation, RS-232C serial interface, tool compensation (up to 600 tools), constant cutting speed, thread cutting/tapping
Construction: 60° slant bed, steel welded construction on reinforced concrete base with 3-point support; hydrostatic guides (X-axis)
Tool measurement setup
Chip conveyor interface (interface only)
Power supply: 3x400 V (+10%), 50 Hz, total connected load 20.5 kW (41 kVA)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
